| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T02_9000005106_35668cztM0_level2.evt | modeM0/AS1A09_029T02_9000005106_35668cztM0_level2_quad_clean.evt |
| Size (bytes) | 192,435,840 | 27,408,960 |
| Size | 183.5 MB | 26.1 MB |
| Events in quadrant A | 1,134,277 | 172,861 |
| Events in quadrant B | 1,311,940 | 176,697 |
| Events in quadrant C | 1,579,689 | 164,678 |
| Events in quadrant D | 1,654,049 | 159,549 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4567 | 2 |
| B | 0 | 5176 | 1 |
| C | 0 | 6029 | 1 |
| D | 0 | 6276 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2147 | 4 | 0.186306% |
| B | 2147 | 55 | 2.561714% |
| C | 2147 | 123 | 5.728924% |
| D | 2147 | 137 | 6.380997% |

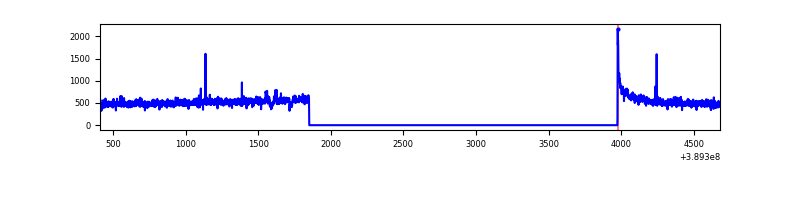

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4271 | 2148 | 1 | 1 | 0.02% | 0.05% |  |
| B | 4271 | 2148 | 35 | 35 | 0.82% | 1.63% |  |
| C | 4271 | 2148 | 104 | 104 | 2.44% | 4.84% |  |
| D | 4271 | 2148 | 100 | 100 | 2.34% | 4.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 65230 | 1171.19 | 267 | 262 | 55.5 |
| A | 15 | 169 | 23457 | 418.14 | 267 | 262 | 55.5 |
| A | 13 | 6 | 7775 | 135.44 | 267 | 262 | 55.5 |
| B | 5 | 255 | 134894 | 2574.82 | 266 | 260 | 52.3 |
| B | 5 | 172 | 87336 | 1665.29 | 266 | 260 | 52.3 |
| B | 5 | 200 | 28902 | 547.77 | 266 | 260 | 52.3 |
| C | 0 | 10 | 173572 | 2828.7 | 256 | 258 | 61.3 |
| C | 1 | 23 | 143209 | 2333.14 | 256 | 258 | 61.3 |
| C | 14 | 128 | 139777 | 2277.12 | 256 | 258 | 61.3 |
| D | 13 | 249 | 458390 | 7155.7 | 257 | 249 | 64.0 |
| D | 7 | 80 | 92117 | 1434.88 | 257 | 249 | 64.0 |
| D | 10 | 118 | 28707 | 444.49 | 257 | 249 | 64.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

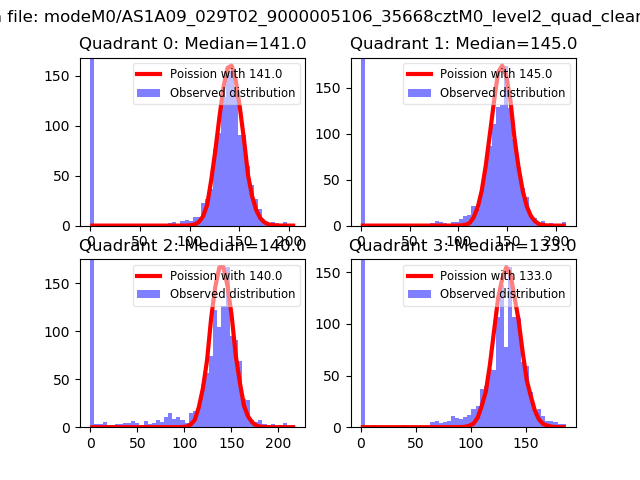

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

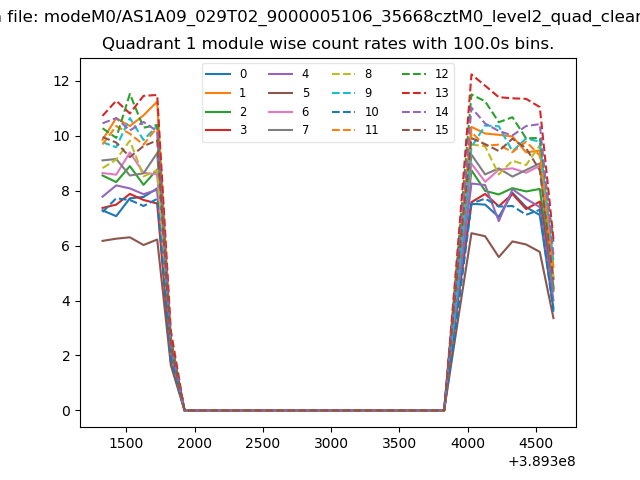

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

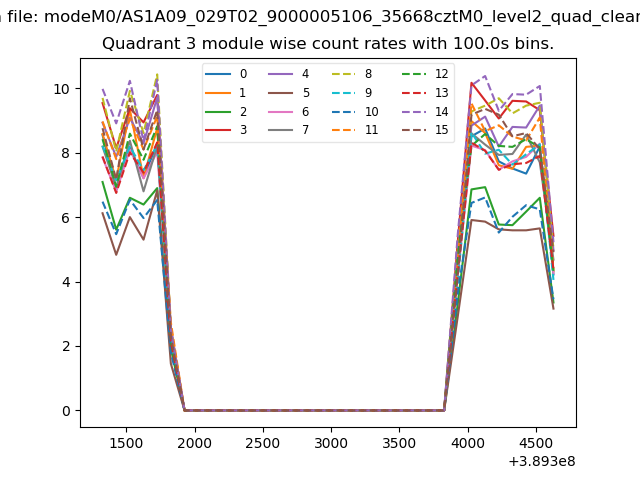

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

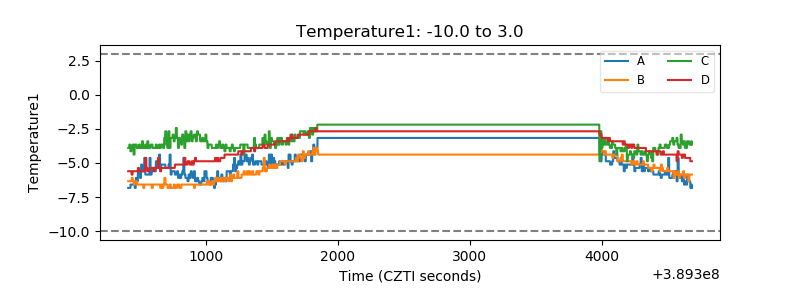

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

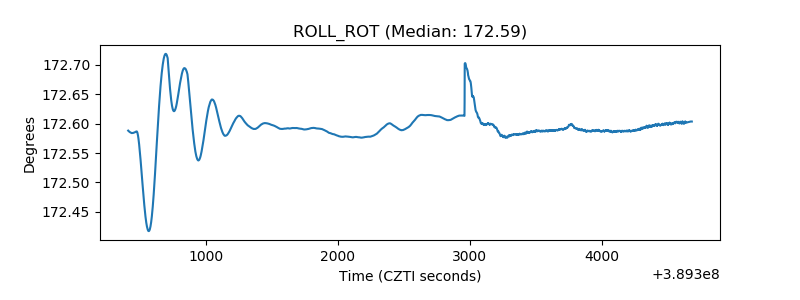

| _ROLL_ROT |  |

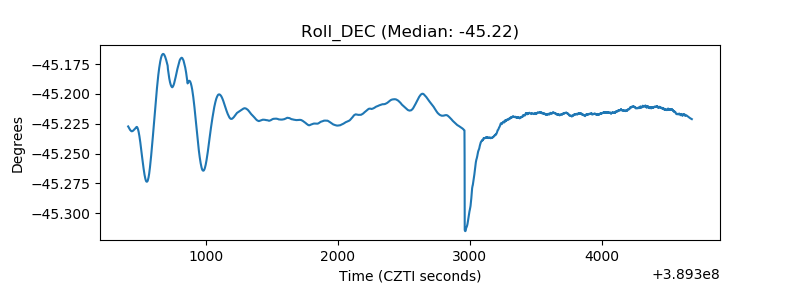

| _Roll_DEC |  |
