| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T03_9000005108_35676cztM0_level2.evt | modeM0/AS1A09_029T03_9000005108_35676cztM0_level2_quad_clean.evt |
| Size (bytes) | 155,537,280 | 22,501,440 |
| Size | 148.3 MB | 21.5 MB |
| Events in quadrant A | 1,000,626 | 139,544 |
| Events in quadrant B | 1,622,914 | 139,347 |
| Events in quadrant C | 1,038,702 | 138,335 |
| Events in quadrant D | 925,587 | 133,948 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4039 | 2 |
| B | 0 | 5972 | 1 |
| C | 0 | 4075 | 1 |
| D | 0 | 3851 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1768 | 11 | 0.622172% |
| B | 1768 | 214 | 12.104072% |
| C | 1768 | 37 | 2.092760% |
| D | 1768 | 14 | 0.791855% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3320 | 1769 | 6 | 6 | 0.18% | 0.34% |  |
| B | 3320 | 1769 | 130 | 130 | 3.92% | 7.35% |  |
| C | 3320 | 1769 | 28 | 28 | 0.84% | 1.58% |  |
| D | 3320 | 1769 | 7 | 7 | 0.21% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 61633 | 1327.89 | 218 | 214 | 46.3 |
| A | 7 | 16 | 50033 | 1077.1 | 218 | 214 | 46.3 |
| A | 15 | 169 | 36625 | 787.21 | 218 | 214 | 46.3 |
| B | 5 | 172 | 395967 | 9250.57 | 210 | 204 | 42.8 |
| B | 5 | 31 | 212646 | 4965.62 | 210 | 204 | 42.8 |
| B | 5 | 15 | 122416 | 2856.59 | 210 | 204 | 42.8 |
| C | 0 | 10 | 128848 | 2520.2 | 212 | 213 | 51.0 |
| C | 15 | 214 | 77274 | 1509.77 | 212 | 213 | 51.0 |
| C | 0 | 239 | 3188 | 58.29 | 212 | 213 | 51.0 |
| D | 13 | 249 | 48095 | 878.7 | 214 | 208 | 54.5 |
| D | 10 | 199 | 24025 | 437.03 | 214 | 208 | 54.5 |
| D | 2 | 249 | 11916 | 214.83 | 214 | 208 | 54.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

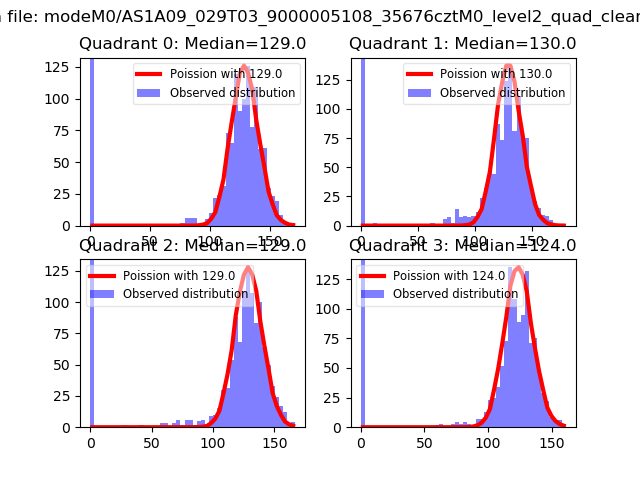

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

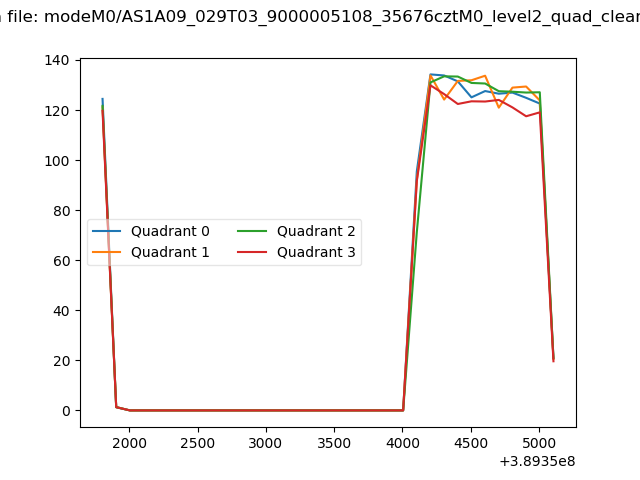

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
