| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T03_9000005108_35677cztM0_level2.evt | modeM0/AS1A09_029T03_9000005108_35677cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,738,240 | 86,227,200 |
| Size | 415.6 MB | 82.2 MB |
| Events in quadrant A | 2,765,115 | 567,717 |
| Events in quadrant B | 4,104,768 | 563,152 |
| Events in quadrant C | 2,870,643 | 558,654 |
| Events in quadrant D | 3,082,731 | 537,165 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11574 | 4 |
| B | 0 | 15808 | 3 |
| C | 0 | 11902 | 1 |
| D | 0 | 12766 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5485 | 13 | 0.237010% |
| B | 5485 | 252 | 4.594348% |
| C | 5486 | 59 | 1.075465% |
| D | 5485 | 137 | 2.497721% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7159 | 5487 | 5 | 5 | 0.07% | 0.09% |  |
| B | 7159 | 5487 | 170 | 170 | 2.37% | 3.10% |  |
| C | 7159 | 5487 | 40 | 40 | 0.56% | 0.73% |  |
| D | 7159 | 5487 | 128 | 128 | 1.79% | 2.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 118237 | 903.29 | 639 | 627 | 130.2 |
| A | 15 | 169 | 117290 | 896.01 | 639 | 627 | 130.2 |
| A | 7 | 16 | 50013 | 379.3 | 639 | 627 | 130.2 |
| B | 5 | 172 | 725896 | 6016.62 | 622 | 606 | 120.5 |
| B | 5 | 31 | 671439 | 5564.87 | 622 | 606 | 120.5 |
| B | 5 | 255 | 78542 | 646.52 | 622 | 606 | 120.5 |
| C | 15 | 214 | 228241 | 1598.26 | 610 | 613 | 142.4 |
| C | 0 | 10 | 202094 | 1414.67 | 610 | 613 | 142.4 |
| C | 9 | 187 | 34757 | 239.74 | 610 | 613 | 142.4 |
| D | 10 | 118 | 236746 | 1563.81 | 615 | 596 | 151.0 |
| D | 8 | 230 | 114160 | 752.03 | 615 | 596 | 151.0 |
| D | 13 | 249 | 82365 | 541.48 | 615 | 596 | 151.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

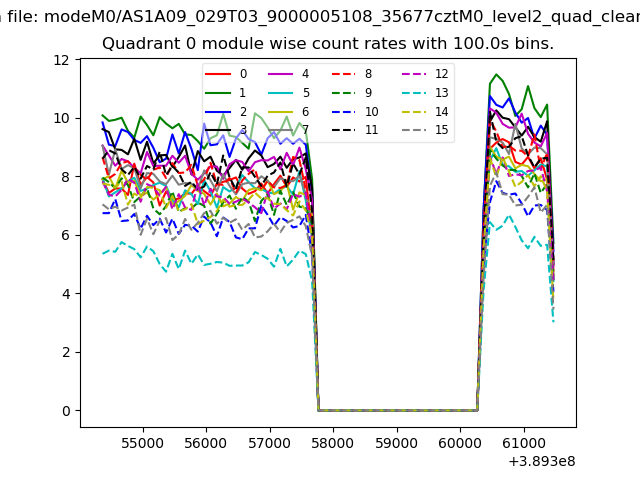

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

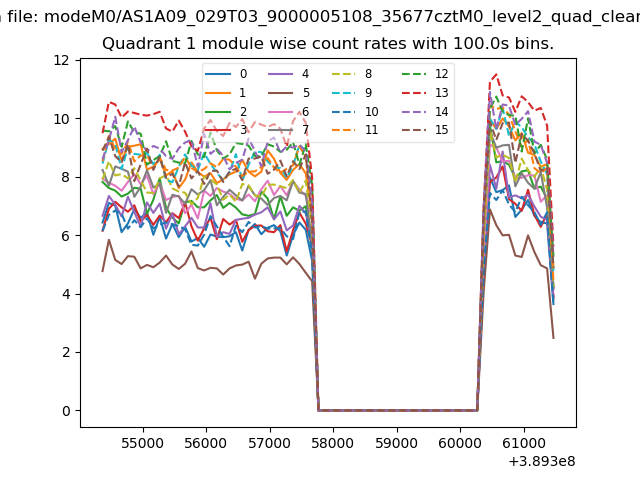

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

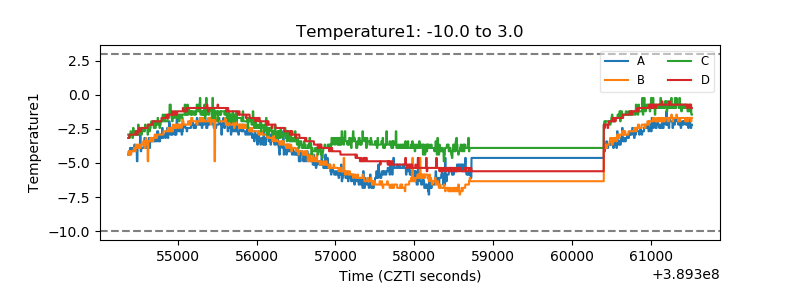

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

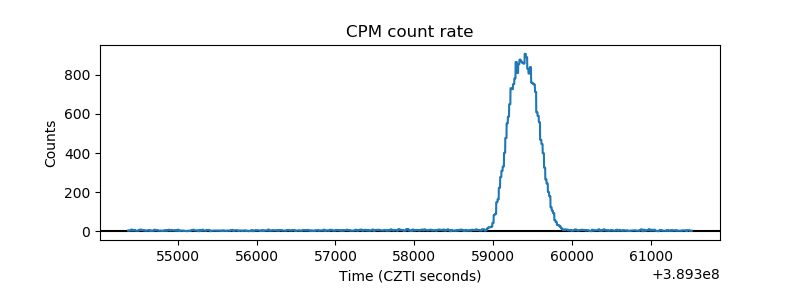

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

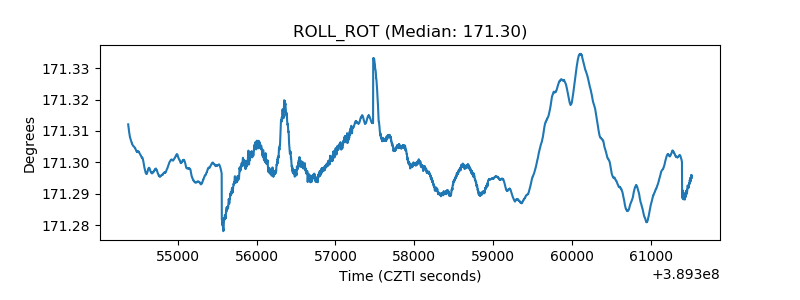

| _ROLL_ROT |  |

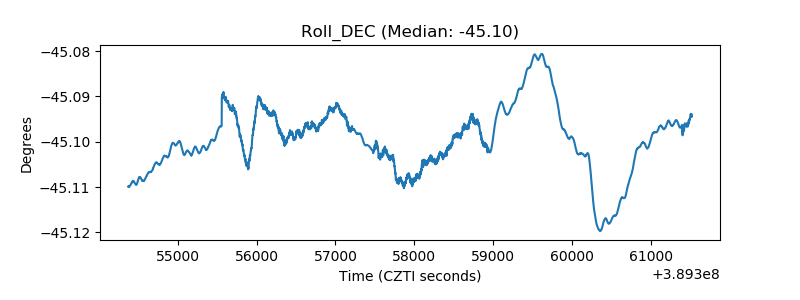

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
