| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T03_9000005108_35683cztM0_level2.evt | modeM0/AS1A09_029T03_9000005108_35683cztM0_level2_quad_clean.evt |
| Size (bytes) | 83,937,600 | 20,445,120 |
| Size | 80.0 MB | 19.5 MB |
| Events in quadrant A | 526,466 | 141,346 |
| Events in quadrant B | 696,923 | 138,625 |
| Events in quadrant C | 622,089 | 132,884 |
| Events in quadrant D | 626,049 | 129,331 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2164 | 1 |
| B | 0 | 2667 | 1 |
| C | 0 | 2430 | 1 |
| D | 0 | 2500 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 991 | 3 | 0.302725% |
| B | 991 | 71 | 7.164480% |
| C | 991 | 43 | 4.339051% |
| D | 991 | 31 | 3.128153% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 991 | 991 | 0 | 0 | 0.00% | 0.00% |  |
| B | 991 | 991 | 56 | 56 | 5.65% | 5.65% |  |
| C | 991 | 991 | 36 | 36 | 3.63% | 3.63% |  |
| D | 991 | 991 | 33 | 33 | 3.33% | 3.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 53818 | 2067.02 | 119 | 117 | 26.0 |
| A | 13 | 6 | 5388 | 202.89 | 119 | 117 | 26.0 |
| A | 7 | 16 | 2346 | 85.8 | 119 | 117 | 26.0 |
| B | 5 | 255 | 209013 | 8544.44 | 116 | 113 | 24.4 |
| B | 5 | 172 | 15435 | 626.7 | 116 | 113 | 24.4 |
| B | 5 | 31 | 4319 | 172.03 | 116 | 113 | 24.4 |
| C | 0 | 10 | 121067 | 4479.56 | 109 | 110 | 27.0 |
| C | 15 | 214 | 44078 | 1628.32 | 109 | 110 | 27.0 |
| C | 15 | 208 | 27672 | 1020.74 | 109 | 110 | 27.0 |
| D | 10 | 118 | 133634 | 4582.39 | 110 | 107 | 29.1 |
| D | 10 | 199 | 20357 | 694.94 | 110 | 107 | 29.1 |
| D | 2 | 153 | 13425 | 457.05 | 110 | 107 | 29.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

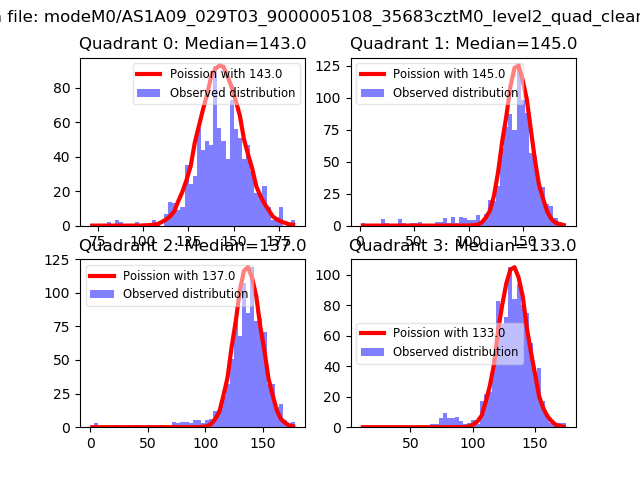

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

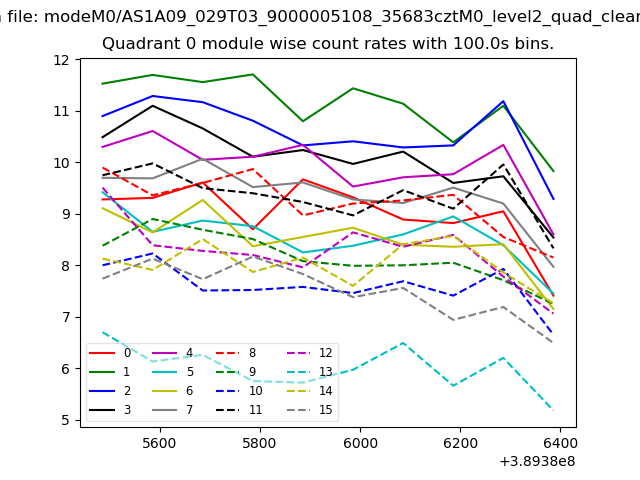

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

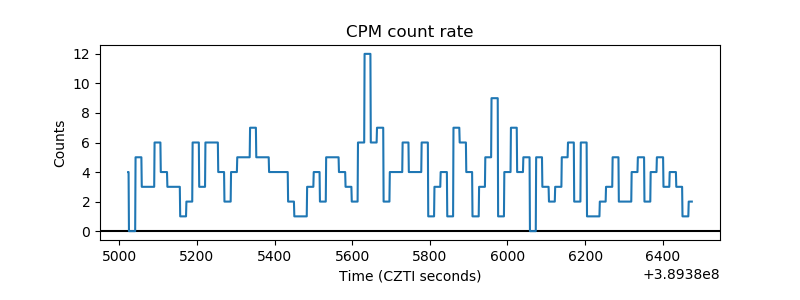

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

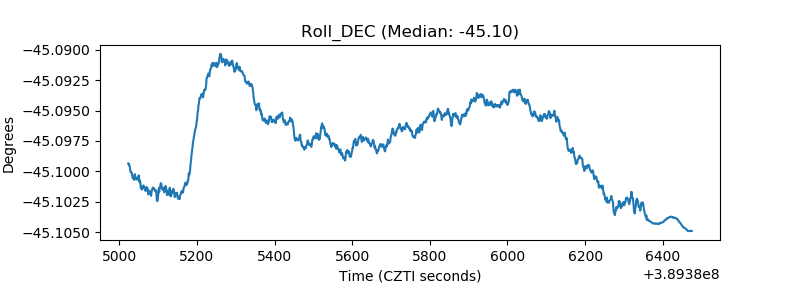

| _Roll_DEC |  |

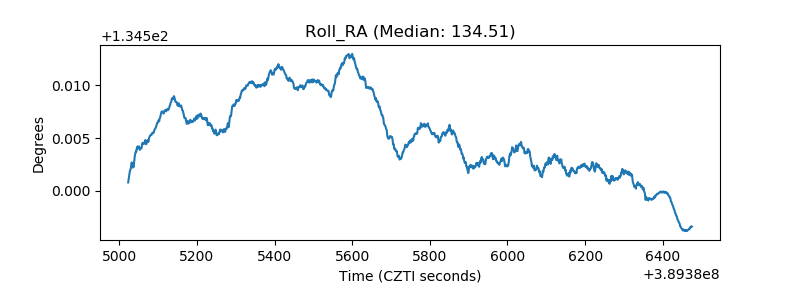

| _Roll_RA |  |
| Veto Counter |  |
