| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T04_9000005110_35683cztM0_level2.evt | modeM0/AS1A09_029T04_9000005110_35683cztM0_level2_quad_clean.evt |
| Size (bytes) | 294,013,440 | 35,686,080 |
| Size | 280.4 MB | 34.0 MB |
| Events in quadrant A | 1,732,422 | 212,497 |
| Events in quadrant B | 2,964,475 | 212,283 |
| Events in quadrant C | 1,893,475 | 206,889 |
| Events in quadrant D | 2,069,077 | 194,784 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7422 | 2 |
| B | 0 | 11112 | 1 |
| C | 0 | 7846 | 1 |
| D | 0 | 8664 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3580 | 6 | 0.167598% |
| B | 3580 | 451 | 12.597765% |
| C | 3580 | 15 | 0.418994% |
| D | 3580 | 85 | 2.374302% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5732 | 3581 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5732 | 3580 | 357 | 357 | 6.23% | 9.97% |  |
| C | 5732 | 3581 | 11 | 11 | 0.19% | 0.31% |  |
| D | 5732 | 3581 | 66 | 66 | 1.15% | 1.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 81747 | 966.07 | 418 | 410 | 84.2 |
| A | 7 | 16 | 27917 | 326.71 | 418 | 410 | 84.2 |
| A | 13 | 6 | 8726 | 98.77 | 418 | 410 | 84.2 |
| B | 5 | 172 | 1265930 | 16635.28 | 394 | 384 | 76.1 |
| B | 5 | 255 | 87408 | 1143.91 | 394 | 384 | 76.1 |
| B | 0 | 155 | 25439 | 329.34 | 394 | 384 | 76.1 |
| C | 15 | 214 | 148915 | 1566.53 | 403 | 405 | 94.8 |
| C | 0 | 239 | 93853 | 985.72 | 403 | 405 | 94.8 |
| C | 0 | 10 | 61834 | 647.97 | 403 | 405 | 94.8 |
| D | 13 | 249 | 234848 | 2398.74 | 397 | 387 | 97.7 |
| D | 10 | 118 | 187425 | 1913.56 | 397 | 387 | 97.7 |
| D | 1 | 52 | 49242 | 499.83 | 397 | 387 | 97.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

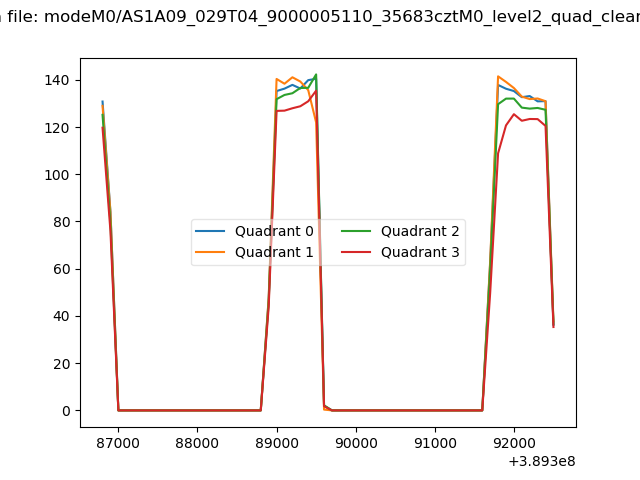

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

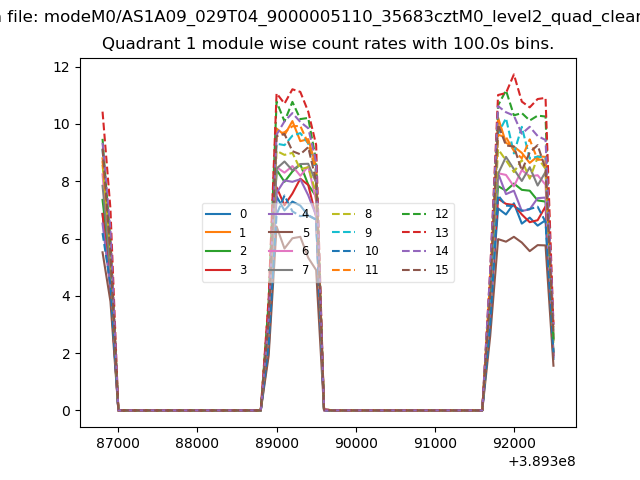

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

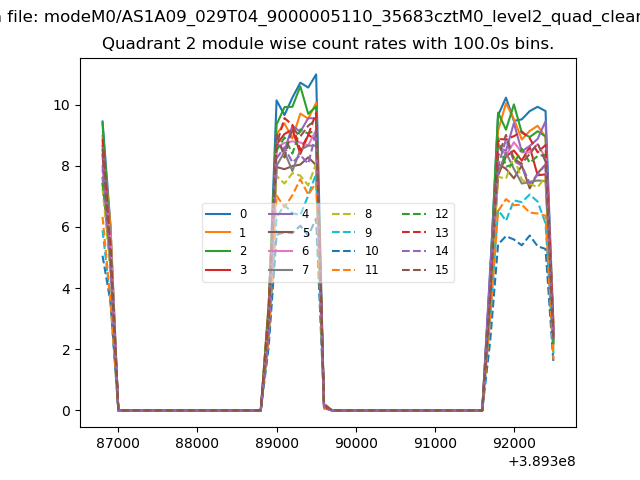

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

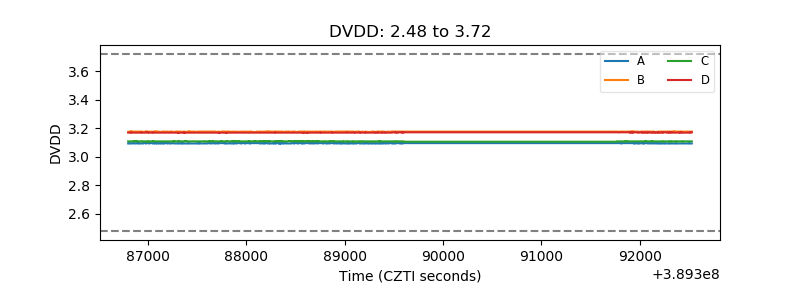

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

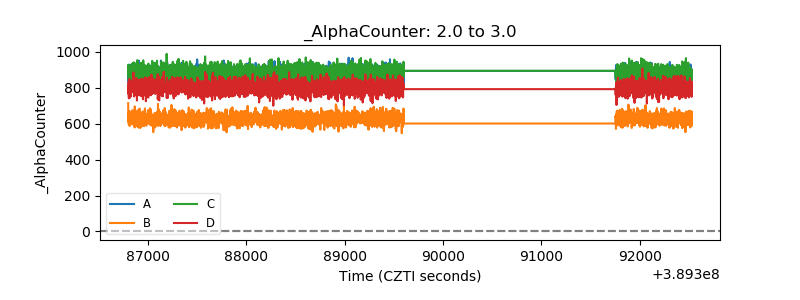

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

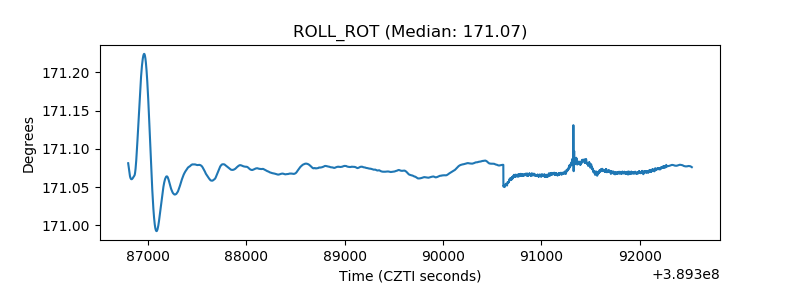

| _ROLL_ROT |  |
| _Roll_DEC |  |

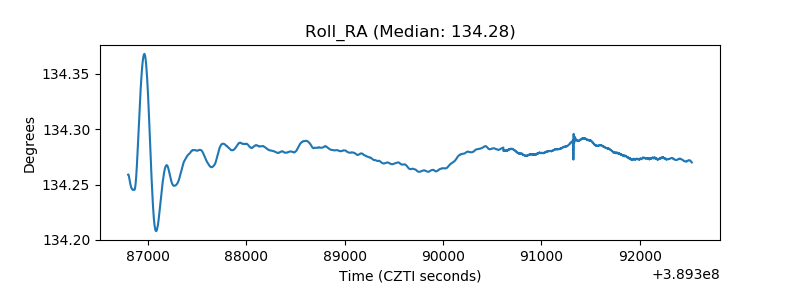

| _Roll_RA |  |
| Veto Counter |  |
