| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T04_9000005110_35684cztM0_level2.evt | modeM0/AS1A09_029T04_9000005110_35684cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,543,040 | 59,325,120 |
| Size | 397.2 MB | 56.6 MB |
| Events in quadrant A | 2,361,774 | 375,195 |
| Events in quadrant B | 2,962,114 | 376,964 |
| Events in quadrant C | 2,481,953 | 370,117 |
| Events in quadrant D | 4,473,509 | 327,582 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10194 | 3 |
| B | 0 | 12001 | 2 |
| C | 0 | 10402 | 2 |
| D | 0 | 16717 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4936 | 8 | 0.162075% |
| B | 4936 | 169 | 3.423825% |
| C | 4936 | 22 | 0.445705% |
| D | 4936 | 859 | 17.402755% |

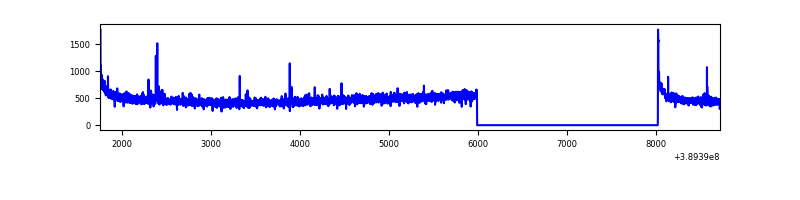

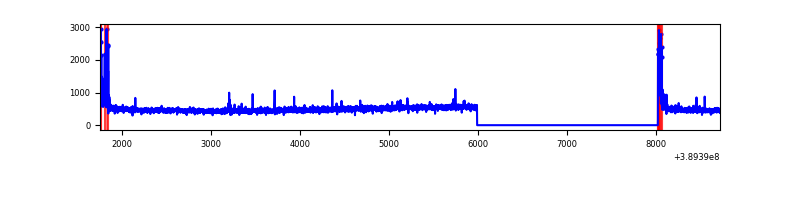

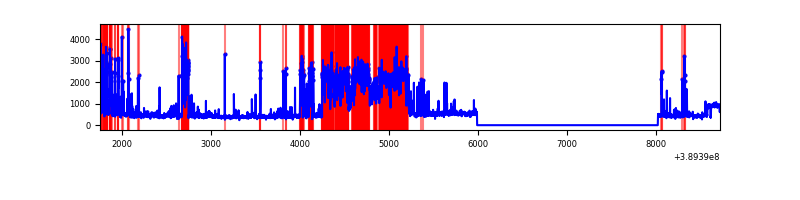

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6968 | 4937 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6968 | 4937 | 124 | 124 | 1.78% | 2.51% |  |
| C | 6968 | 4937 | 21 | 21 | 0.30% | 0.43% |  |
| D | 6968 | 4937 | 737 | 737 | 10.58% | 14.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 136151 | 1182.96 | 565 | 556 | 114.6 |
| A | 13 | 6 | 20450 | 173.56 | 565 | 556 | 114.6 |
| A | 7 | 16 | 20419 | 173.29 | 565 | 556 | 114.6 |
| B | 5 | 172 | 421245 | 3927.12 | 558 | 544 | 107.1 |
| B | 5 | 255 | 205576 | 1913.91 | 558 | 544 | 107.1 |
| B | 0 | 155 | 41385 | 381.24 | 558 | 544 | 107.1 |
| C | 15 | 214 | 209689 | 1638.59 | 547 | 550 | 127.6 |
| C | 0 | 10 | 122781 | 957.67 | 547 | 550 | 127.6 |
| C | 9 | 187 | 7547 | 54.82 | 547 | 550 | 127.6 |
| D | 13 | 249 | 1868048 | 14801.83 | 510 | 496 | 126.2 |
| D | 10 | 118 | 200118 | 1582.16 | 510 | 496 | 126.2 |
| D | 12 | 128 | 178657 | 1412.07 | 510 | 496 | 126.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

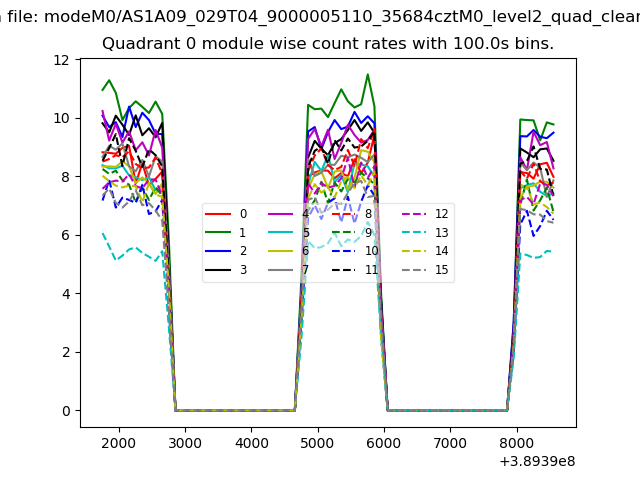

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

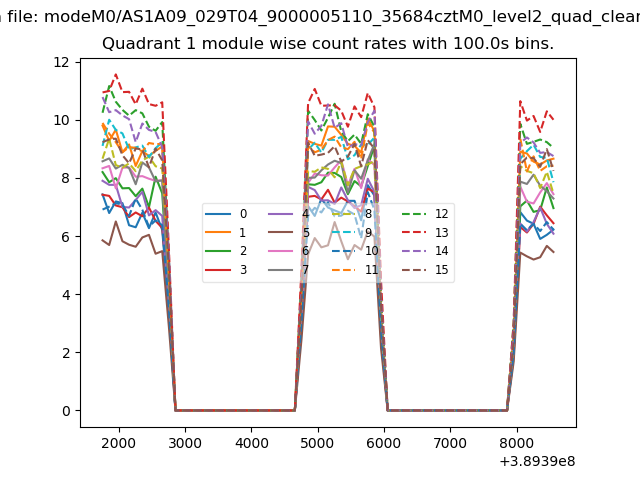

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

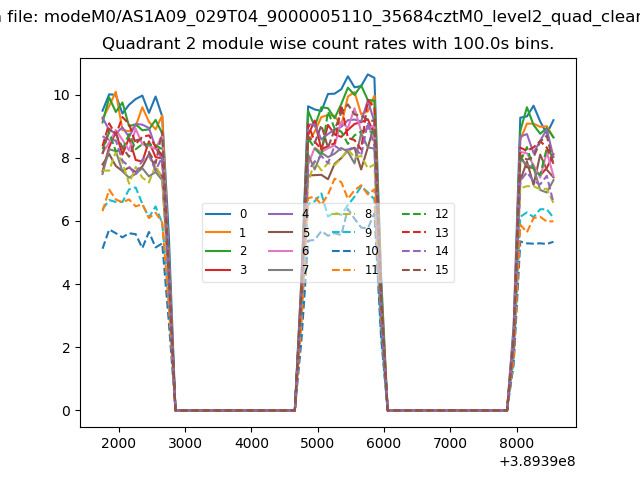

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

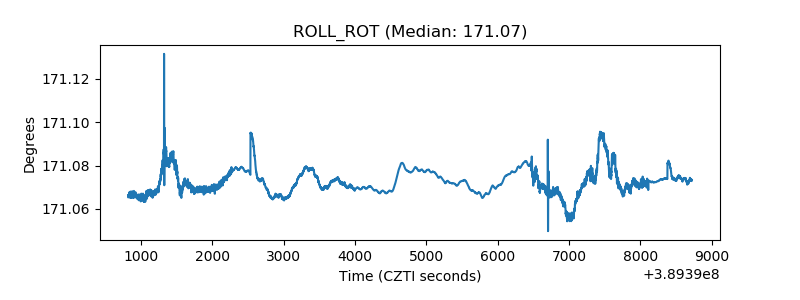

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
