| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T04_9000005110_35686cztM0_level2.evt | modeM0/AS1A09_029T04_9000005110_35686cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,113,468,480 | 144,671,040 |
| Size | 1.0 GB | 138.0 MB |
| Events in quadrant A | 6,589,051 | 877,000 |
| Events in quadrant B | 9,590,833 | 871,523 |
| Events in quadrant C | 6,984,363 | 866,738 |
| Events in quadrant D | 9,613,986 | 801,696 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 286 | 0 |
| B | 0 | 286 | 0 |
| C | 0 | 286 | 0 |
| D | 0 | 286 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28586 | 5 |
| B | 0 | 37637 | 4 |
| C | 0 | 29266 | 4 |
| D | 0 | 38178 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13960 | 18 | 0.128940% |
| B | 13961 | 962 | 6.890624% |
| C | 13961 | 40 | 0.286512% |
| D | 13961 | 1025 | 7.341881% |

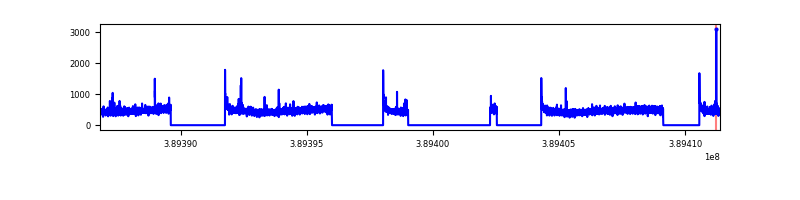

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 24585 | 13965 | 1 | 1 | 0.00% | 0.01% |  |
| B | 24585 | 13964 | 747 | 747 | 3.04% | 5.35% |  |
| C | 24585 | 13966 | 32 | 32 | 0.13% | 0.23% |  |
| D | 24585 | 13966 | 880 | 880 | 3.58% | 6.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 325003 | 1002.86 | 1602 | 1571 | 322.5 |
| A | 13 | 6 | 37201 | 110.48 | 1602 | 1571 | 322.5 |
| A | 7 | 16 | 35610 | 105.54 | 1602 | 1571 | 322.5 |
| B | 5 | 172 | 2857016 | 9736.44 | 1553 | 1511 | 293.3 |
| B | 5 | 255 | 353768 | 1201.09 | 1553 | 1511 | 293.3 |
| B | 0 | 155 | 67871 | 226.27 | 1553 | 1511 | 293.3 |
| C | 15 | 214 | 583807 | 1632.21 | 1548 | 1559 | 356.7 |
| C | 0 | 10 | 216185 | 601.66 | 1548 | 1559 | 356.7 |
| C | 0 | 239 | 103250 | 285.07 | 1548 | 1559 | 356.7 |
| D | 13 | 249 | 2712082 | 7346.42 | 1508 | 1464 | 369.0 |
| D | 10 | 118 | 215960 | 581.33 | 1508 | 1464 | 369.0 |
| D | 2 | 31 | 214760 | 578.08 | 1508 | 1464 | 369.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

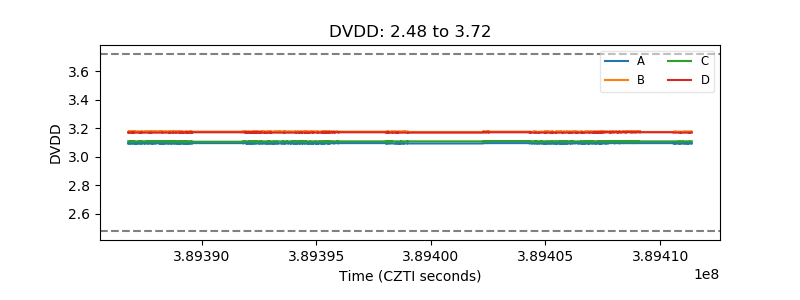

| D_VDD |  |

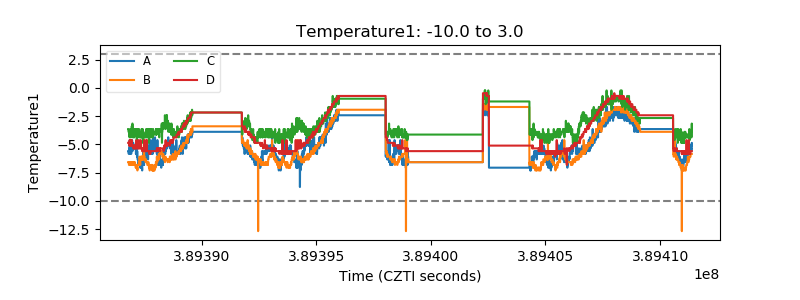

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

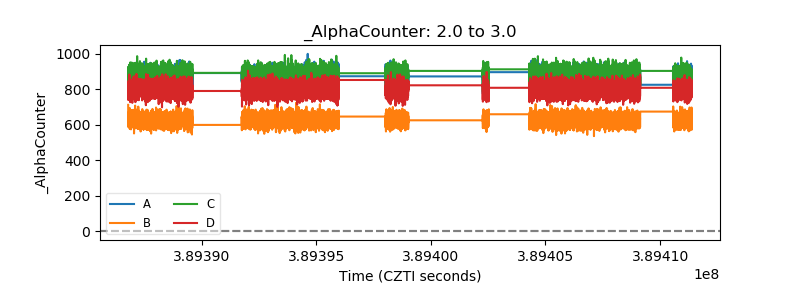

| Alpha Counter |  |

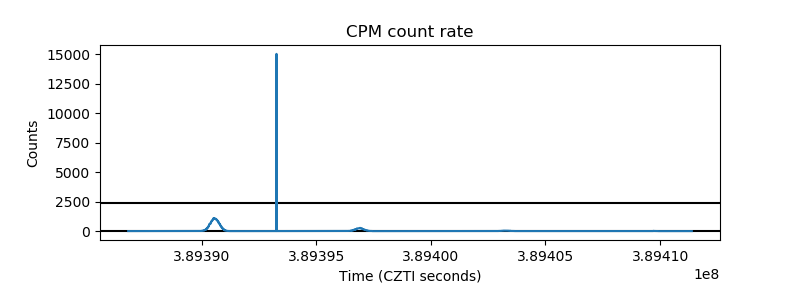

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

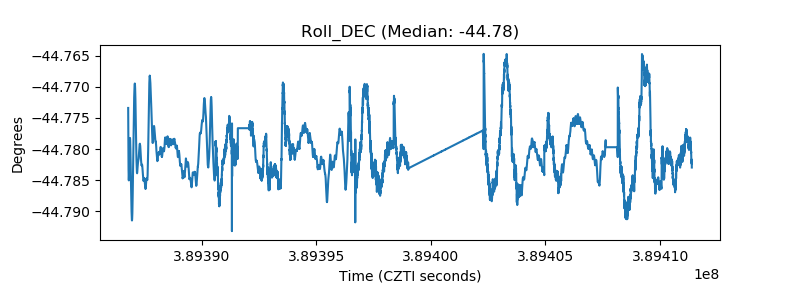

| _Roll_DEC |  |

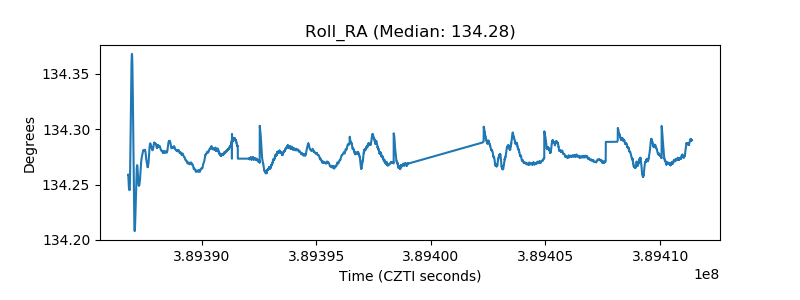

| _Roll_RA |  |
| Veto Counter |  |
