| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_142T03_9000005114_35700cztM0_level2.evt | modeM0/AS1A09_142T03_9000005114_35700cztM0_level2_quad_clean.evt |
| Size (bytes) | 377,962,560 | 67,210,560 |
| Size | 360.5 MB | 64.1 MB |
| Events in quadrant A | 2,572,723 | 406,677 |
| Events in quadrant B | 2,863,923 | 417,573 |
| Events in quadrant C | 2,875,103 | 419,046 |
| Events in quadrant D | 2,758,018 | 404,442 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11323 | 3 |
| B | 0 | 12108 | 2 |
| C | 0 | 11953 | 2 |
| D | 0 | 12214 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 35 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5538 | 8 | 0.144456% |
| B | 5538 | 50 | 0.902853% |
| C | 5538 | 76 | 1.372337% |
| D | 5538 | 74 | 1.336222% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9003 | 5540 | 1 | 1 | 0.01% | 0.02% |  |
| B | 9003 | 5540 | 28 | 28 | 0.31% | 0.51% |  |
| C | 9003 | 5540 | 54 | 54 | 0.60% | 0.97% |  |
| D | 9003 | 5540 | 62 | 62 | 0.69% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 142580 | 1121.65 | 624 | 611 | 126.6 |
| A | 10 | 255 | 11577 | 86.64 | 624 | 611 | 126.6 |
| A | 3 | 137 | 6669 | 47.86 | 624 | 611 | 126.6 |
| B | 5 | 172 | 289496 | 2411.32 | 621 | 604 | 119.8 |
| B | 10 | 244 | 90521 | 750.52 | 621 | 604 | 119.8 |
| B | 5 | 255 | 28742 | 234.86 | 621 | 604 | 119.8 |
| C | 0 | 10 | 238757 | 1678.03 | 612 | 617 | 141.9 |
| C | 15 | 214 | 232897 | 1636.74 | 612 | 617 | 141.9 |
| C | 4 | 254 | 8021 | 52.17 | 612 | 617 | 141.9 |
| D | 2 | 153 | 188549 | 1282.71 | 608 | 593 | 146.5 |
| D | 13 | 249 | 106010 | 719.42 | 608 | 593 | 146.5 |
| D | 12 | 6 | 73225 | 495.68 | 608 | 593 | 146.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

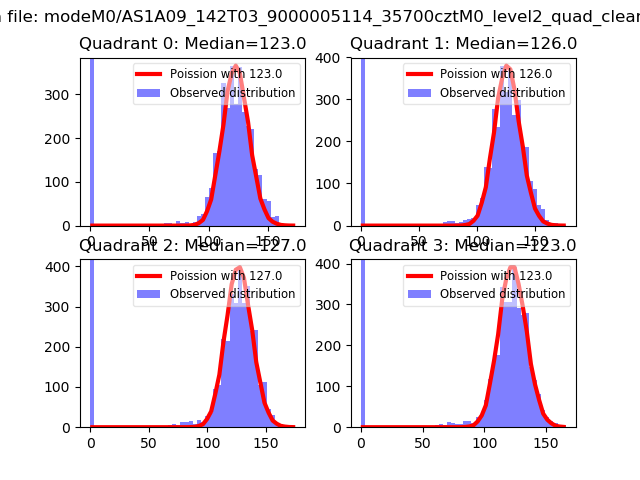

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

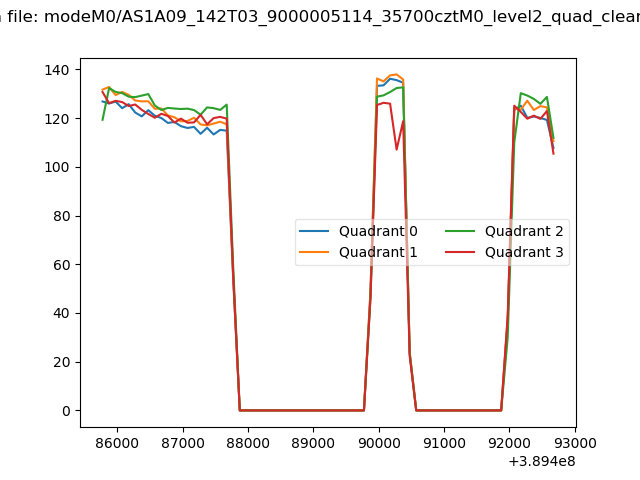

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

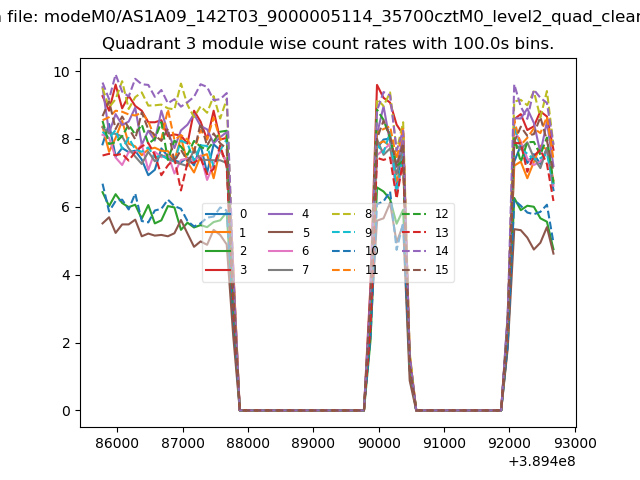

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

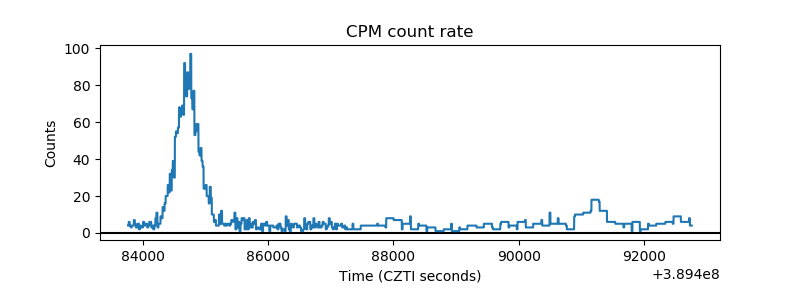

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

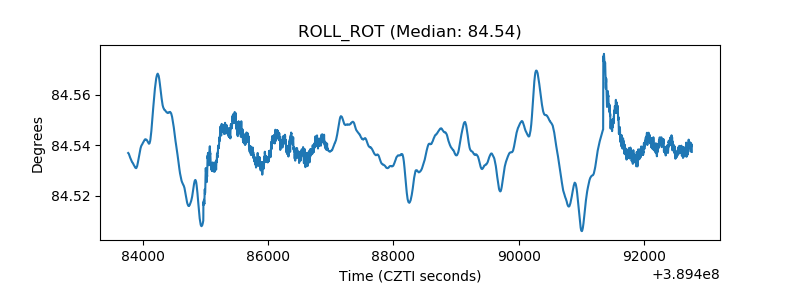

| _ROLL_ROT |  |
| _Roll_DEC |  |

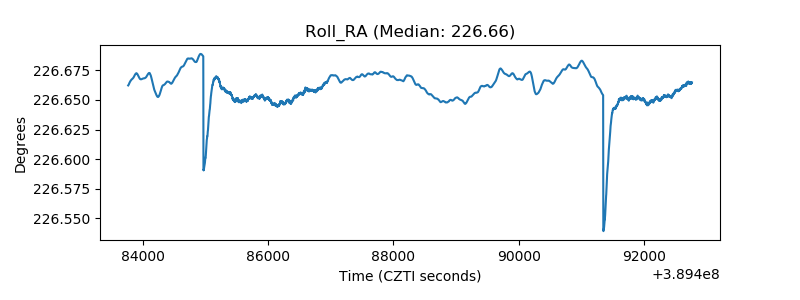

| _Roll_RA |  |
| Veto Counter |  |
