| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_142T03_9000005114_35701cztM0_level2.evt | modeM0/AS1A09_142T03_9000005114_35701cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,055,680 | 85,769,280 |
| Size | 449.2 MB | 81.8 MB |
| Events in quadrant A | 3,037,633 | 535,029 |
| Events in quadrant B | 3,711,284 | 543,304 |
| Events in quadrant C | 3,417,981 | 545,087 |
| Events in quadrant D | 3,659,283 | 522,250 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13244 | 3 |
| B | 0 | 15180 | 2 |
| C | 0 | 14106 | 2 |
| D | 0 | 15359 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6473 | 8 | 0.123590% |
| B | 6473 | 74 | 1.143210% |
| C | 6473 | 86 | 1.328596% |
| D | 6473 | 139 | 2.147381% |

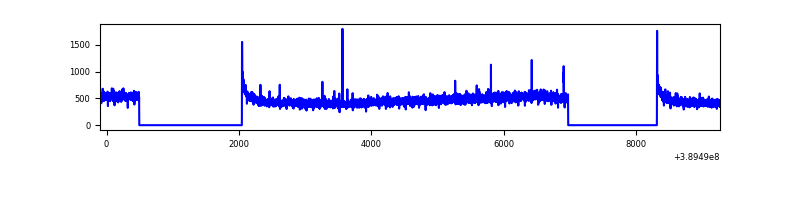

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9367 | 6475 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9367 | 6475 | 43 | 43 | 0.46% | 0.66% |  |
| C | 9367 | 6475 | 68 | 68 | 0.73% | 1.05% |  |
| D | 9367 | 6475 | 124 | 124 | 1.32% | 1.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 157545 | 1052.29 | 741 | 728 | 149.0 |
| A | 3 | 137 | 7901 | 48.13 | 741 | 728 | 149.0 |
| A | 10 | 255 | 6337 | 37.64 | 741 | 728 | 149.0 |
| B | 5 | 172 | 439489 | 3103.35 | 734 | 713 | 141.4 |
| B | 10 | 244 | 309559 | 2184.39 | 734 | 713 | 141.4 |
| B | 5 | 255 | 35927 | 249.06 | 734 | 713 | 141.4 |
| C | 0 | 10 | 278713 | 1634.52 | 728 | 733 | 170.1 |
| C | 15 | 214 | 271422 | 1591.65 | 728 | 733 | 170.1 |
| C | 0 | 207 | 30034 | 172.29 | 728 | 733 | 170.1 |
| D | 13 | 249 | 482893 | 2753.95 | 721 | 700 | 175.1 |
| D | 2 | 153 | 195880 | 1114.73 | 721 | 700 | 175.1 |
| D | 12 | 6 | 75600 | 427.78 | 721 | 700 | 175.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

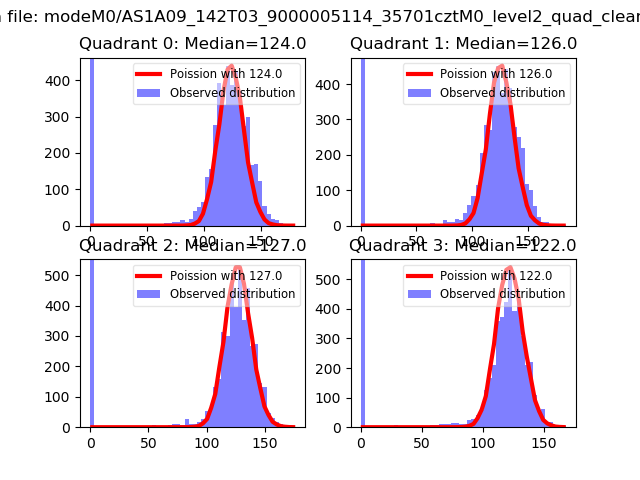

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

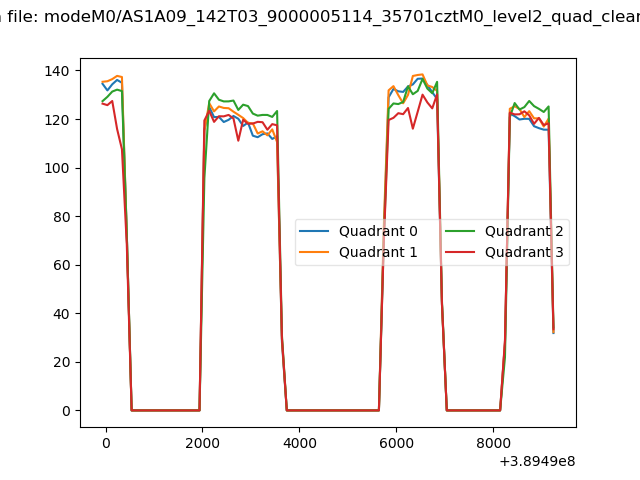

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

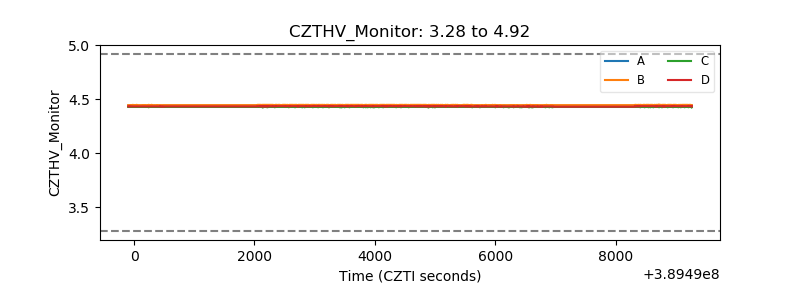

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

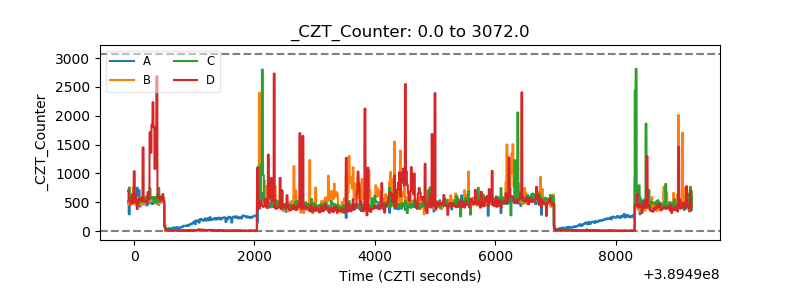

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

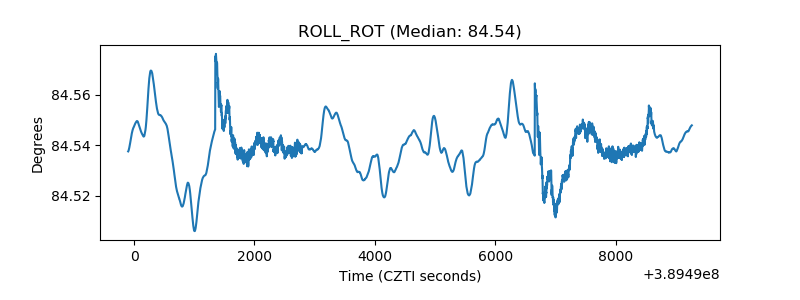

| _ROLL_ROT |  |
| _Roll_DEC |  |

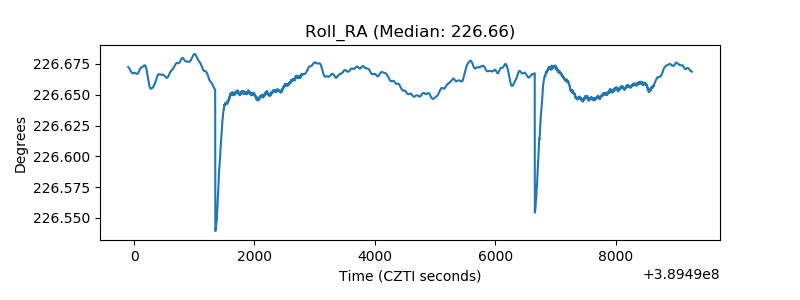

| _Roll_RA |  |
| Veto Counter |  |
