| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T01_9000005116_35711cztM0_level2.evt | modeM0/AS1A09_029T01_9000005116_35711cztM0_level2_quad_clean.evt |
| Size (bytes) | 418,832,640 | 67,584,960 |
| Size | 399.4 MB | 64.5 MB |
| Events in quadrant A | 2,527,146 | 439,275 |
| Events in quadrant B | 3,554,749 | 438,290 |
| Events in quadrant C | 3,002,944 | 414,518 |
| Events in quadrant D | 3,258,845 | 402,888 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10601 | 3 |
| B | 0 | 13708 | 2 |
| C | 0 | 11906 | 2 |
| D | 0 | 12998 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5012 | 7 | 0.139665% |
| B | 5012 | 443 | 8.838787% |
| C | 5012 | 185 | 3.691141% |
| D | 5012 | 130 | 2.593775% |

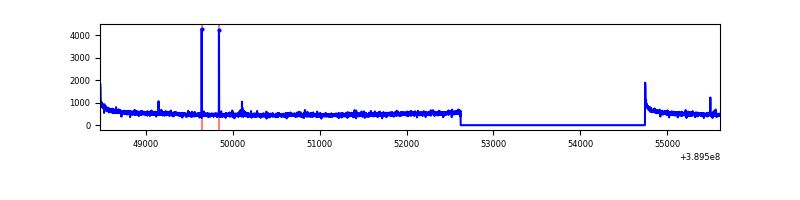

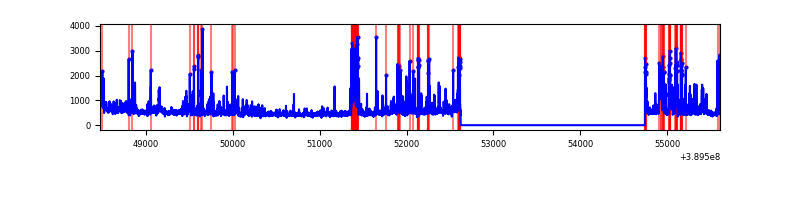

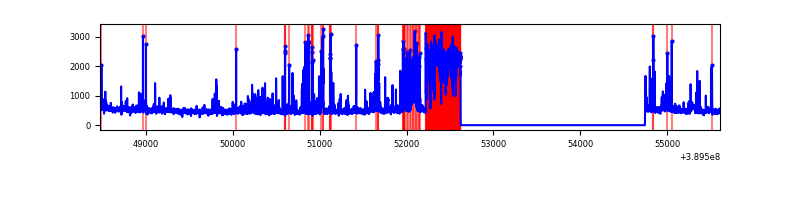

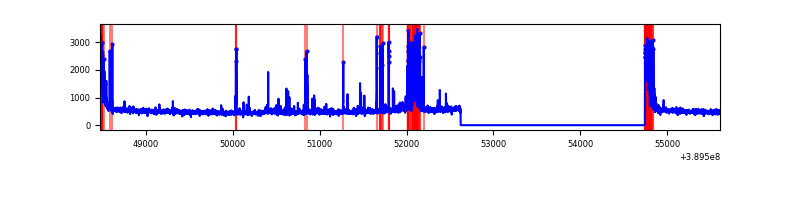

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7133 | 5013 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7133 | 5013 | 362 | 362 | 5.08% | 7.22% |  |
| C | 7133 | 5013 | 152 | 152 | 2.13% | 3.03% |  |
| D | 7133 | 5013 | 131 | 131 | 1.84% | 2.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 146371 | 1191.52 | 606 | 597 | 122.3 |
| A | 7 | 16 | 16356 | 128.81 | 606 | 597 | 122.3 |
| A | 10 | 255 | 12277 | 95.47 | 606 | 597 | 122.3 |
| B | 5 | 172 | 1158077 | 10687.83 | 571 | 558 | 108.3 |
| B | 5 | 255 | 83633 | 767.06 | 571 | 558 | 108.3 |
| B | 15 | 85 | 20433 | 183.51 | 571 | 558 | 108.3 |
| C | 0 | 10 | 332648 | 2544.5 | 562 | 566 | 130.5 |
| C | 9 | 187 | 258518 | 1976.49 | 562 | 566 | 130.5 |
| C | 15 | 214 | 208972 | 1596.86 | 562 | 566 | 130.5 |
| D | 1 | 52 | 493936 | 3548.38 | 568 | 554 | 139.0 |
| D | 12 | 6 | 306454 | 2200.02 | 568 | 554 | 139.0 |
| D | 13 | 249 | 86304 | 616.71 | 568 | 554 | 139.0 |

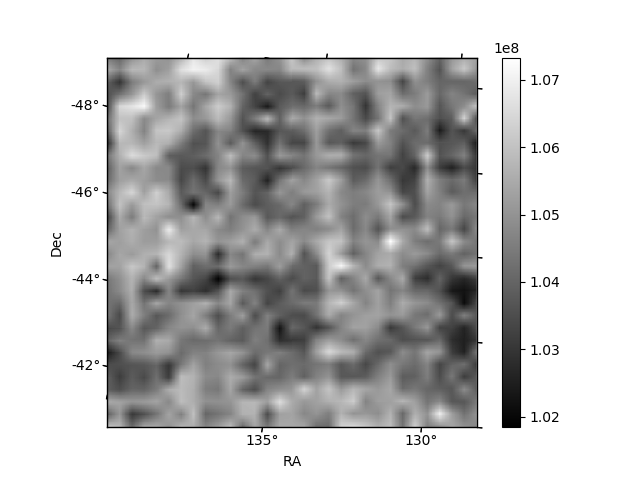

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

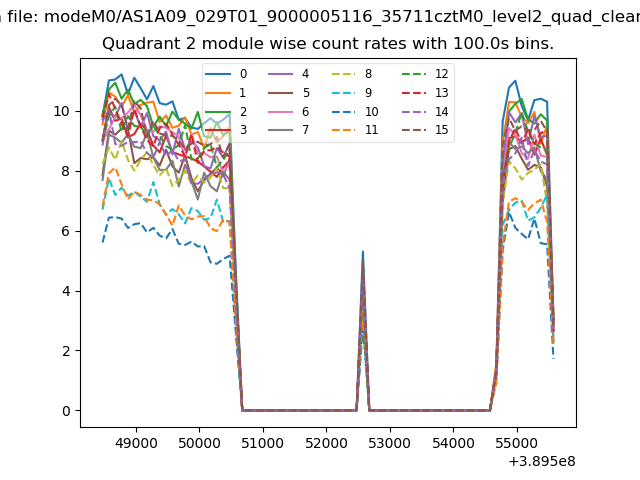

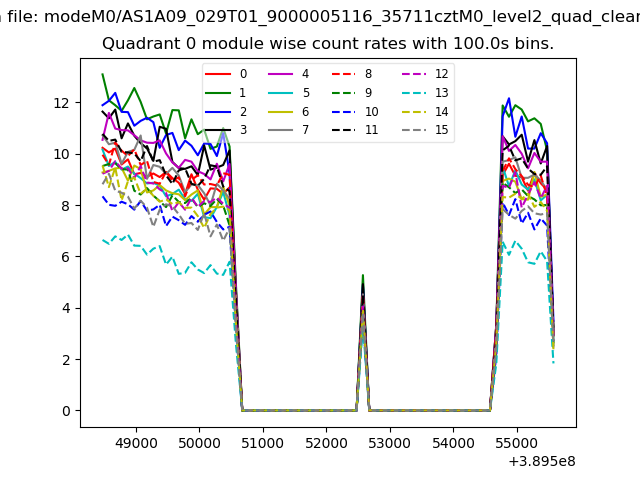

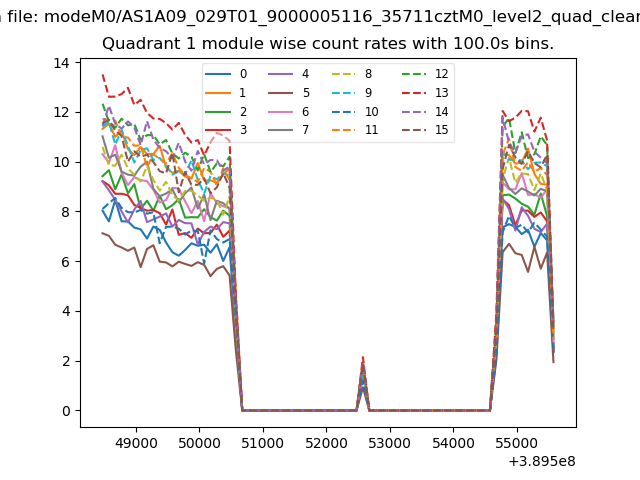

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

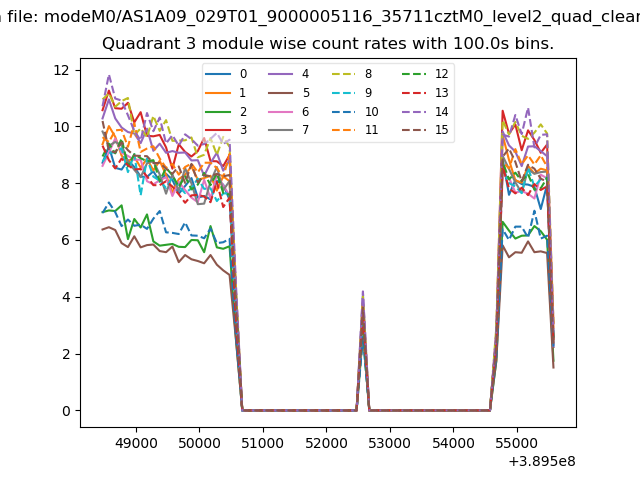

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

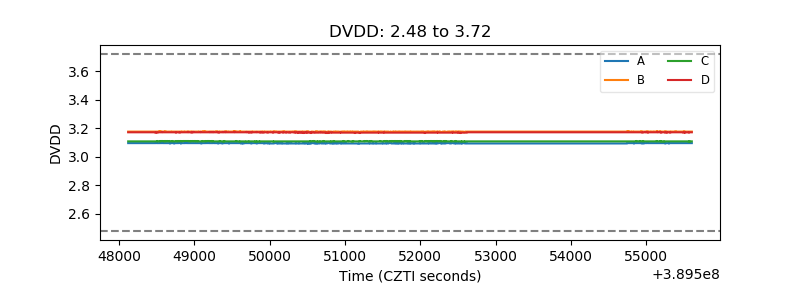

| D_VDD |  |

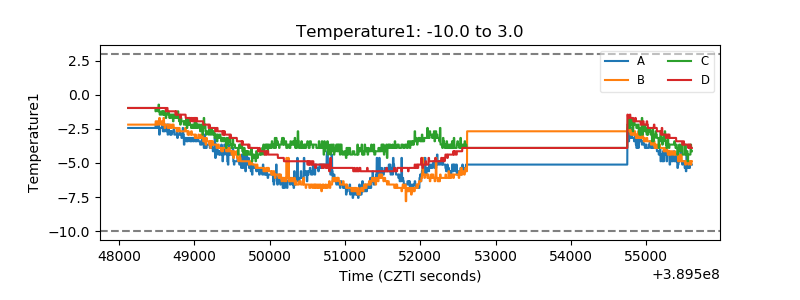

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

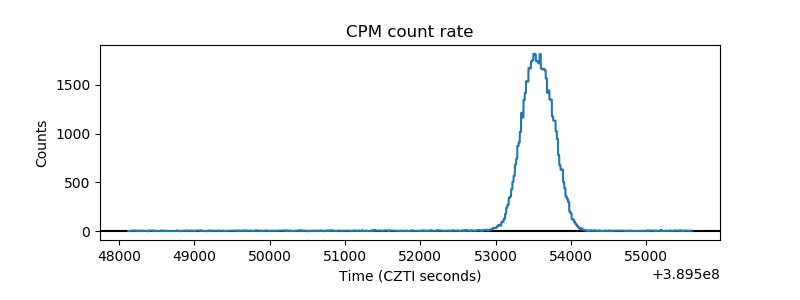

| _CPM_Rate |  |

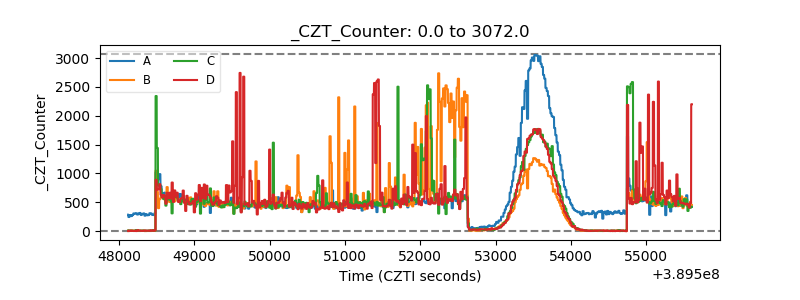

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

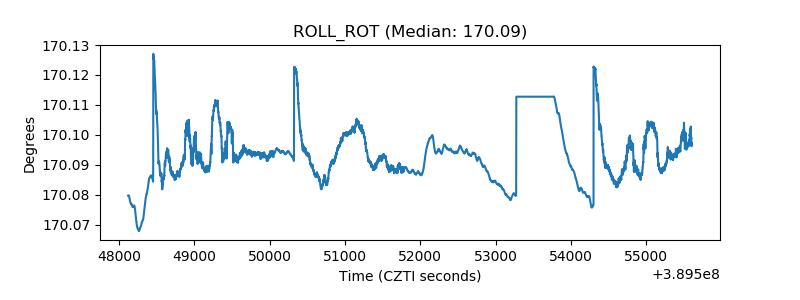

| _ROLL_ROT |  |

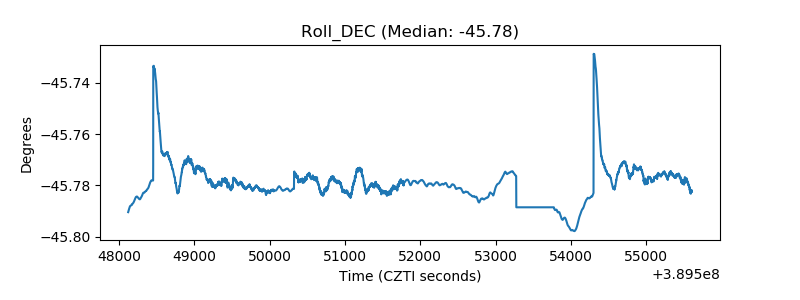

| _Roll_DEC |  |

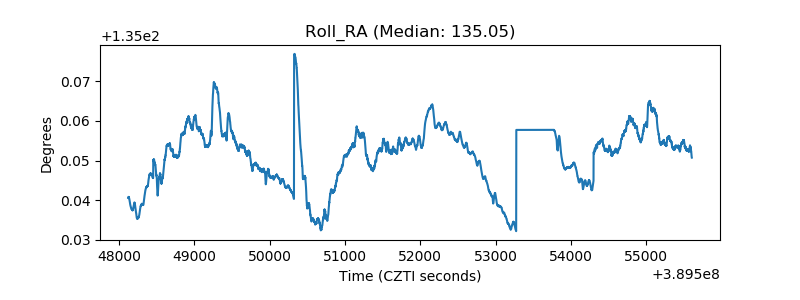

| _Roll_RA |  |

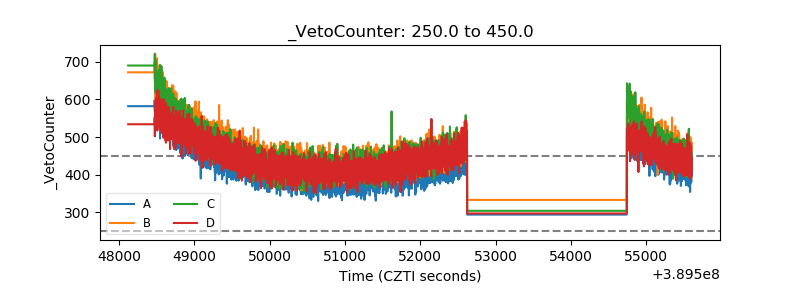

| Veto Counter |  |
