| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T01_9000005116_35712cztM0_level2.evt | modeM0/AS1A09_029T01_9000005116_35712cztM0_level2_quad_clean.evt |
| Size (bytes) | 109,059,840 | 27,328,320 |
| Size | 104.0 MB | 26.1 MB |
| Events in quadrant A | 682,898 | 188,117 |
| Events in quadrant B | 785,328 | 189,527 |
| Events in quadrant C | 793,753 | 176,454 |
| Events in quadrant D | 947,089 | 172,937 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2883 | 1 |
| B | 0 | 3183 | 1 |
| C | 0 | 3165 | 1 |
| D | 0 | 3694 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1342 | 1 | 0.074516% |
| B | 1342 | 17 | 1.266766% |
| C | 1342 | 61 | 4.545455% |
| D | 1342 | 41 | 3.055142% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1342 | 1342 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1342 | 1342 | 12 | 12 | 0.89% | 0.89% |  |
| C | 1342 | 1342 | 51 | 51 | 3.80% | 3.80% |  |
| D | 1342 | 1342 | 46 | 46 | 3.43% | 3.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 60045 | 1749.81 | 159 | 156 | 34.2 |
| A | 10 | 67 | 2171 | 58.87 | 159 | 156 | 34.2 |
| A | 13 | 6 | 2130 | 57.68 | 159 | 156 | 34.2 |
| B | 5 | 255 | 50477 | 1571.18 | 157 | 154 | 32.0 |
| B | 5 | 172 | 50281 | 1565.06 | 157 | 154 | 32.0 |
| B | 5 | 200 | 37531 | 1166.98 | 157 | 154 | 32.0 |
| C | 0 | 10 | 159759 | 4516.61 | 145 | 146 | 35.3 |
| C | 15 | 214 | 58002 | 1637.17 | 145 | 146 | 35.3 |
| C | 10 | 49 | 6552 | 181.27 | 145 | 146 | 35.3 |
| D | 1 | 52 | 282787 | 7349.79 | 149 | 144 | 38.5 |
| D | 2 | 153 | 28726 | 743.24 | 149 | 144 | 38.5 |
| D | 12 | 6 | 11949 | 306.97 | 149 | 144 | 38.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

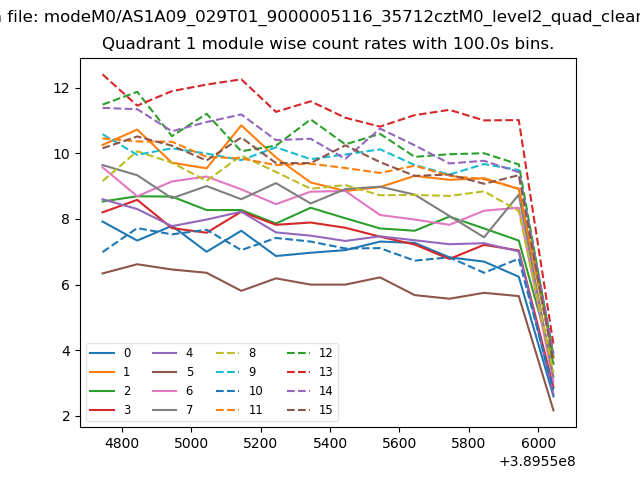

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

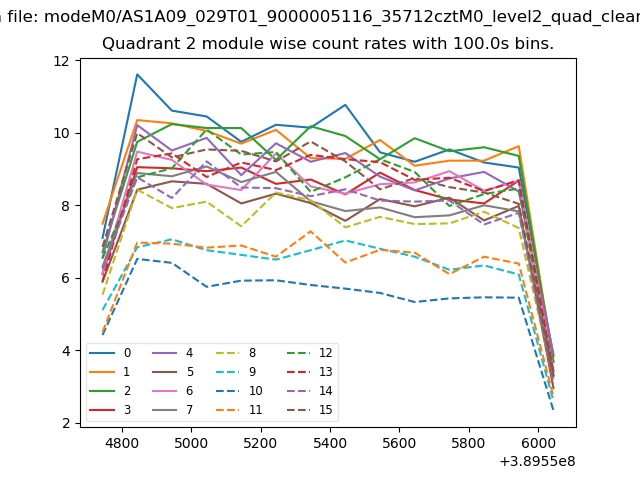

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
