| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_142T05_9000005118_35713cztM0_level2.evt | modeM0/AS1A09_142T05_9000005118_35713cztM0_level2_quad_clean.evt |
| Size (bytes) | 425,980,800 | 60,523,200 |
| Size | 406.2 MB | 57.7 MB |
| Events in quadrant A | 2,408,330 | 378,979 |
| Events in quadrant B | 2,957,439 | 377,155 |
| Events in quadrant C | 3,832,946 | 364,558 |
| Events in quadrant D | 3,355,585 | 354,377 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10479 | 3 |
| B | 0 | 12052 | 2 |
| C | 0 | 14560 | 2 |
| D | 0 | 13439 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41 | 0 |
| B | 0 | 41 | 0 |
| C | 0 | 41 | 0 |
| D | 0 | 41 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5090 | 5 | 0.098232% |
| B | 5090 | 133 | 2.612967% |
| C | 5090 | 438 | 8.605108% |
| D | 5090 | 223 | 4.381139% |

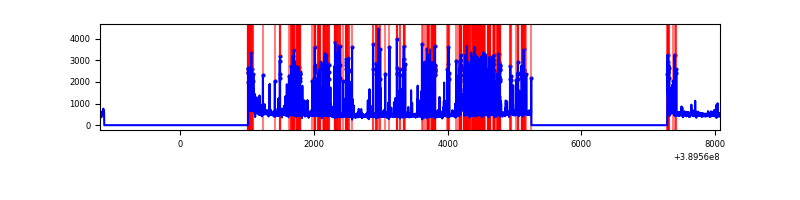

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9275 | 5092 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9275 | 5092 | 116 | 116 | 1.25% | 2.28% |  |
| C | 9275 | 5092 | 409 | 409 | 4.41% | 8.03% |  |
| D | 9275 | 5092 | 232 | 232 | 2.50% | 4.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 136732 | 1155.66 | 584 | 572 | 117.8 |
| A | 13 | 6 | 9553 | 76.23 | 584 | 572 | 117.8 |
| A | 3 | 137 | 6071 | 46.67 | 584 | 572 | 117.8 |
| B | 5 | 172 | 538524 | 4827.67 | 575 | 559 | 111.4 |
| B | 5 | 255 | 143762 | 1285.1 | 575 | 559 | 111.4 |
| B | 12 | 111 | 13739 | 118.28 | 575 | 559 | 111.4 |
| C | 0 | 10 | 1302990 | 9955.61 | 555 | 558 | 130.8 |
| C | 15 | 214 | 209626 | 1598.09 | 555 | 558 | 130.8 |
| C | 0 | 207 | 142371 | 1084.0 | 555 | 558 | 130.8 |
| D | 13 | 249 | 451112 | 3305.79 | 555 | 538 | 136.3 |
| D | 2 | 250 | 340617 | 2495.11 | 555 | 538 | 136.3 |
| D | 12 | 6 | 280356 | 2052.98 | 555 | 538 | 136.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

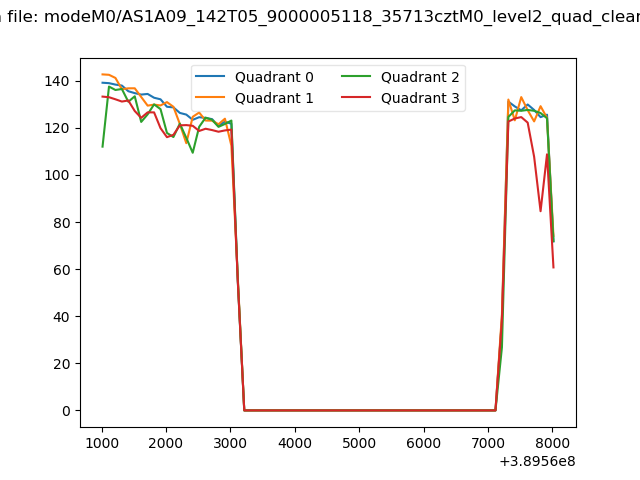

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

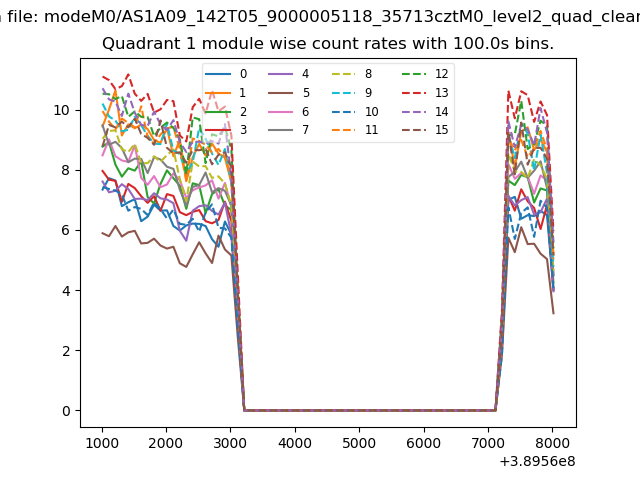

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

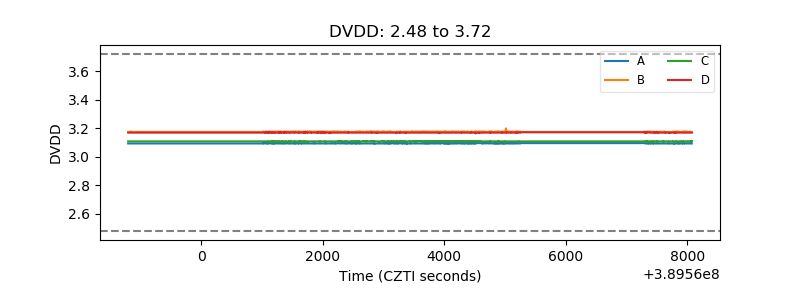

| D_VDD |  |

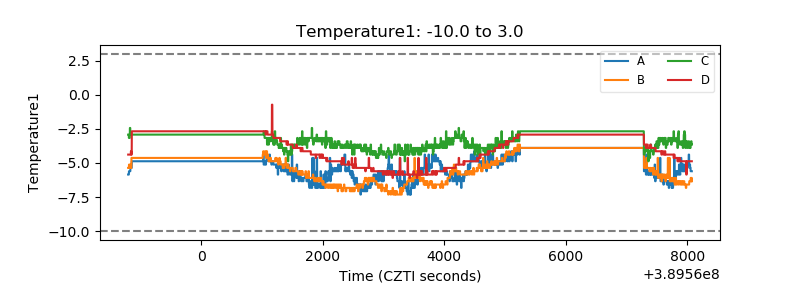

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

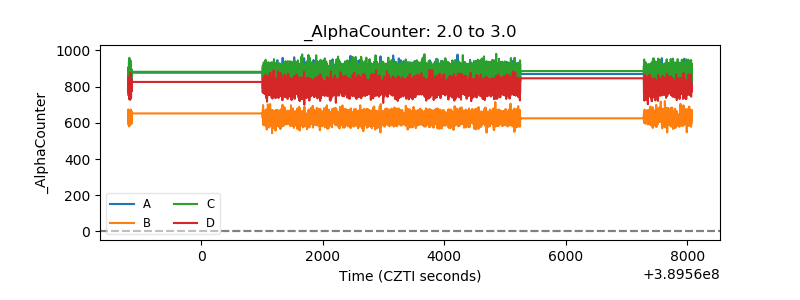

| Alpha Counter |  |
| _CPM_Rate |  |

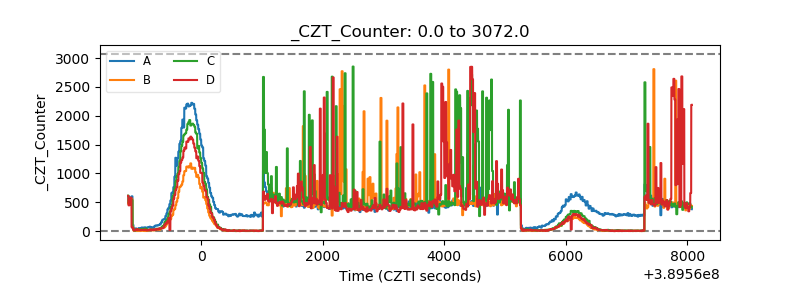

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

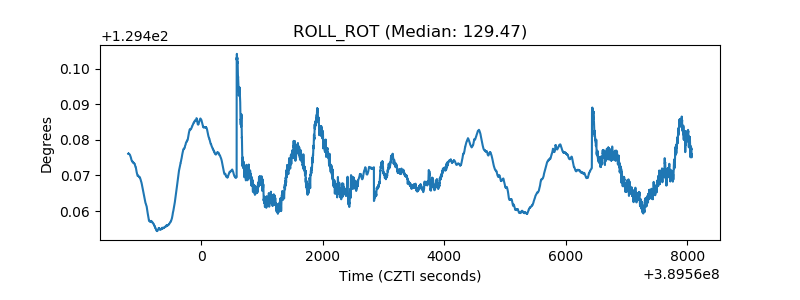

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
