| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_142T05_9000005118_35714cztM0_level2.evt | modeM0/AS1A09_142T05_9000005118_35714cztM0_level2_quad_clean.evt |
| Size (bytes) | 407,266,560 | 62,259,840 |
| Size | 388.4 MB | 59.4 MB |
| Events in quadrant A | 2,473,163 | 387,538 |
| Events in quadrant B | 2,837,550 | 388,731 |
| Events in quadrant C | 3,394,092 | 375,620 |
| Events in quadrant D | 3,268,290 | 361,404 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10857 | 3 |
| B | 0 | 11968 | 2 |
| C | 0 | 13441 | 2 |
| D | 0 | 13449 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5307 | 7 | 0.131901% |
| B | 5307 | 83 | 1.563972% |
| C | 5307 | 230 | 4.333899% |
| D | 5307 | 209 | 3.938195% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

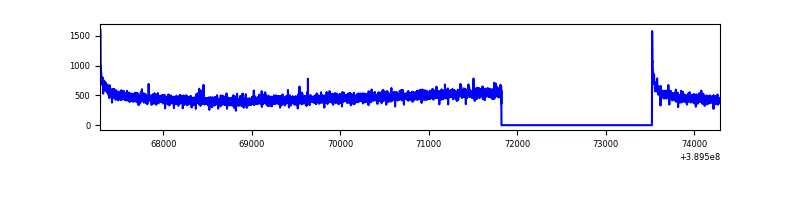

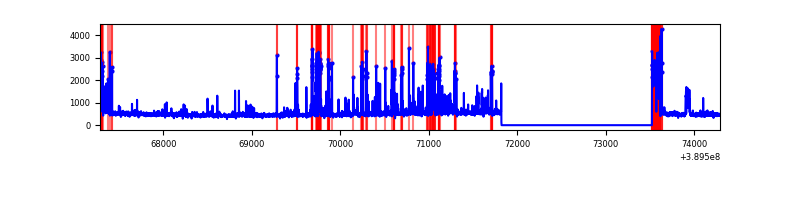

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7009 | 5308 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7009 | 5308 | 61 | 61 | 0.87% | 1.15% |  |
| C | 7009 | 5308 | 218 | 218 | 3.11% | 4.11% |  |
| D | 7009 | 5308 | 205 | 205 | 2.92% | 3.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 139259 | 1139.72 | 601 | 589 | 121.7 |
| A | 7 | 16 | 7651 | 58.04 | 601 | 589 | 121.7 |
| A | 3 | 137 | 6364 | 47.46 | 601 | 589 | 121.7 |
| B | 5 | 172 | 374740 | 3247.01 | 594 | 577 | 115.2 |
| B | 5 | 255 | 108820 | 939.34 | 594 | 577 | 115.2 |
| B | 12 | 111 | 14514 | 120.95 | 594 | 577 | 115.2 |
| C | 0 | 10 | 770649 | 5715.53 | 574 | 579 | 134.7 |
| C | 15 | 214 | 220587 | 1632.92 | 574 | 579 | 134.7 |
| C | 0 | 207 | 133152 | 983.97 | 574 | 579 | 134.7 |
| D | 2 | 250 | 495326 | 3521.86 | 571 | 555 | 140.5 |
| D | 13 | 249 | 239811 | 1703.06 | 571 | 555 | 140.5 |
| D | 12 | 6 | 131671 | 933.3 | 571 | 555 | 140.5 |

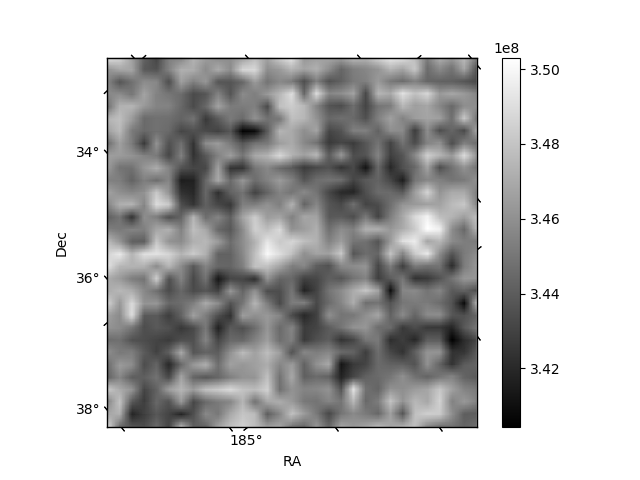

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

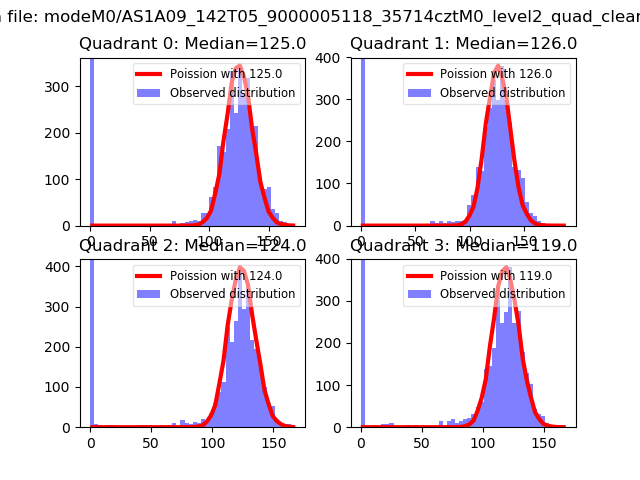

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

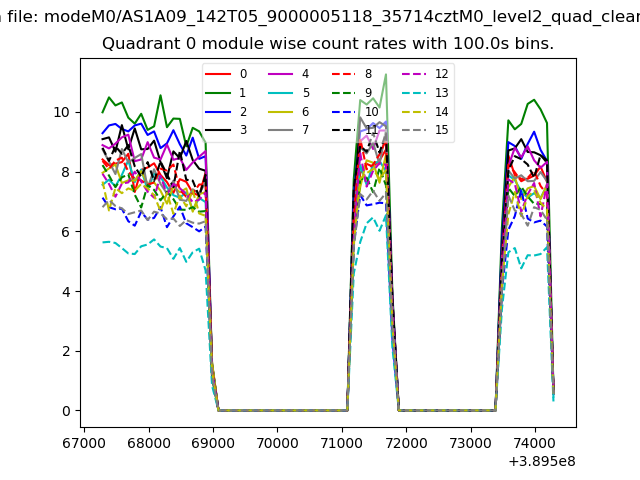

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

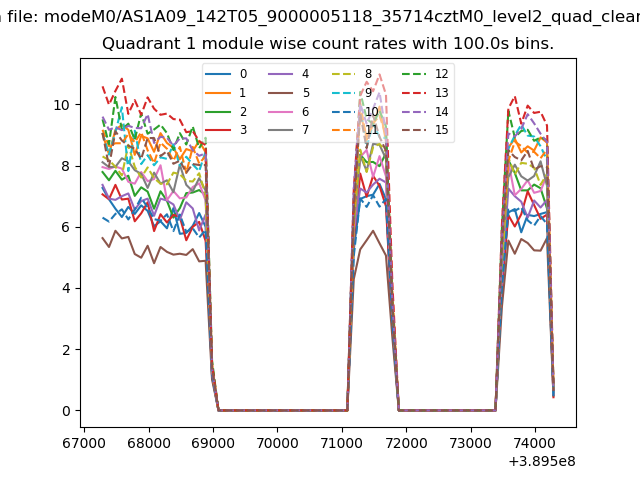

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

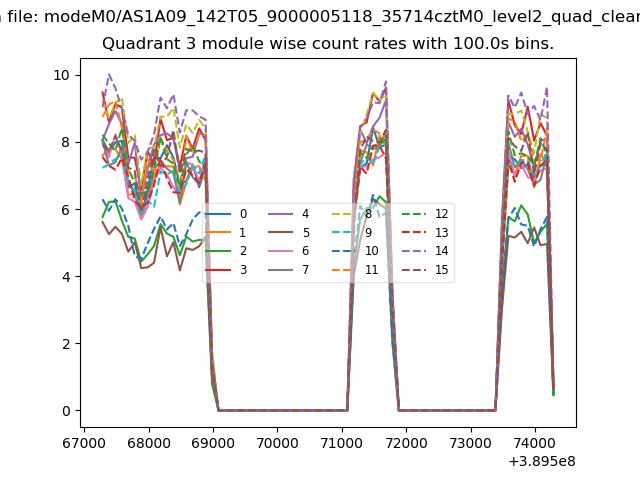

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

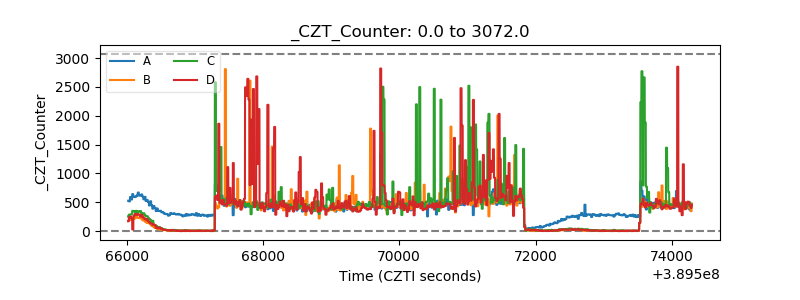

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
