| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T05_9000005124_35725cztM0_level2.evt | modeM0/AS1A09_029T05_9000005124_35725cztM0_level2_quad_clean.evt |
| Size (bytes) | 390,579,840 | 77,690,880 |
| Size | 372.5 MB | 74.1 MB |
| Events in quadrant A | 2,667,206 | 516,271 |
| Events in quadrant B | 2,730,326 | 512,955 |
| Events in quadrant C | 3,238,927 | 479,861 |
| Events in quadrant D | 2,836,390 | 476,938 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11105 | 3 |
| B | 0 | 11236 | 2 |
| C | 0 | 12806 | 4 |
| D | 0 | 11857 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5236 | 10 | 0.190985% |
| B | 5236 | 25 | 0.477464% |
| C | 5235 | 183 | 3.495702% |
| D | 5236 | 67 | 1.279603% |

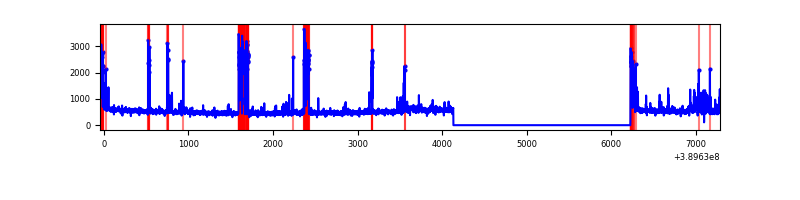

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7329 | 5237 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7329 | 5237 | 12 | 12 | 0.16% | 0.23% |  |
| C | 7329 | 5237 | 179 | 179 | 2.44% | 3.42% |  |
| D | 7329 | 5237 | 52 | 52 | 0.71% | 0.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 156812 | 1209.59 | 644 | 633 | 129.1 |
| A | 13 | 6 | 10096 | 73.29 | 644 | 633 | 129.1 |
| A | 13 | 254 | 8153 | 58.24 | 644 | 633 | 129.1 |
| B | 5 | 172 | 131865 | 1086.0 | 633 | 618 | 120.9 |
| B | 15 | 85 | 36027 | 292.99 | 633 | 618 | 120.9 |
| B | 5 | 255 | 34022 | 276.4 | 633 | 618 | 120.9 |
| C | 0 | 207 | 296400 | 2137.07 | 597 | 601 | 138.4 |
| C | 1 | 23 | 225474 | 1624.65 | 597 | 601 | 138.4 |
| C | 15 | 214 | 221090 | 1592.97 | 597 | 601 | 138.4 |
| D | 13 | 249 | 203197 | 1365.49 | 610 | 592 | 148.4 |
| D | 2 | 249 | 64735 | 432.3 | 610 | 592 | 148.4 |
| D | 10 | 199 | 46799 | 311.42 | 610 | 592 | 148.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

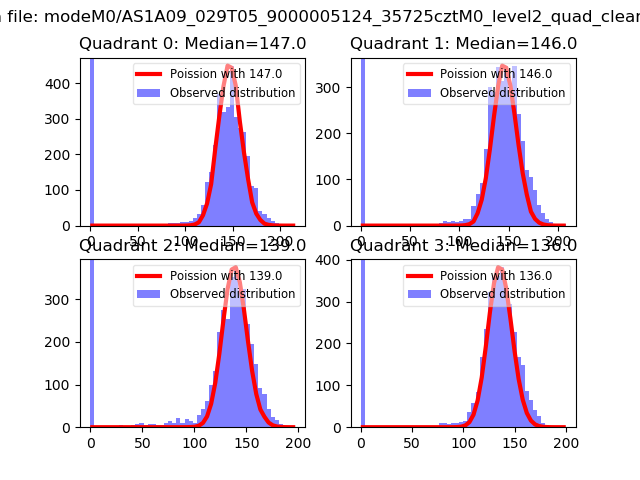

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

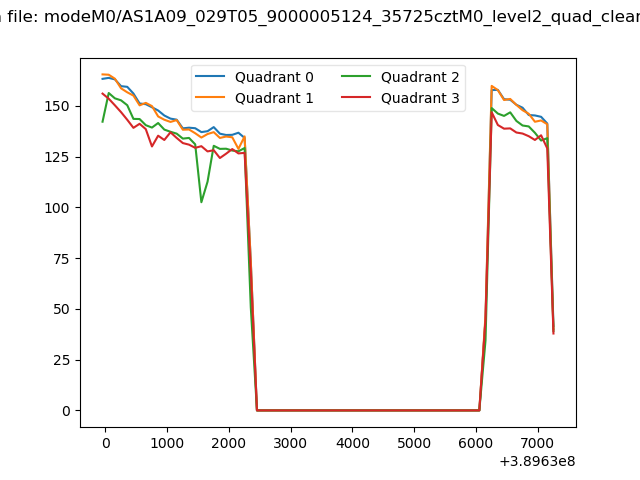

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

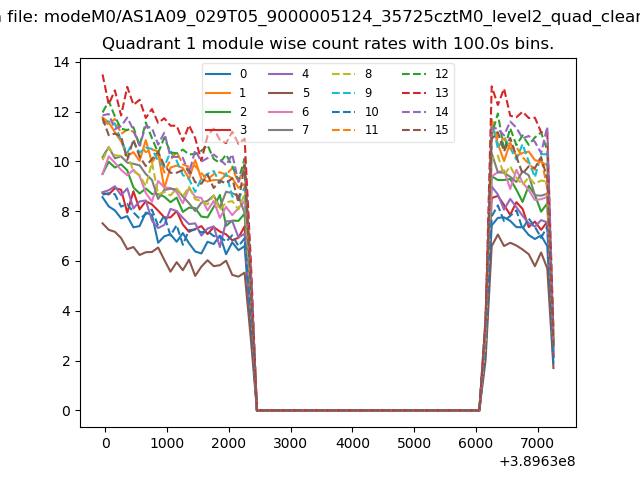

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

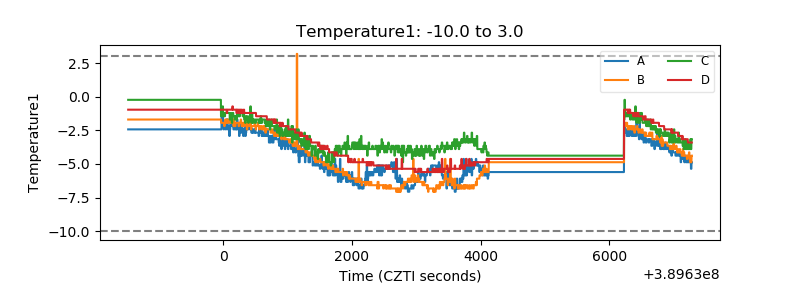

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

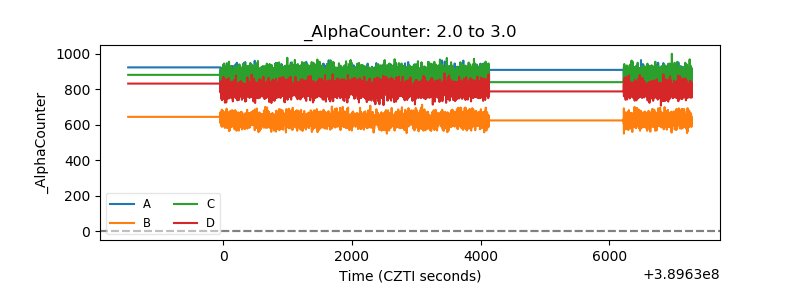

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

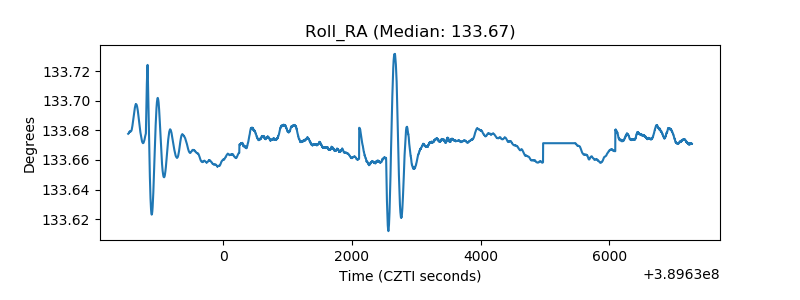

| _Roll_RA |  |
| Veto Counter |  |
