| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_143T04_9000005120_35722cztM0_level2.evt | modeM0/AS1A09_143T04_9000005120_35722cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,011,840 | 99,408,960 |
| Size | 433.0 MB | 94.8 MB |
| Events in quadrant A | 2,779,764 | 672,149 |
| Events in quadrant B | 3,000,823 | 673,585 |
| Events in quadrant C | 3,568,309 | 649,285 |
| Events in quadrant D | 4,021,221 | 624,318 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11769 | 3 |
| B | 0 | 12461 | 2 |
| C | 0 | 14007 | 2 |
| D | 0 | 15553 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5595 | 6 | 0.107239% |
| B | 5595 | 93 | 1.662198% |
| C | 5595 | 151 | 2.698838% |
| D | 5595 | 66 | 1.179625% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7328 | 5596 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7328 | 5596 | 57 | 57 | 0.78% | 1.02% |  |
| C | 7328 | 5596 | 139 | 139 | 1.90% | 2.48% |  |
| D | 7328 | 5596 | 41 | 41 | 0.56% | 0.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 160731 | 1214.22 | 661 | 649 | 131.8 |
| A | 7 | 48 | 29266 | 217.06 | 661 | 649 | 131.8 |
| A | 13 | 6 | 20440 | 150.11 | 661 | 649 | 131.8 |
| B | 5 | 172 | 263692 | 2112.69 | 649 | 631 | 124.5 |
| B | 5 | 255 | 64859 | 515.83 | 649 | 631 | 124.5 |
| B | 0 | 197 | 49953 | 396.11 | 649 | 631 | 124.5 |
| C | 0 | 207 | 412196 | 2845.7 | 630 | 634 | 144.6 |
| C | 1 | 23 | 271511 | 1872.95 | 630 | 634 | 144.6 |
| C | 15 | 214 | 236774 | 1632.77 | 630 | 634 | 144.6 |
| D | 10 | 203 | 1179185 | 7457.2 | 640 | 621 | 158.0 |
| D | 13 | 249 | 152343 | 960.0 | 640 | 621 | 158.0 |
| D | 2 | 153 | 87404 | 549.11 | 640 | 621 | 158.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

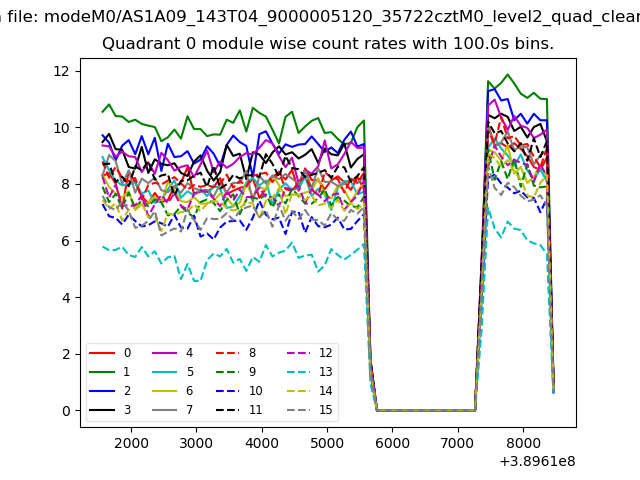

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

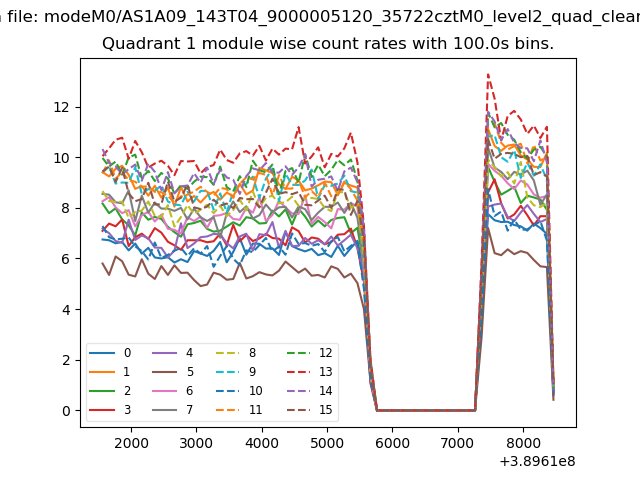

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

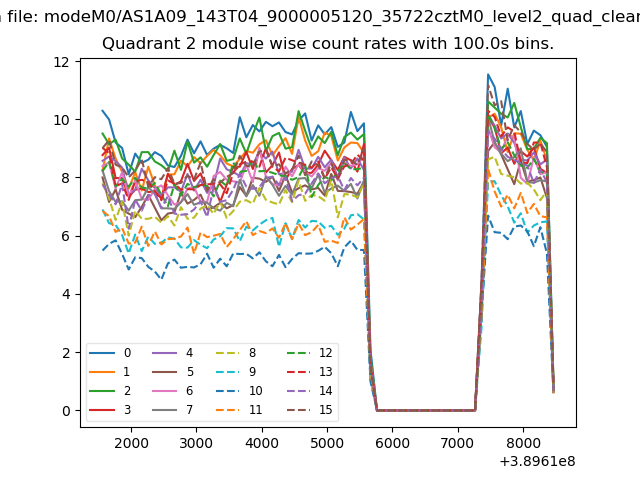

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

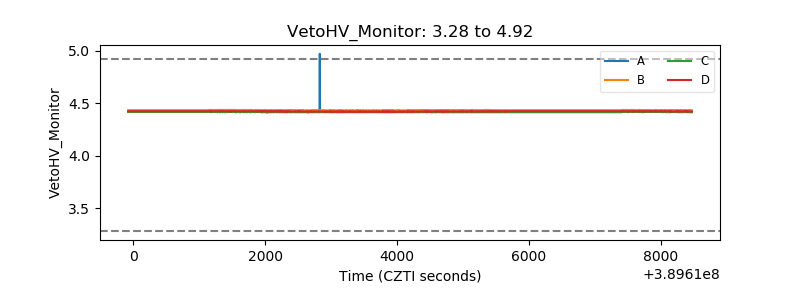

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

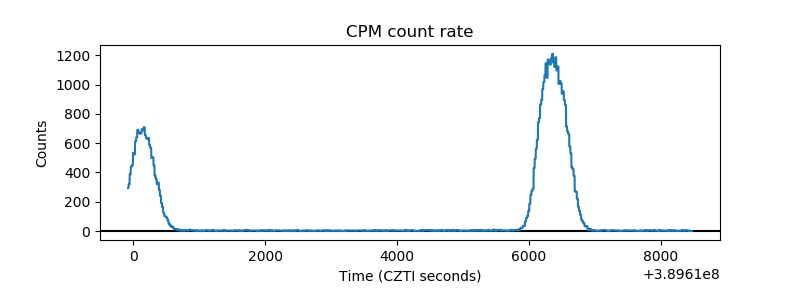

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

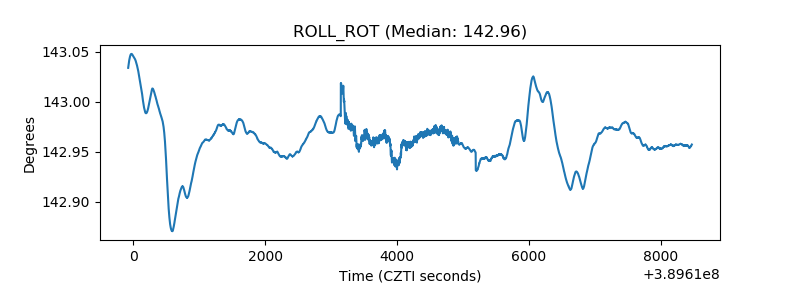

| _ROLL_ROT |  |

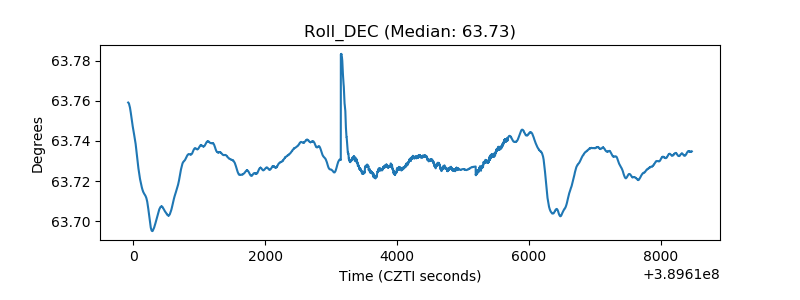

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
