| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T06_9000005126_35733cztM0_level2.evt | modeM0/AS1A09_029T06_9000005126_35733cztM0_level2_quad_clean.evt |
| Size (bytes) | 123,056,640 | 20,661,120 |
| Size | 117.4 MB | 19.7 MB |
| Events in quadrant A | 893,938 | 126,883 |
| Events in quadrant B | 852,359 | 130,444 |
| Events in quadrant C | 1,026,569 | 126,783 |
| Events in quadrant D | 841,704 | 122,227 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3618 | 2 |
| B | 0 | 3498 | 1 |
| C | 0 | 3962 | 1 |
| D | 0 | 3517 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1605 | 14 | 0.872274% |
| B | 1605 | 19 | 1.183801% |
| C | 1605 | 80 | 4.984424% |
| D | 1605 | 11 | 0.685358% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3038 | 1606 | 8 | 8 | 0.26% | 0.50% |  |
| B | 3038 | 1606 | 8 | 8 | 0.26% | 0.50% |  |
| C | 3038 | 1606 | 60 | 60 | 1.97% | 3.74% |  |
| D | 3038 | 1606 | 9 | 9 | 0.30% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 80839 | 1981.93 | 191 | 187 | 40.7 |
| A | 10 | 83 | 58894 | 1442.66 | 191 | 187 | 40.7 |
| A | 13 | 6 | 8938 | 215.05 | 191 | 187 | 40.7 |
| B | 5 | 172 | 50512 | 1291.59 | 191 | 186 | 39.0 |
| B | 15 | 85 | 18949 | 481.54 | 191 | 186 | 39.0 |
| B | 4 | 81 | 17649 | 448.18 | 191 | 186 | 39.0 |
| C | 0 | 10 | 224924 | 5002.86 | 185 | 186 | 44.9 |
| C | 15 | 214 | 69074 | 1533.5 | 185 | 186 | 44.9 |
| C | 9 | 187 | 7158 | 155.2 | 185 | 186 | 44.9 |
| D | 12 | 6 | 29867 | 631.63 | 186 | 180 | 47.0 |
| D | 13 | 249 | 28679 | 606.36 | 186 | 180 | 47.0 |
| D | 2 | 153 | 20710 | 436.8 | 186 | 180 | 47.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

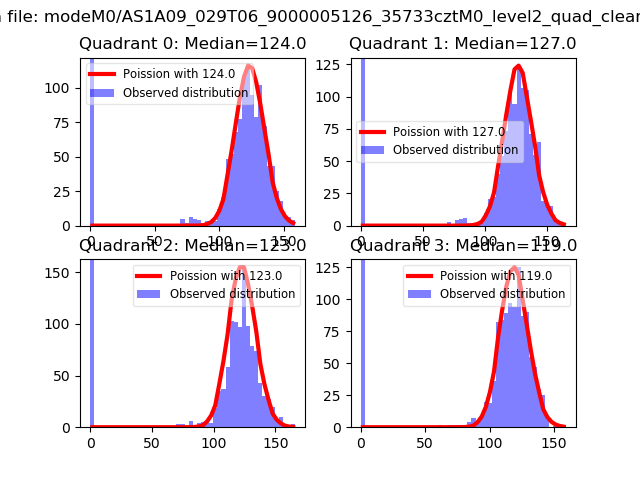

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

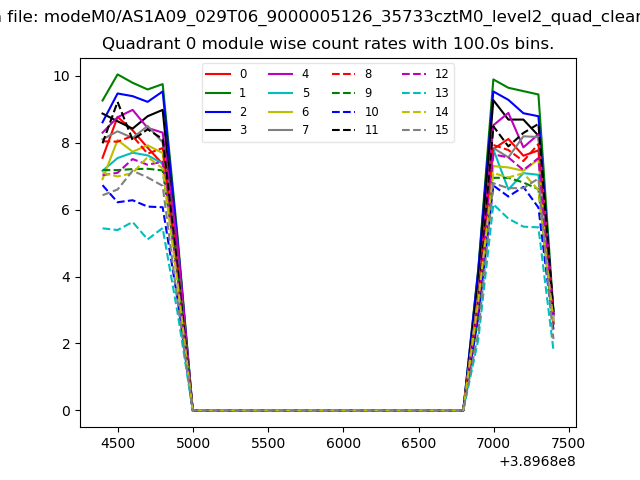

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

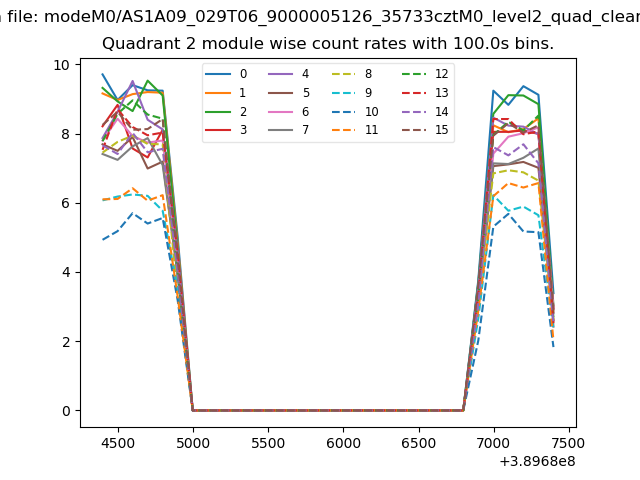

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

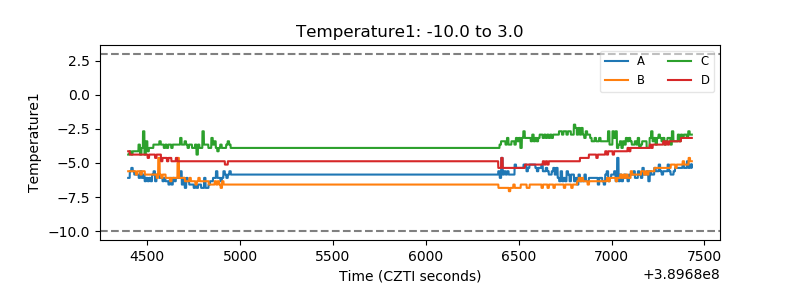

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

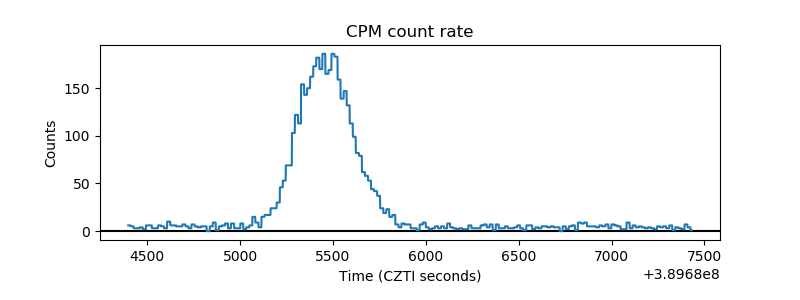

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

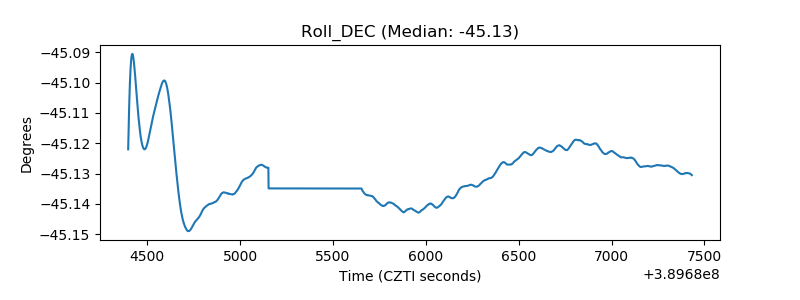

| _Roll_DEC |  |

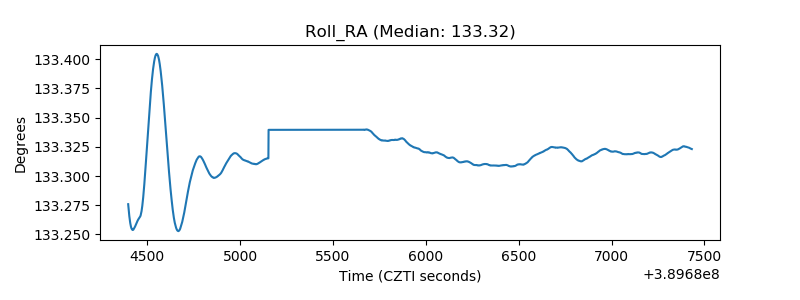

| _Roll_RA |  |

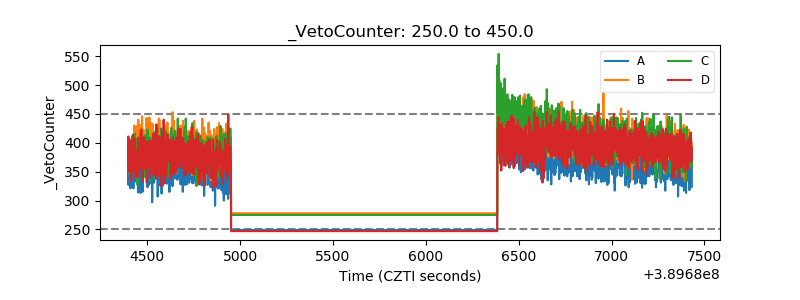

| Veto Counter |  |
