| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T06_9000005126_35737cztM0_level2.evt | modeM0/AS1A09_029T06_9000005126_35737cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,123,200 | 95,791,680 |
| Size | 498.9 MB | 91.4 MB |
| Events in quadrant A | 4,583,173 | 630,903 |
| Events in quadrant B | 3,133,201 | 649,390 |
| Events in quadrant C | 3,554,866 | 625,825 |
| Events in quadrant D | 4,193,061 | 604,226 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17342 | 3 |
| B | 0 | 12750 | 2 |
| C | 0 | 14055 | 2 |
| D | 0 | 16264 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5584 | 591 | 10.583811% |
| B | 5584 | 126 | 2.256447% |
| C | 5584 | 156 | 2.793696% |
| D | 5584 | 155 | 2.775788% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

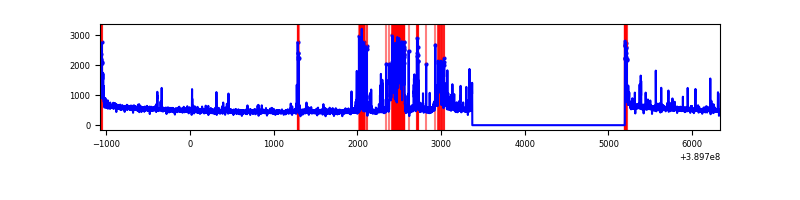

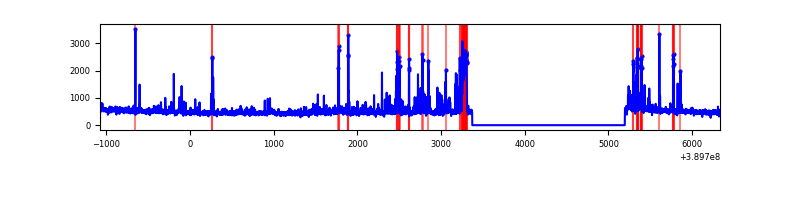

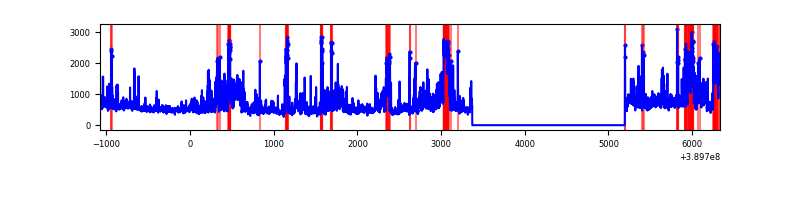

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7407 | 5584 | 534 | 534 | 7.21% | 9.56% |  |
| B | 7407 | 5585 | 93 | 93 | 1.26% | 1.67% |  |
| C | 7407 | 5585 | 158 | 158 | 2.13% | 2.83% |  |
| D | 7407 | 5585 | 171 | 171 | 2.31% | 3.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1937964 | 15066.43 | 641 | 630 | 128.6 |
| A | 10 | 83 | 139456 | 1079.63 | 641 | 630 | 128.6 |
| A | 7 | 16 | 9198 | 66.63 | 641 | 630 | 128.6 |
| B | 5 | 172 | 401486 | 3174.01 | 660 | 642 | 126.3 |
| B | 0 | 189 | 95132 | 748.2 | 660 | 642 | 126.3 |
| B | 5 | 255 | 26622 | 205.72 | 660 | 642 | 126.3 |
| C | 2 | 16 | 523080 | 3517.96 | 641 | 646 | 148.5 |
| C | 15 | 214 | 236080 | 1585.36 | 641 | 646 | 148.5 |
| C | 0 | 10 | 107803 | 721.57 | 641 | 646 | 148.5 |
| D | 14 | 52 | 840742 | 5266.02 | 652 | 636 | 159.5 |
| D | 1 | 52 | 369589 | 2312.7 | 652 | 636 | 159.5 |
| D | 2 | 153 | 72740 | 451.97 | 652 | 636 | 159.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

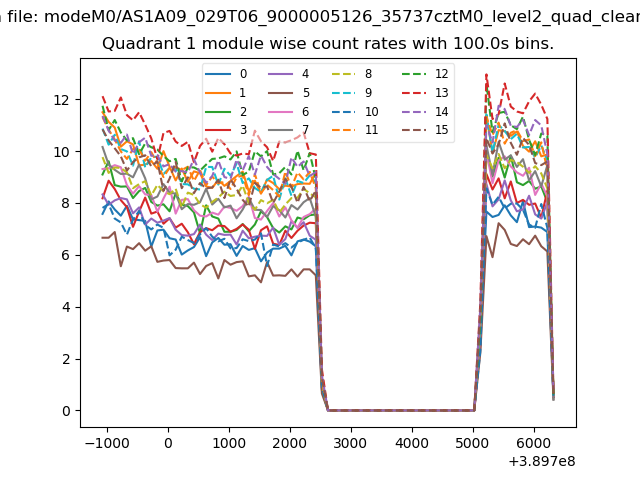

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

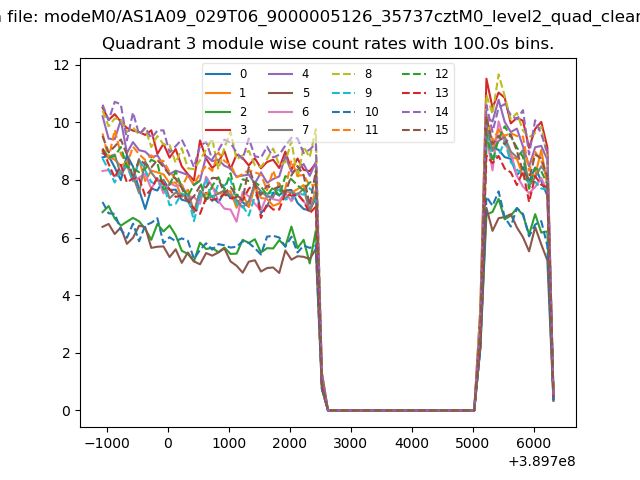

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

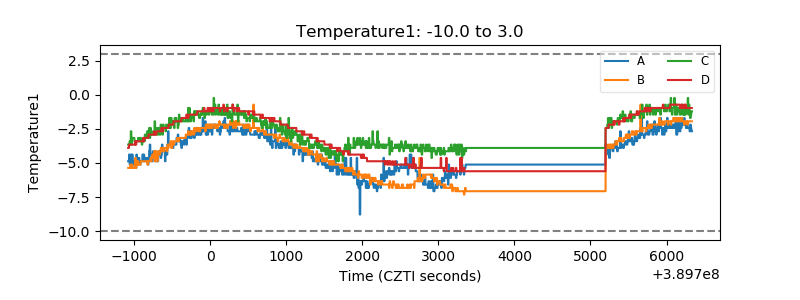

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

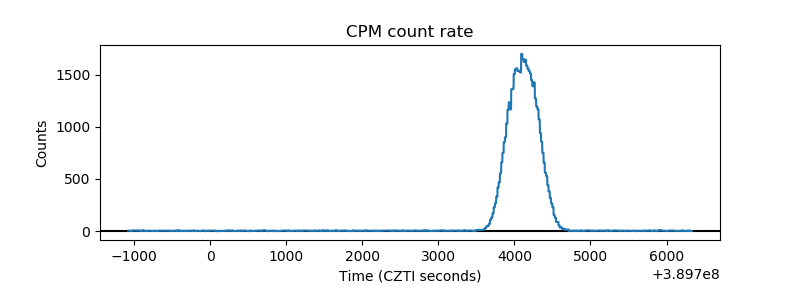

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

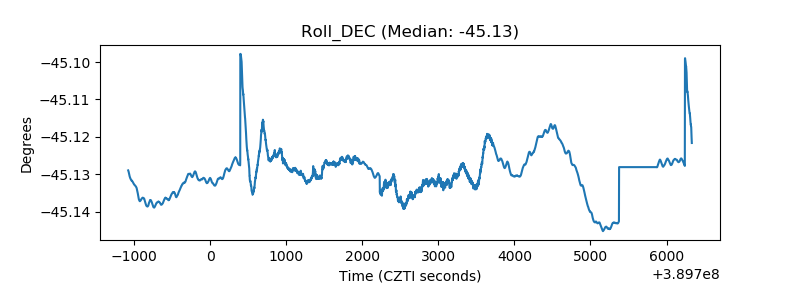

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
