| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T14_9000005134_35758cztM0_level2.evt | modeM0/AS1A10_058T14_9000005134_35758cztM0_level2_quad_clean.evt |
| Size (bytes) | 309,847,680 | 36,023,040 |
| Size | 295.5 MB | 34.4 MB |
| Events in quadrant A | 2,242,783 | 209,454 |
| Events in quadrant B | 2,383,828 | 212,259 |
| Events in quadrant C | 1,964,283 | 205,065 |
| Events in quadrant D | 2,535,484 | 196,631 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9336 | 2 |
| B | 0 | 9539 | 1 |
| C | 0 | 8054 | 1 |
| D | 0 | 9927 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3779 | 12 | 0.317544% |
| B | 3779 | 148 | 3.916380% |
| C | 3779 | 31 | 0.820323% |
| D | 3779 | 112 | 2.963747% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

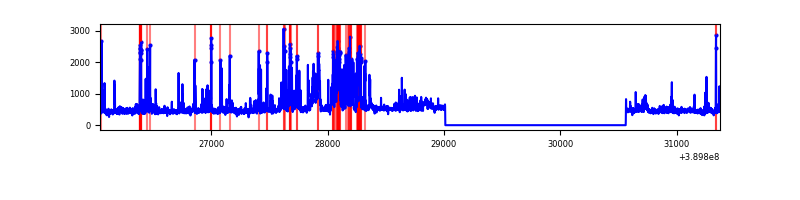

| A | 5332 | 3780 | 4 | 4 | 0.08% | 0.11% |  |
| B | 5332 | 3780 | 85 | 85 | 1.59% | 2.25% |  |

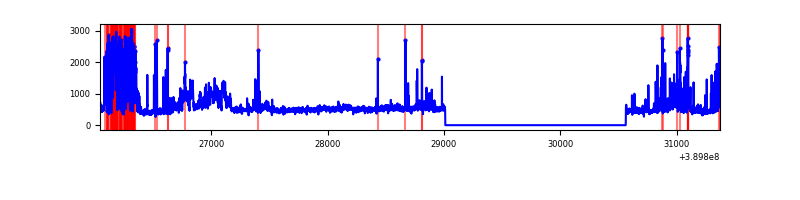

| C | 5332 | 3780 | 28 | 28 | 0.53% | 0.74% |  |
| D | 5332 | 3780 | 124 | 124 | 2.33% | 3.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 422215 | 4690.09 | 438 | 430 | 89.9 |
| A | 10 | 83 | 90139 | 997.53 | 438 | 430 | 89.9 |
| A | 7 | 3 | 12474 | 133.92 | 438 | 430 | 89.9 |
| B | 5 | 172 | 543780 | 6431.47 | 432 | 421 | 84.5 |
| B | 4 | 232 | 37598 | 440.05 | 432 | 421 | 84.5 |
| B | 0 | 190 | 21948 | 254.8 | 432 | 421 | 84.5 |
| C | 15 | 214 | 156158 | 1549.98 | 428 | 430 | 100.5 |
| C | 0 | 10 | 128514 | 1274.84 | 428 | 430 | 100.5 |
| C | 9 | 187 | 3175 | 27.32 | 428 | 430 | 100.5 |
| D | 7 | 80 | 450396 | 4329.14 | 423 | 412 | 103.9 |
| D | 1 | 52 | 248172 | 2383.62 | 423 | 412 | 103.9 |
| D | 13 | 249 | 64316 | 614.8 | 423 | 412 | 103.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

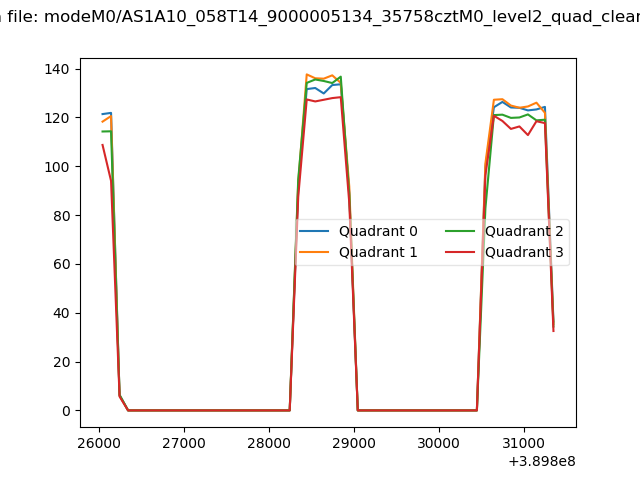

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

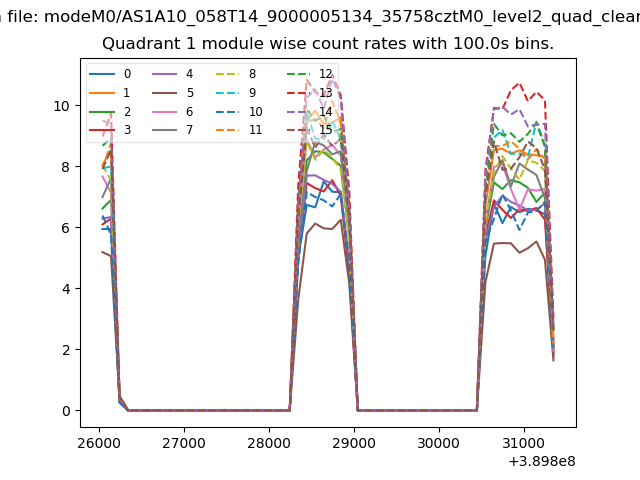

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

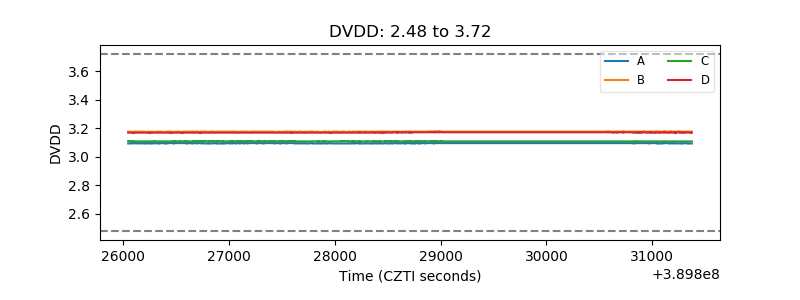

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

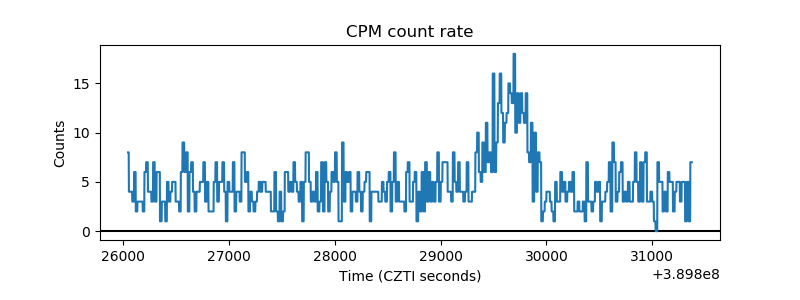

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

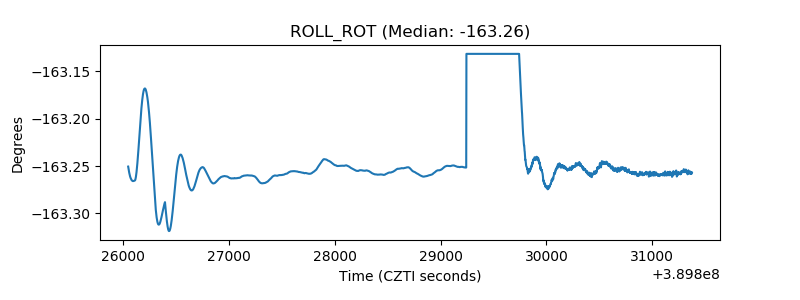

| _ROLL_ROT |  |
| _Roll_DEC |  |

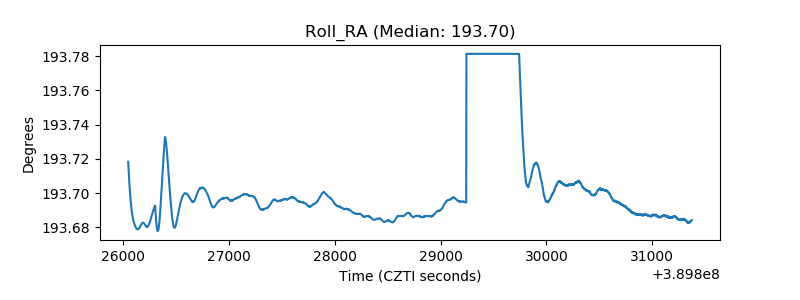

| _Roll_RA |  |
| Veto Counter |  |
