| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_121T01_9000005136_35784cztM0_level2.evt | modeM0/AS1A09_121T01_9000005136_35784cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,044,160 | 69,408,000 |
| Size | 397.7 MB | 66.2 MB |
| Events in quadrant A | 2,891,092 | 448,427 |
| Events in quadrant B | 3,361,818 | 448,347 |
| Events in quadrant C | 2,864,748 | 436,121 |
| Events in quadrant D | 3,176,750 | 421,991 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11613 | 3 |
| B | 0 | 13191 | 2 |
| C | 0 | 11338 | 2 |
| D | 0 | 12547 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4938 | 105 | 2.126367% |
| B | 4938 | 144 | 2.916160% |
| C | 4938 | 101 | 2.045362% |
| D | 4938 | 146 | 2.956663% |

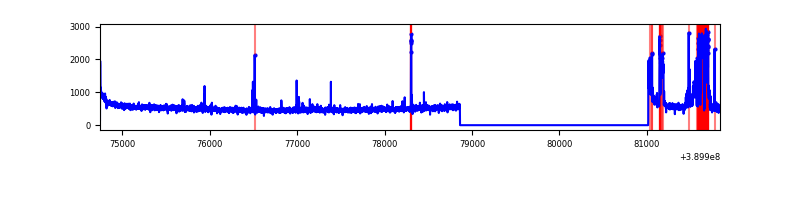

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7091 | 4939 | 96 | 96 | 1.35% | 1.94% |  |
| B | 7091 | 4939 | 107 | 107 | 1.51% | 2.17% |  |
| C | 7091 | 4939 | 94 | 94 | 1.33% | 1.90% |  |
| D | 7091 | 4939 | 140 | 140 | 1.97% | 2.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 346034 | 2867.33 | 596 | 587 | 120.5 |
| A | 10 | 83 | 165131 | 1365.77 | 596 | 587 | 120.5 |
| A | 15 | 169 | 49574 | 406.61 | 596 | 587 | 120.5 |
| B | 5 | 172 | 331922 | 2979.18 | 593 | 579 | 111.2 |
| B | 5 | 255 | 191885 | 1720.08 | 593 | 579 | 111.2 |
| B | 0 | 213 | 118631 | 1061.43 | 593 | 579 | 111.2 |
| C | 0 | 10 | 253624 | 1891.82 | 578 | 583 | 133.8 |
| C | 15 | 214 | 212972 | 1587.89 | 578 | 583 | 133.8 |
| C | 1 | 23 | 73234 | 543.16 | 578 | 583 | 133.8 |
| D | 13 | 249 | 304446 | 2124.35 | 582 | 568 | 143.0 |
| D | 2 | 249 | 165009 | 1149.57 | 582 | 568 | 143.0 |
| D | 13 | 13 | 126717 | 881.88 | 582 | 568 | 143.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

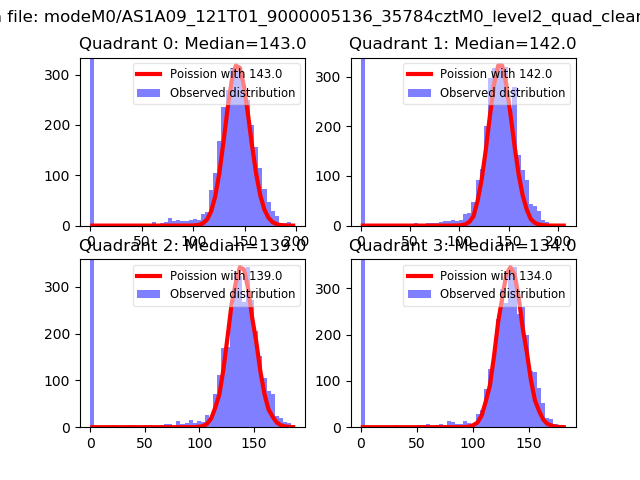

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

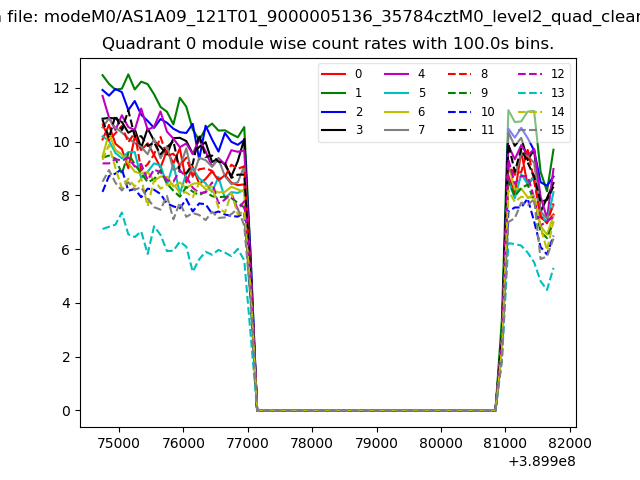

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
