| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_121T01_9000005136_35786cztM0_level2.evt | modeM0/AS1A09_121T01_9000005136_35786cztM0_level2_quad_clean.evt |
| Size (bytes) | 410,702,400 | 56,188,800 |
| Size | 391.7 MB | 53.6 MB |
| Events in quadrant A | 2,839,302 | 342,650 |
| Events in quadrant B | 3,258,532 | 346,341 |
| Events in quadrant C | 2,865,189 | 339,116 |
| Events in quadrant D | 3,143,853 | 330,832 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11571 | 2 |
| B | 0 | 12833 | 2 |
| C | 0 | 11413 | 2 |
| D | 0 | 12598 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4874 | 121 | 2.482561% |
| B | 4874 | 180 | 3.693065% |
| C | 4874 | 112 | 2.297907% |
| D | 4874 | 109 | 2.236356% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6967 | 4875 | 111 | 111 | 1.59% | 2.28% |  |
| B | 6967 | 4875 | 138 | 138 | 1.98% | 2.83% |  |
| C | 6967 | 4875 | 101 | 101 | 1.45% | 2.07% |  |
| D | 6967 | 4875 | 113 | 113 | 1.62% | 2.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 432202 | 3769.0 | 564 | 553 | 114.5 |
| A | 10 | 83 | 163081 | 1419.13 | 564 | 553 | 114.5 |
| A | 7 | 48 | 32892 | 282.37 | 564 | 553 | 114.5 |
| B | 5 | 255 | 253193 | 2364.81 | 564 | 549 | 106.8 |
| B | 5 | 172 | 184939 | 1725.93 | 564 | 549 | 106.8 |
| B | 4 | 232 | 165503 | 1544.01 | 564 | 549 | 106.8 |
| C | 0 | 10 | 275730 | 2134.86 | 552 | 557 | 128.9 |
| C | 15 | 214 | 208364 | 1612.22 | 552 | 557 | 128.9 |
| C | 1 | 23 | 117910 | 910.46 | 552 | 557 | 128.9 |
| D | 10 | 118 | 254534 | 1914.32 | 552 | 539 | 132.7 |
| D | 2 | 249 | 138592 | 1040.48 | 552 | 539 | 132.7 |
| D | 8 | 195 | 118012 | 885.38 | 552 | 539 | 132.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

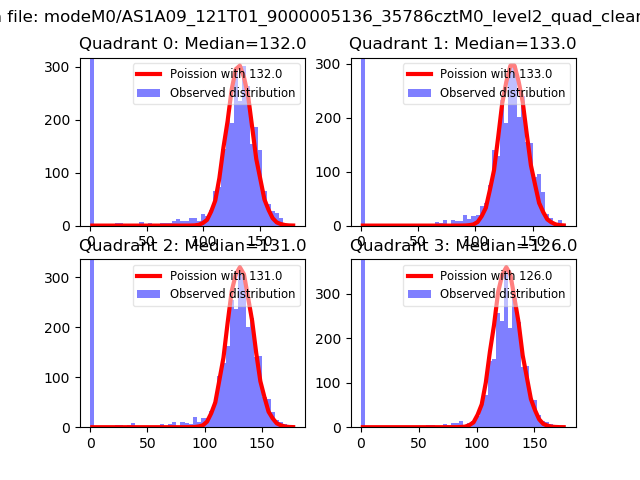

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

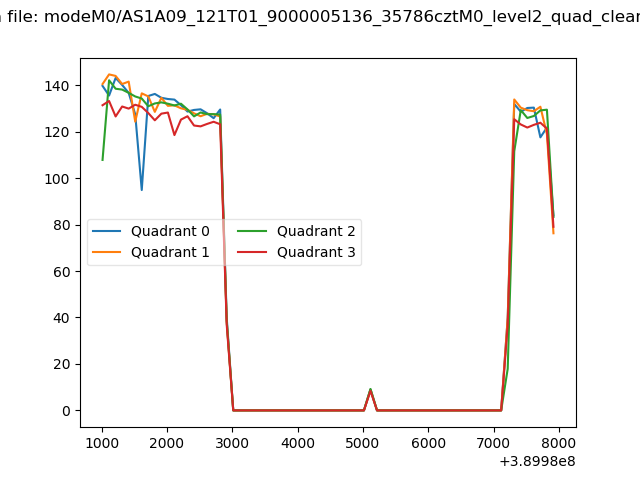

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

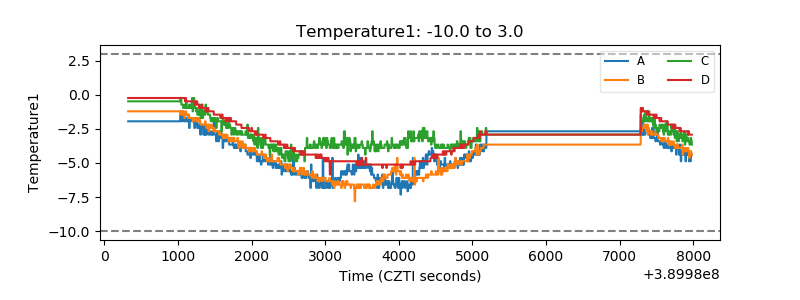

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

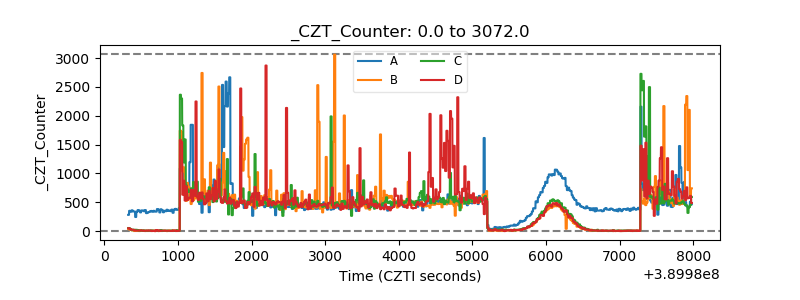

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

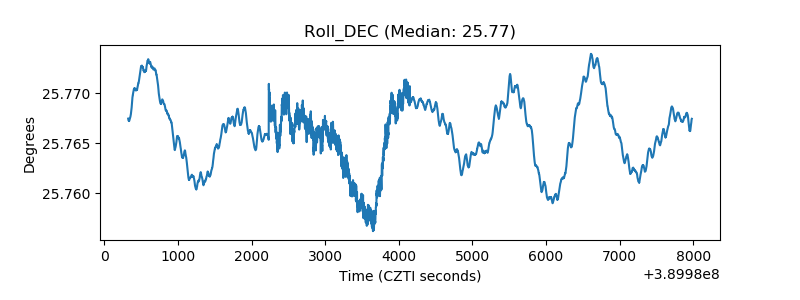

| _Roll_DEC |  |

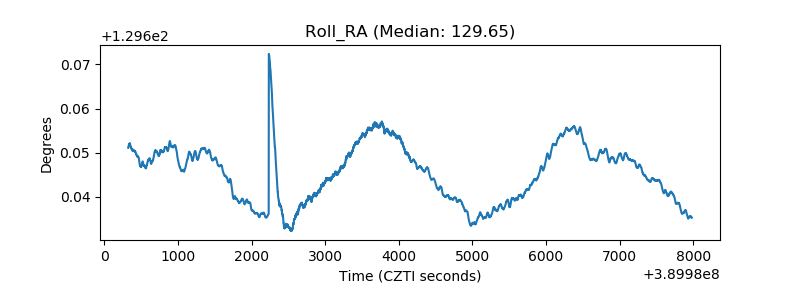

| _Roll_RA |  |
| Veto Counter |  |
