| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T09_9000005138_35786cztM0_level2.evt | modeM0/AS1A09_029T09_9000005138_35786cztM0_level2_quad_clean.evt |
| Size (bytes) | 281,520,000 | 36,060,480 |
| Size | 268.5 MB | 34.4 MB |
| Events in quadrant A | 1,740,749 | 216,703 |
| Events in quadrant B | 2,250,748 | 215,006 |
| Events in quadrant C | 1,940,477 | 209,952 |
| Events in quadrant D | 2,349,815 | 196,763 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7475 | 2 |
| B | 0 | 9022 | 1 |
| C | 0 | 7936 | 1 |
| D | 0 | 9408 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3569 | 16 | 0.448305% |
| B | 3569 | 116 | 3.250210% |
| C | 3569 | 50 | 1.400953% |
| D | 3569 | 184 | 5.155506% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

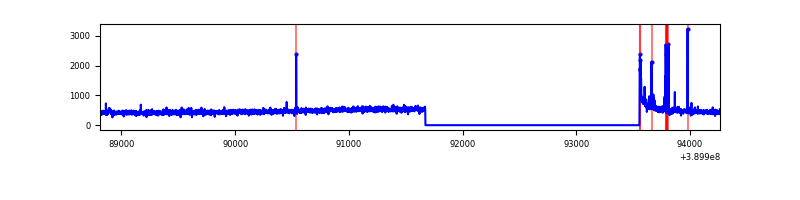

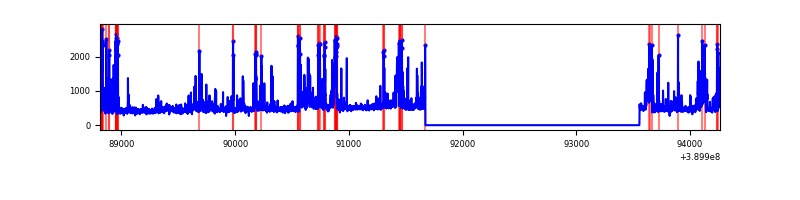

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5452 | 3570 | 12 | 12 | 0.22% | 0.34% |  |
| B | 5452 | 3570 | 80 | 80 | 1.47% | 2.24% |  |
| C | 5452 | 3570 | 52 | 52 | 0.95% | 1.46% |  |
| D | 5452 | 3570 | 185 | 185 | 3.39% | 5.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 92885 | 1090.44 | 410 | 401 | 84.8 |
| A | 15 | 237 | 52441 | 613.58 | 410 | 401 | 84.8 |
| A | 7 | 3 | 4747 | 51.24 | 410 | 401 | 84.8 |
| B | 5 | 172 | 362904 | 4611.29 | 405 | 395 | 78.6 |
| B | 5 | 255 | 116981 | 1483.03 | 405 | 395 | 78.6 |
| B | 4 | 232 | 52089 | 657.57 | 405 | 395 | 78.6 |
| C | 15 | 214 | 149787 | 1617.03 | 394 | 395 | 92.4 |
| C | 0 | 10 | 124031 | 1338.25 | 394 | 395 | 92.4 |
| C | 0 | 207 | 92116 | 992.8 | 394 | 395 | 92.4 |
| D | 2 | 250 | 372125 | 3873.13 | 388 | 376 | 96.0 |
| D | 7 | 223 | 158841 | 1650.99 | 388 | 376 | 96.0 |
| D | 10 | 118 | 50011 | 517.13 | 388 | 376 | 96.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

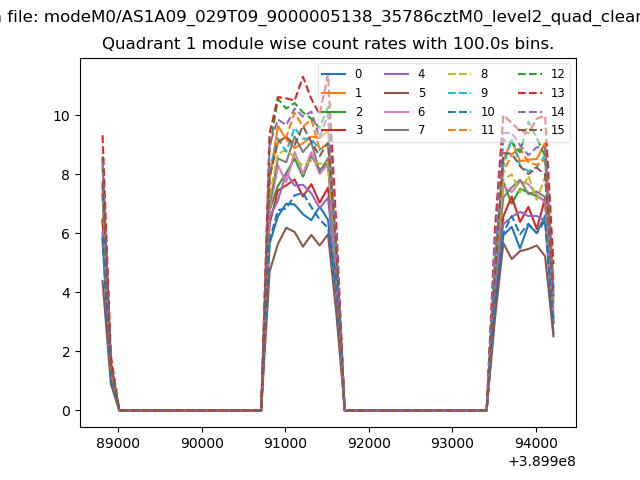

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

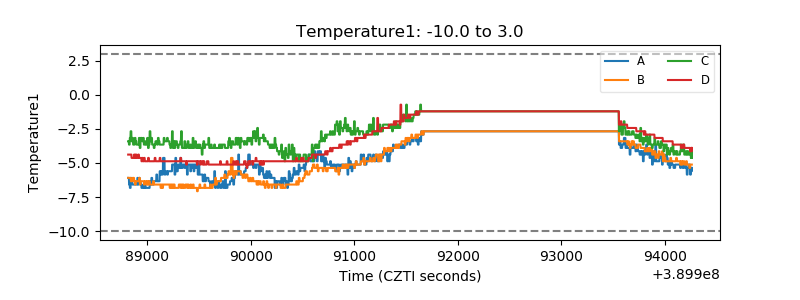

| Temperature 1 |  |

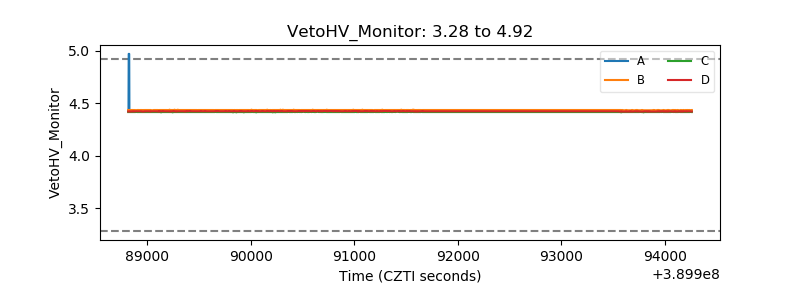

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

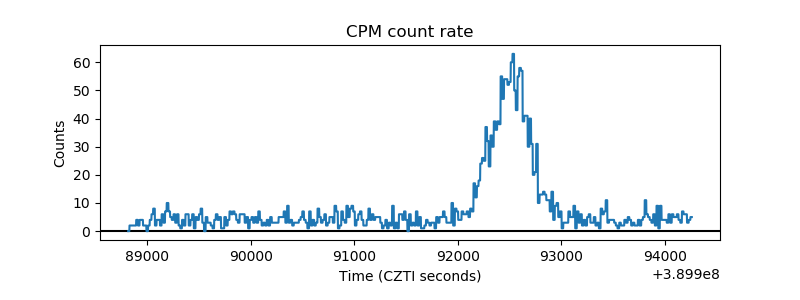

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

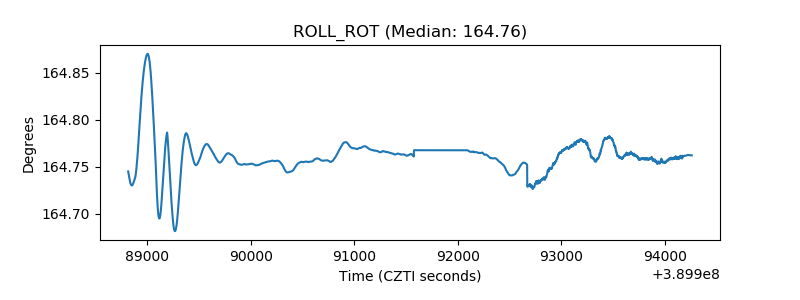

| _ROLL_ROT |  |
| _Roll_DEC |  |

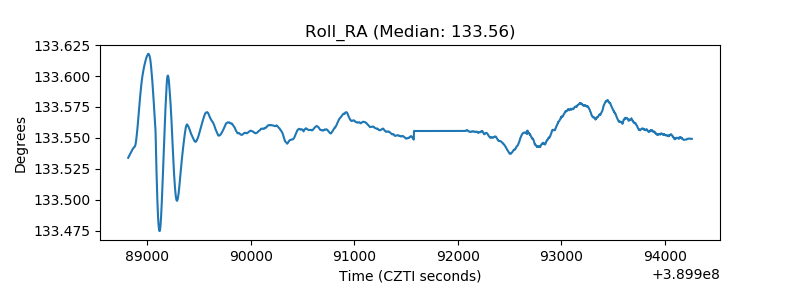

| _Roll_RA |  |
| Veto Counter |  |
