| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T09_9000005138_35792cztM0_level2.evt | modeM0/AS1A09_029T09_9000005138_35792cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,510,400 | 85,576,320 |
| Size | 514.5 MB | 81.6 MB |
| Events in quadrant A | 5,168,764 | 543,470 |
| Events in quadrant B | 4,046,430 | 548,330 |
| Events in quadrant C | 3,081,696 | 552,170 |
| Events in quadrant D | 3,631,681 | 524,095 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19674 | 3 |
| B | 0 | 16020 | 2 |
| C | 0 | 12773 | 2 |
| D | 0 | 14755 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6060 | 204 | 3.366337% |
| B | 6060 | 274 | 4.521452% |
| C | 6060 | 42 | 0.693069% |
| D | 6060 | 104 | 1.716172% |

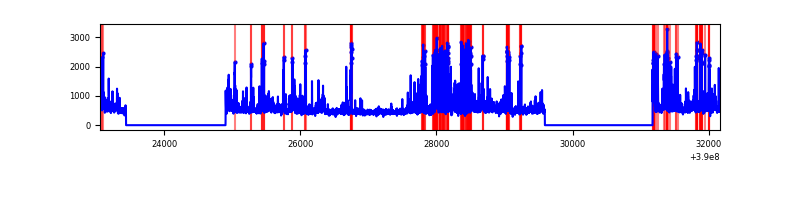

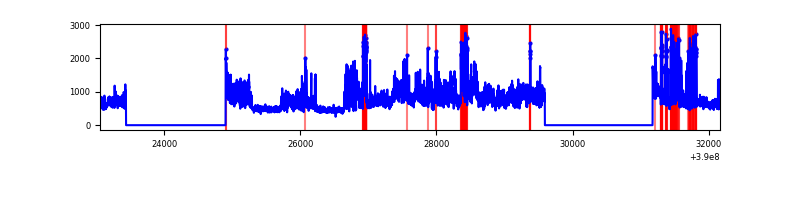

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9104 | 6062 | 155 | 155 | 1.70% | 2.56% |  |
| B | 9104 | 6062 | 197 | 197 | 2.16% | 3.25% |  |
| C | 9104 | 6062 | 33 | 33 | 0.36% | 0.54% |  |
| D | 9104 | 6062 | 89 | 89 | 0.98% | 1.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2295532 | 16214.79 | 697 | 685 | 141.5 |
| A | 10 | 83 | 169896 | 1195.6 | 697 | 685 | 141.5 |
| A | 13 | 6 | 10152 | 66.89 | 697 | 685 | 141.5 |
| B | 4 | 232 | 408155 | 3090.5 | 687 | 669 | 131.9 |
| B | 5 | 172 | 325840 | 2466.2 | 687 | 669 | 131.9 |
| B | 0 | 213 | 217066 | 1641.22 | 687 | 669 | 131.9 |
| C | 15 | 214 | 255389 | 1605.5 | 680 | 686 | 158.6 |
| C | 0 | 10 | 120096 | 752.69 | 680 | 686 | 158.6 |
| C | 0 | 207 | 31131 | 191.91 | 680 | 686 | 158.6 |
| D | 8 | 195 | 372317 | 2245.08 | 678 | 658 | 165.5 |
| D | 13 | 249 | 235556 | 1418.95 | 678 | 658 | 165.5 |
| D | 7 | 223 | 114278 | 686.34 | 678 | 658 | 165.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

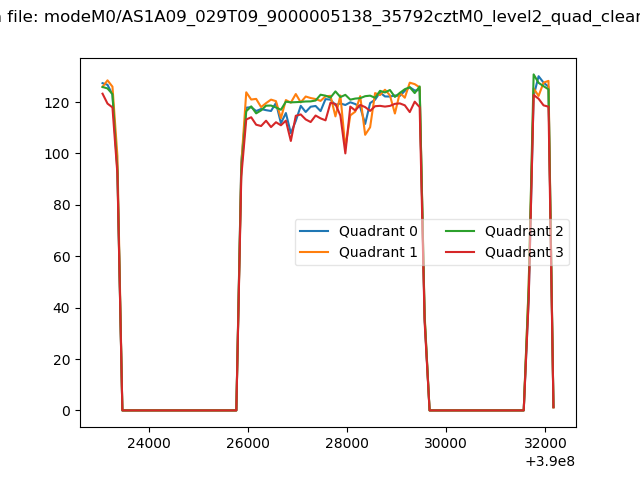

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

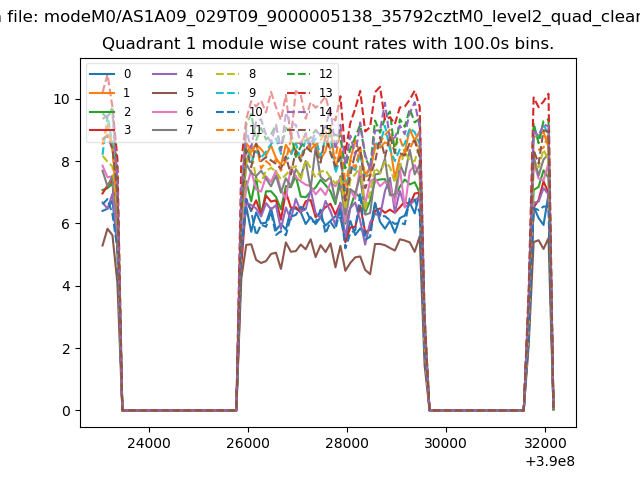

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

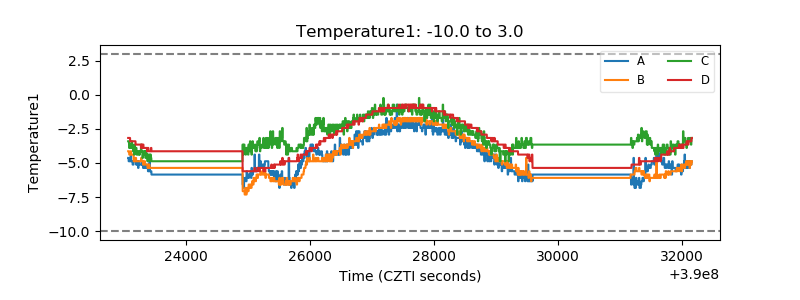

| Temperature 1 |  |

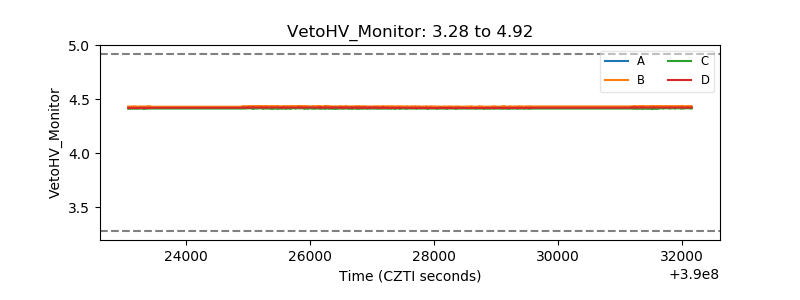

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

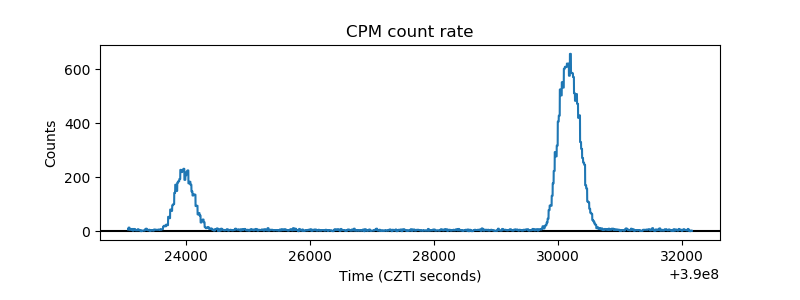

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

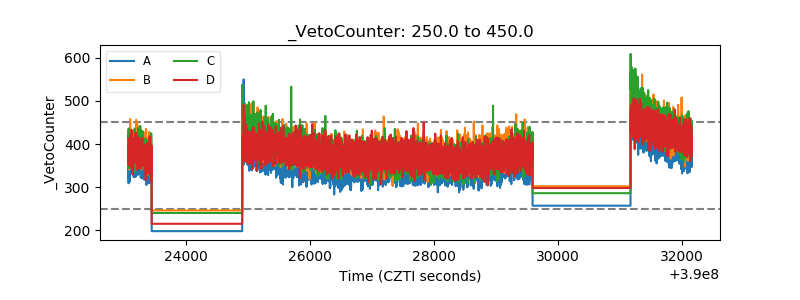

| Veto Counter |  |
