| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_029T10_9000005140_35803cztM0_level2.evt | modeM0/AS1A09_029T10_9000005140_35803cztM0_level2_quad_clean.evt |
| Size (bytes) | 441,048,960 | 65,859,840 |
| Size | 420.6 MB | 62.8 MB |
| Events in quadrant A | 2,459,394 | 420,993 |
| Events in quadrant B | 3,136,623 | 418,939 |
| Events in quadrant C | 3,376,699 | 402,497 |
| Events in quadrant D | 4,030,364 | 386,358 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10677 | 2 |
| B | 0 | 12726 | 2 |
| C | 0 | 13215 | 2 |
| D | 0 | 15588 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5213 | 6 | 0.115097% |
| B | 5213 | 131 | 2.512948% |
| C | 5213 | 154 | 2.954153% |
| D | 5213 | 359 | 6.886630% |

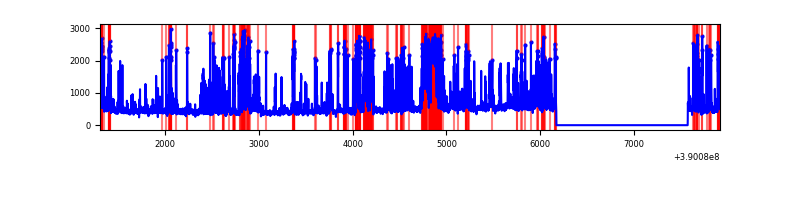

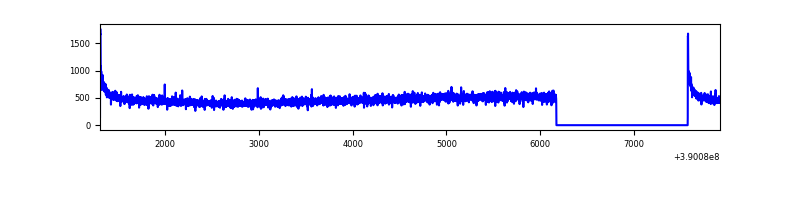

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6615 | 5214 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6615 | 5214 | 89 | 89 | 1.35% | 1.71% |  |
| C | 6615 | 5214 | 162 | 162 | 2.45% | 3.11% |  |
| D | 6615 | 5214 | 357 | 357 | 5.40% | 6.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 150671 | 1243.27 | 593 | 581 | 120.7 |
| A | 13 | 6 | 17255 | 138.12 | 593 | 581 | 120.7 |
| A | 3 | 137 | 6261 | 47.05 | 593 | 581 | 120.7 |
| B | 5 | 172 | 444094 | 3944.3 | 584 | 567 | 112.4 |
| B | 0 | 213 | 124735 | 1104.23 | 584 | 567 | 112.4 |
| B | 5 | 255 | 83120 | 734.15 | 584 | 567 | 112.4 |
| C | 0 | 10 | 395004 | 3008.09 | 563 | 565 | 131.1 |
| C | 0 | 207 | 388551 | 2958.88 | 563 | 565 | 131.1 |
| C | 15 | 214 | 216064 | 1643.45 | 563 | 565 | 131.1 |
| D | 14 | 52 | 685070 | 4997.95 | 559 | 543 | 137.0 |
| D | 13 | 249 | 478473 | 3489.52 | 559 | 543 | 137.0 |
| D | 12 | 6 | 212021 | 1544.07 | 559 | 543 | 137.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

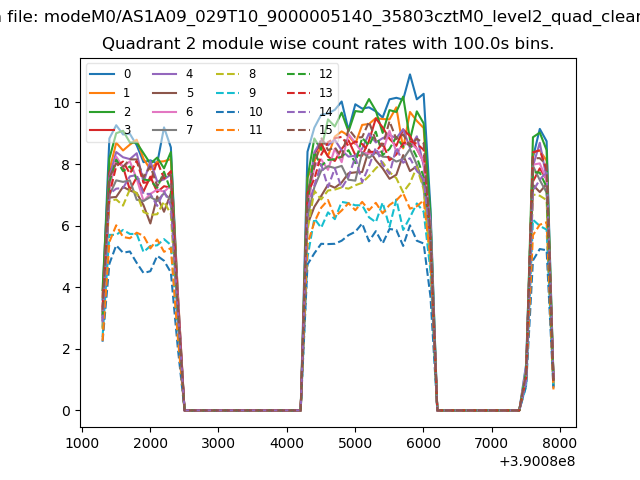

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

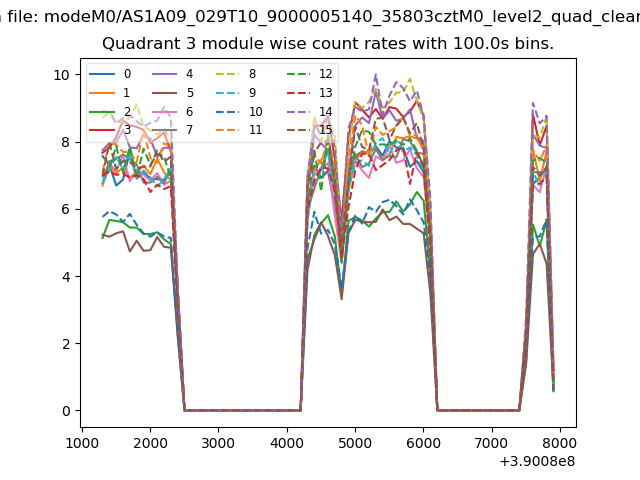

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

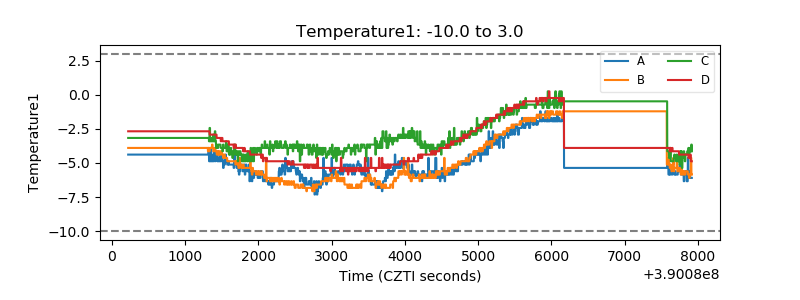

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

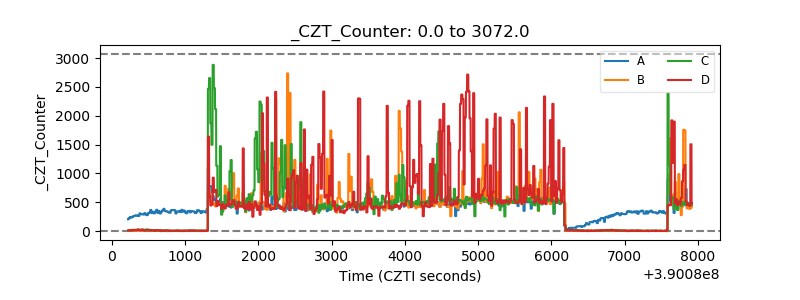

| CZT Counter |  |
| +2.5 Volts monitor |  |

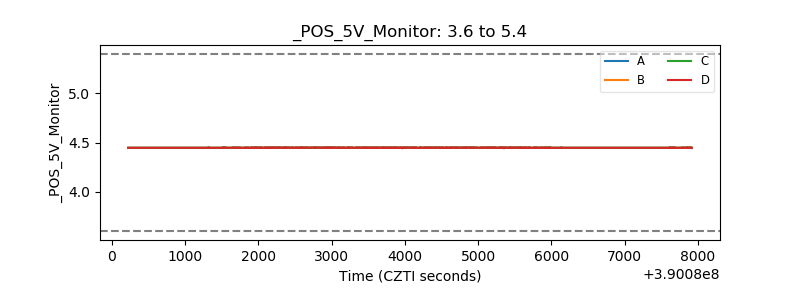

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

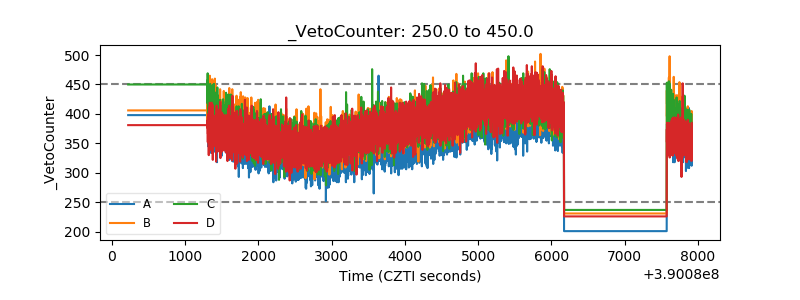

| Veto Counter |  |
