| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_146T01_9000005142_35803cztM0_level2.evt | modeM0/AS1A09_146T01_9000005142_35803cztM0_level2_quad_clean.evt |
| Size (bytes) | 376,580,160 | 50,132,160 |
| Size | 359.1 MB | 47.8 MB |
| Events in quadrant A | 2,610,666 | 302,292 |
| Events in quadrant B | 2,690,254 | 309,470 |
| Events in quadrant C | 3,077,337 | 298,533 |
| Events in quadrant D | 2,722,744 | 293,197 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 92 | 0 |
| B | 0 | 92 | 0 |
| C | 0 | 92 | 0 |
| D | 0 | 92 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10505 | 2 |
| B | 0 | 10999 | 1 |
| C | 0 | 11877 | 1 |
| D | 0 | 11184 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4463 | 196 | 4.391665% |
| B | 4463 | 90 | 2.016581% |
| C | 4463 | 82 | 1.837329% |
| D | 4463 | 127 | 2.845620% |

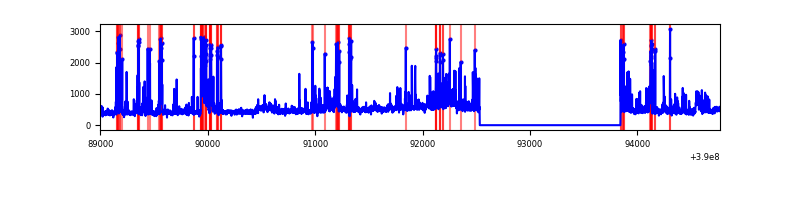

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5773 | 4463 | 186 | 186 | 3.22% | 4.17% |  |
| B | 5774 | 4464 | 48 | 48 | 0.83% | 1.08% |  |
| C | 5774 | 4464 | 76 | 76 | 1.32% | 1.70% |  |
| D | 5774 | 4464 | 103 | 103 | 1.78% | 2.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 554146 | 5439.04 | 502 | 491 | 101.8 |
| A | 10 | 83 | 100264 | 980.16 | 502 | 491 | 101.8 |
| A | 13 | 6 | 16166 | 153.99 | 502 | 491 | 101.8 |
| B | 5 | 172 | 238487 | 2398.55 | 505 | 491 | 99.2 |
| B | 0 | 213 | 127086 | 1275.84 | 505 | 491 | 99.2 |
| B | 4 | 171 | 94212 | 944.53 | 505 | 491 | 99.2 |
| C | 10 | 49 | 747560 | 6442.07 | 495 | 498 | 116.0 |
| C | 15 | 214 | 183277 | 1576.14 | 495 | 498 | 116.0 |
| C | 9 | 187 | 96800 | 830.43 | 495 | 498 | 116.0 |
| D | 13 | 249 | 551616 | 4521.41 | 495 | 482 | 121.9 |
| D | 10 | 118 | 61957 | 504.33 | 495 | 482 | 121.9 |
| D | 14 | 52 | 41243 | 334.4 | 495 | 482 | 121.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

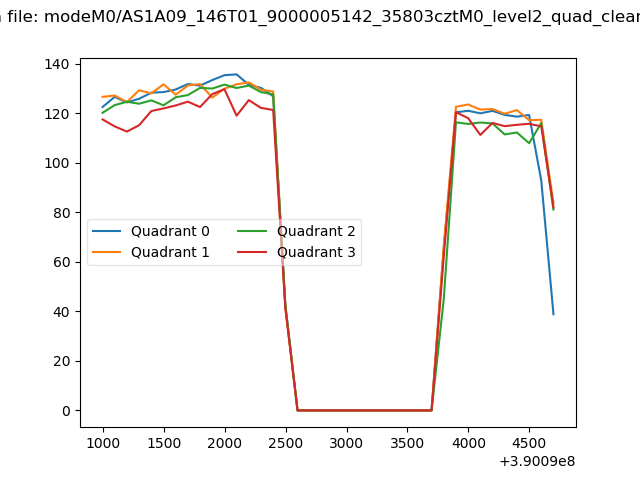

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

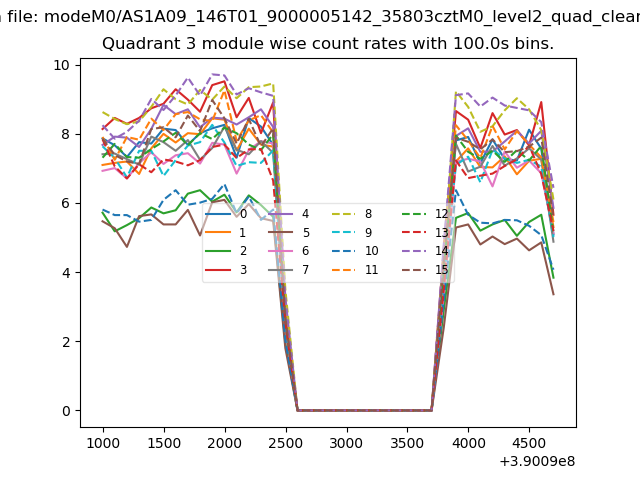

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

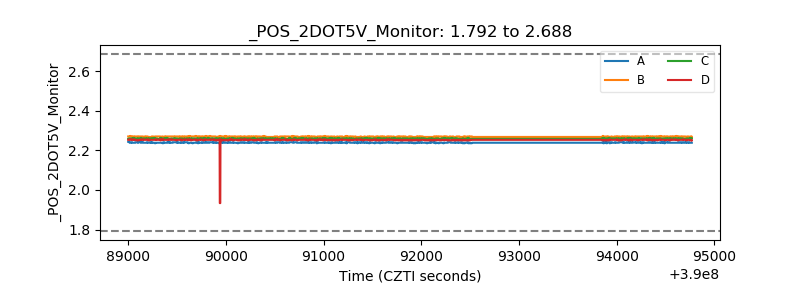

| CZT HV Monitor |  |
| D_VDD |  |

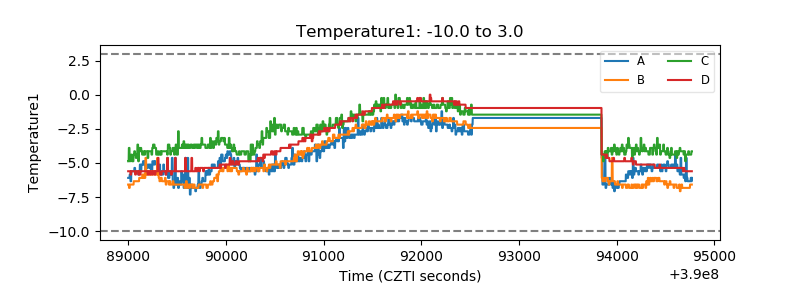

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

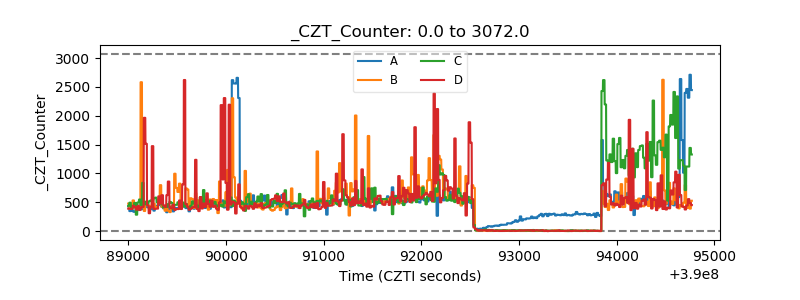

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

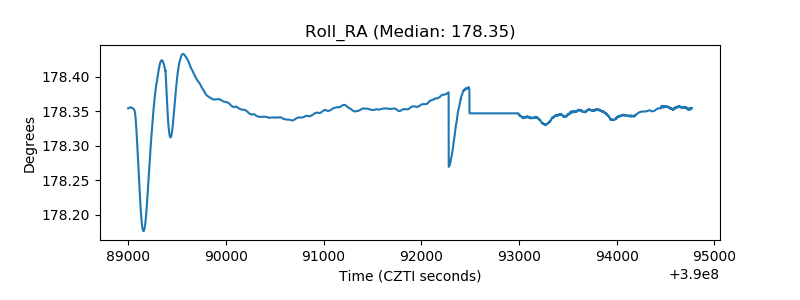

| _Roll_RA |  |

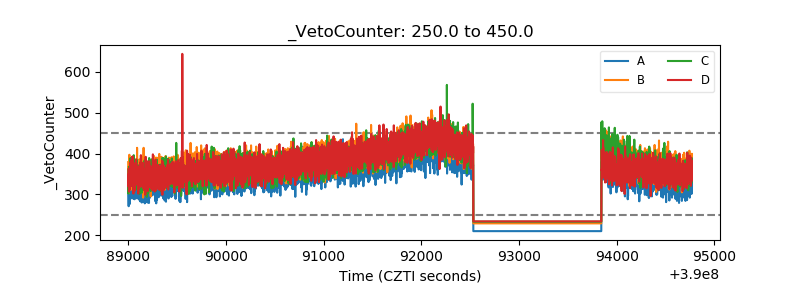

| Veto Counter |  |
