| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_146T01_9000005142_35810cztM0_level2.evt | modeM0/AS1A09_146T01_9000005142_35810cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,420,160 | 87,693,120 |
| Size | 434.3 MB | 83.6 MB |
| Events in quadrant A | 3,502,038 | 582,637 |
| Events in quadrant B | 3,229,034 | 583,610 |
| Events in quadrant C | 3,214,374 | 565,801 |
| Events in quadrant D | 3,475,626 | 540,504 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13927 | 3 |
| B | 0 | 13054 | 2 |
| C | 0 | 12574 | 2 |
| D | 0 | 13669 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5471 | 115 | 2.101992% |
| B | 5471 | 64 | 1.169804% |
| C | 5471 | 128 | 2.339609% |
| D | 5471 | 93 | 1.699872% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7384 | 5472 | 47 | 47 | 0.64% | 0.86% |  |
| B | 7384 | 5472 | 49 | 49 | 0.66% | 0.90% |  |
| C | 7384 | 5472 | 113 | 113 | 1.53% | 2.07% |  |
| D | 7384 | 5472 | 90 | 90 | 1.22% | 1.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 645252 | 4654.82 | 694 | 680 | 138.5 |
| A | 10 | 83 | 156555 | 1125.66 | 694 | 680 | 138.5 |
| A | 2 | 79 | 11529 | 78.34 | 694 | 680 | 138.5 |
| B | 5 | 172 | 171282 | 1327.74 | 683 | 666 | 128.5 |
| B | 5 | 255 | 137350 | 1063.68 | 683 | 666 | 128.5 |
| B | 0 | 190 | 129429 | 1002.03 | 683 | 666 | 128.5 |
| C | 0 | 10 | 364110 | 2423.29 | 656 | 660 | 150.0 |
| C | 15 | 214 | 231284 | 1537.68 | 656 | 660 | 150.0 |
| C | 0 | 207 | 34303 | 224.31 | 656 | 660 | 150.0 |
| D | 2 | 250 | 255348 | 1572.34 | 669 | 651 | 162.0 |
| D | 13 | 249 | 144776 | 889.74 | 669 | 651 | 162.0 |
| D | 8 | 195 | 108076 | 663.18 | 669 | 651 | 162.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

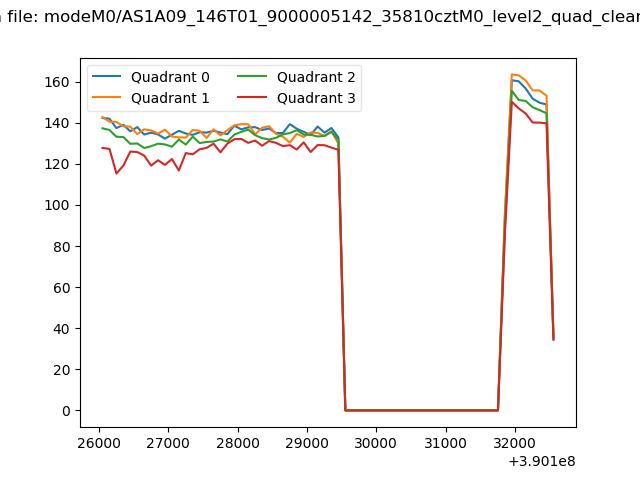

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

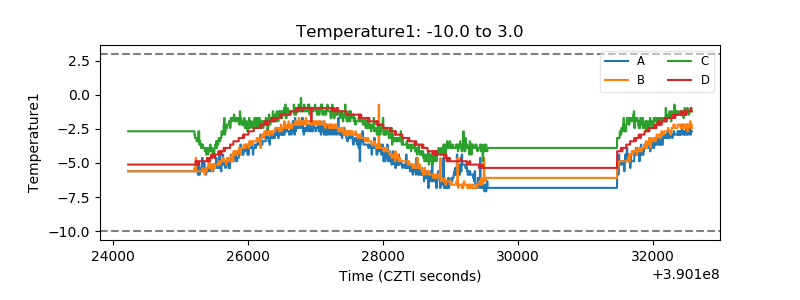

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

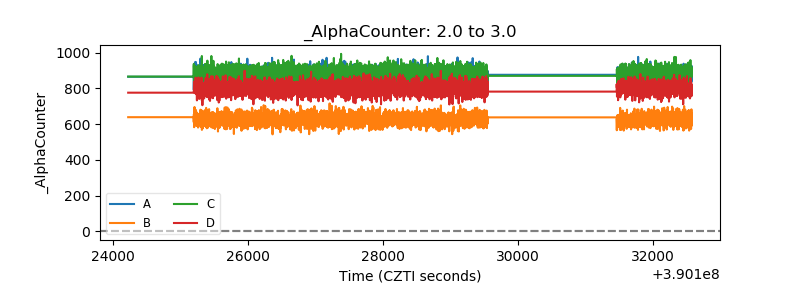

| Alpha Counter |  |
| _CPM_Rate |  |

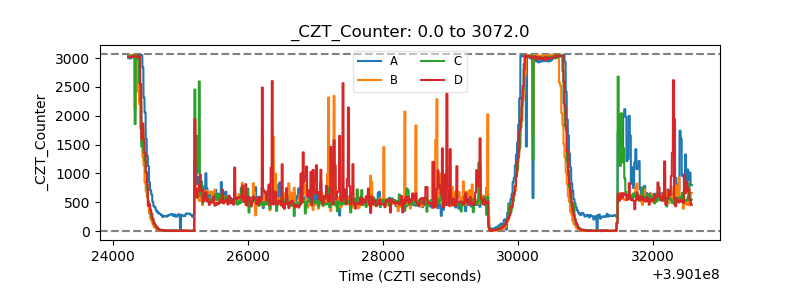

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

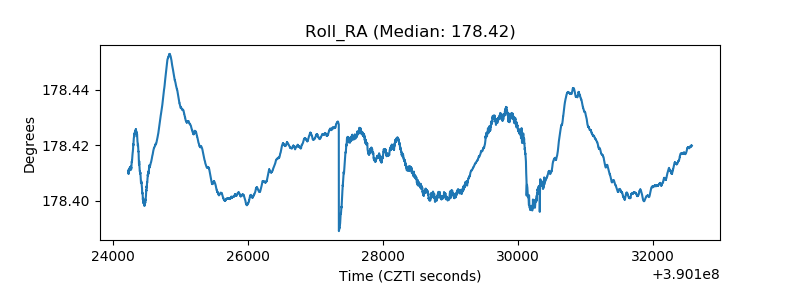

| _Roll_RA |  |
| Veto Counter |  |
