| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_146T01_9000005142_35821cztM0_level2.evt | modeM0/AS1A09_146T01_9000005142_35821cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,881,334,080 | 219,162,240 |
| Size | 1.8 GB | 209.0 MB |
| Events in quadrant A | 17,028,908 | 1,322,591 |
| Events in quadrant B | 12,544,860 | 1,368,062 |
| Events in quadrant C | 10,366,025 | 1,345,641 |
| Events in quadrant D | 15,703,307 | 1,235,285 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 404 | 0 |
| B | 0 | 404 | 0 |
| C | 0 | 404 | 0 |
| D | 0 | 404 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 63791 | 5 |
| B | 0 | 50115 | 4 |
| C | 0 | 42729 | 4 |
| D | 0 | 60347 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56 | 0 |
| B | 0 | 56 | 0 |
| C | 0 | 56 | 0 |
| D | 0 | 56 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19819 | 1534 | 7.740047% |
| B | 19819 | 758 | 3.824613% |
| C | 19819 | 239 | 1.205914% |
| D | 19819 | 1430 | 7.215298% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25460 | 19822 | 1236 | 1236 | 4.85% | 6.24% |  |
| B | 25460 | 19823 | 518 | 518 | 2.03% | 2.61% |  |
| C | 25460 | 19823 | 215 | 215 | 0.84% | 1.08% |  |
| D | 25460 | 19821 | 1245 | 1245 | 4.89% | 6.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 7697246 | 17054.23 | 2252 | 2204 | 451.2 |
| A | 10 | 83 | 441227 | 972.99 | 2252 | 2204 | 451.2 |
| A | 7 | 48 | 103090 | 223.59 | 2252 | 2204 | 451.2 |
| B | 5 | 172 | 1852684 | 4311.63 | 2251 | 2189 | 429.2 |
| B | 5 | 255 | 673818 | 1564.89 | 2251 | 2189 | 429.2 |
| B | 0 | 213 | 582270 | 1351.58 | 2251 | 2189 | 429.2 |
| C | 15 | 214 | 819098 | 1592.63 | 2226 | 2240 | 512.9 |
| C | 0 | 10 | 517667 | 1004.93 | 2226 | 2240 | 512.9 |
| C | 0 | 207 | 197561 | 380.82 | 2226 | 2240 | 512.9 |
| D | 2 | 250 | 1845245 | 3474.62 | 2186 | 2127 | 530.5 |
| D | 14 | 52 | 1451106 | 2731.59 | 2186 | 2127 | 530.5 |
| D | 1 | 52 | 1190491 | 2240.29 | 2186 | 2127 | 530.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

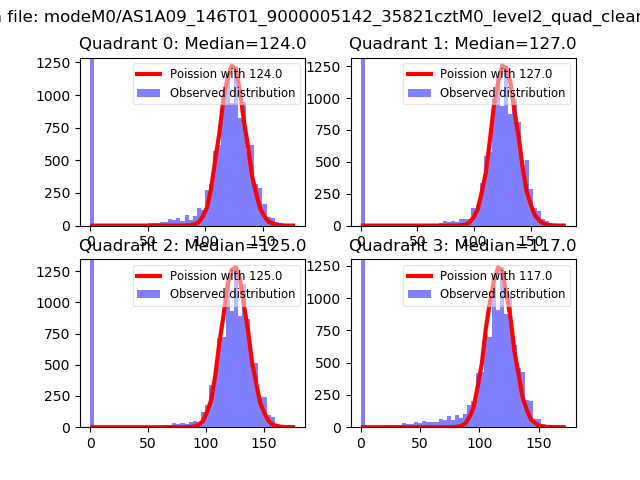

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

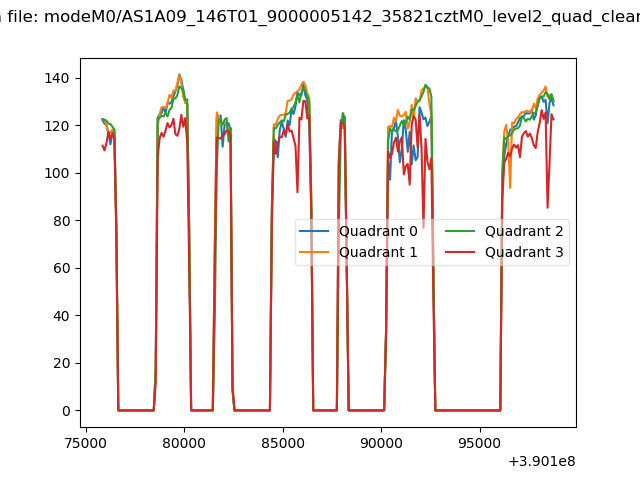

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

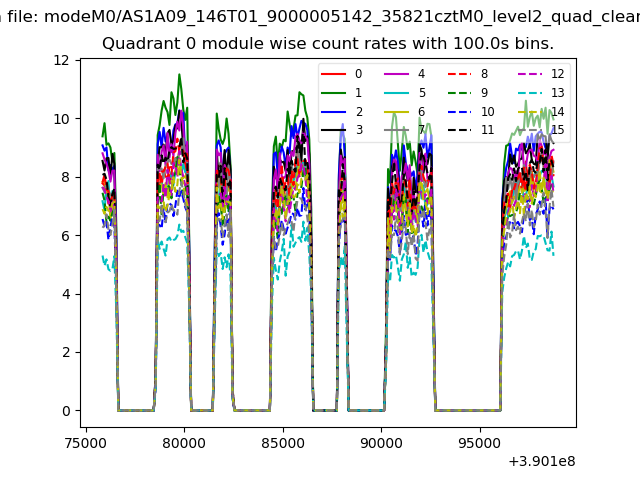

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

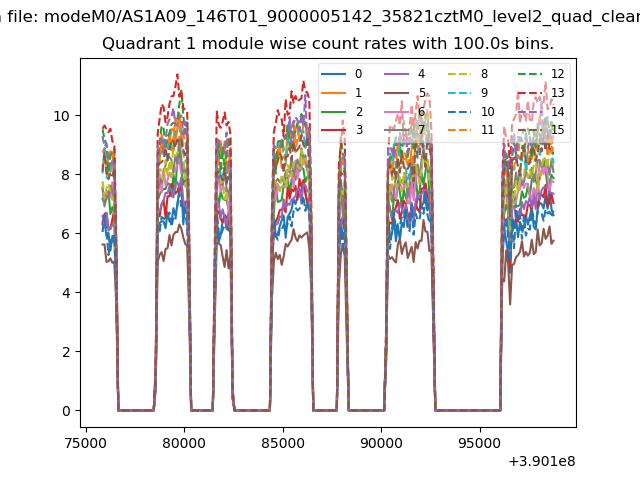

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

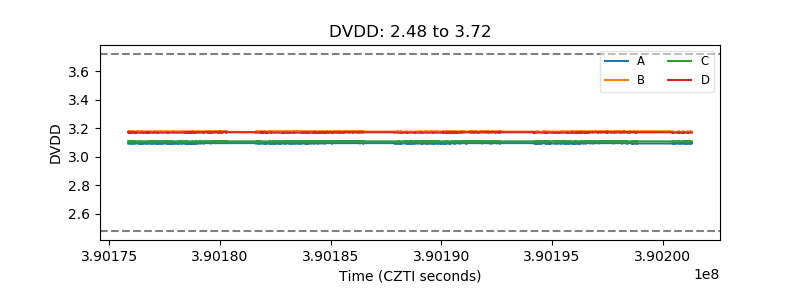

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

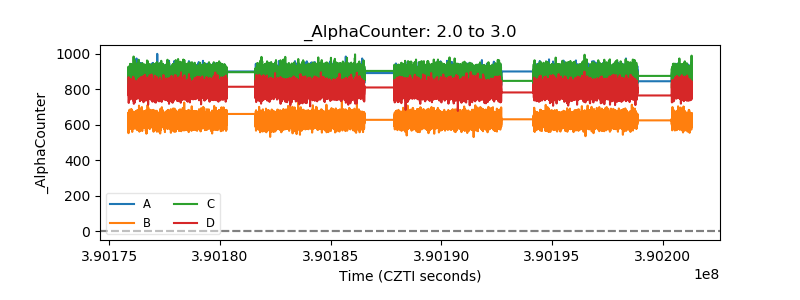

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

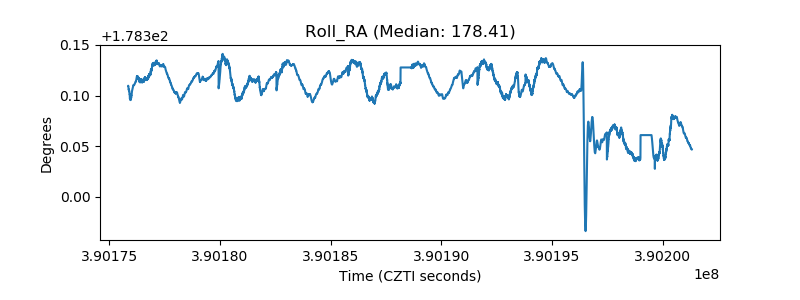

| _Roll_RA |  |

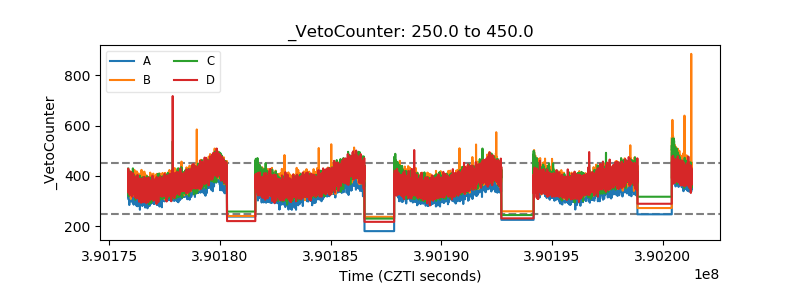

| Veto Counter |  |
