| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_146T01_9000005142_35824cztM0_level2.evt | modeM0/AS1A09_146T01_9000005142_35824cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,512,320 | 70,133,760 |
| Size | 417.2 MB | 66.9 MB |
| Events in quadrant A | 2,740,842 | 450,579 |
| Events in quadrant B | 3,116,331 | 451,539 |
| Events in quadrant C | 2,923,041 | 438,969 |
| Events in quadrant D | 4,109,337 | 410,658 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11391 | 3 |
| B | 0 | 12591 | 2 |
| C | 0 | 11683 | 2 |
| D | 0 | 15637 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5311 | 10 | 0.188288% |
| B | 5311 | 94 | 1.769912% |
| C | 5311 | 77 | 1.449821% |
| D | 5311 | 288 | 5.422708% |

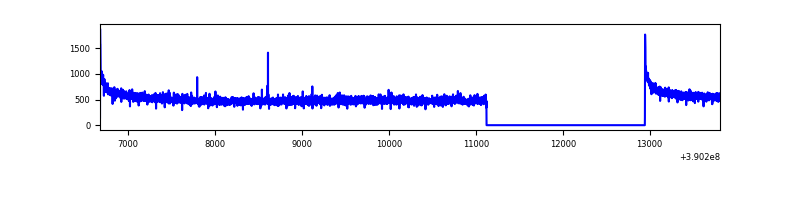

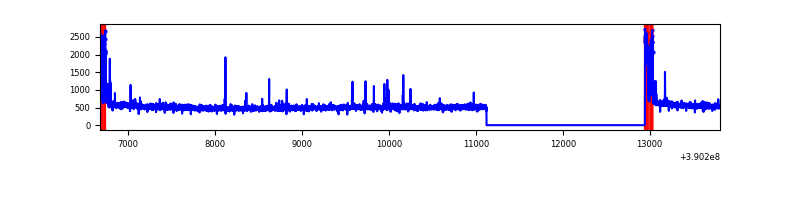

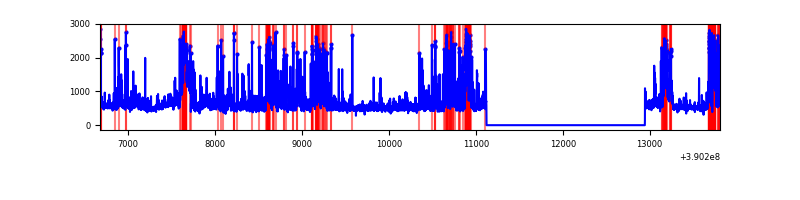

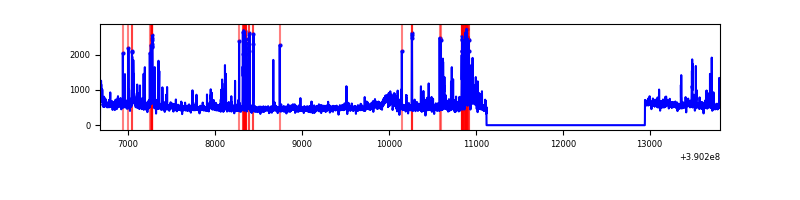

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7134 | 5311 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7133 | 5310 | 62 | 62 | 0.87% | 1.17% |  |
| C | 7133 | 5311 | 60 | 60 | 0.84% | 1.13% |  |
| D | 7134 | 5312 | 265 | 265 | 3.71% | 4.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 156458 | 1162.78 | 664 | 652 | 134.0 |
| A | 13 | 6 | 11259 | 79.16 | 664 | 652 | 134.0 |
| A | 13 | 254 | 7652 | 52.24 | 664 | 652 | 134.0 |
| B | 5 | 255 | 193196 | 1567.17 | 651 | 636 | 122.9 |
| B | 5 | 172 | 173869 | 1409.87 | 651 | 636 | 122.9 |
| B | 0 | 190 | 69839 | 563.21 | 651 | 636 | 122.9 |
| C | 0 | 10 | 231445 | 1576.26 | 630 | 633 | 146.4 |
| C | 15 | 214 | 225944 | 1538.7 | 630 | 633 | 146.4 |
| C | 0 | 207 | 10156 | 65.03 | 630 | 633 | 146.4 |
| D | 13 | 249 | 453573 | 2970.18 | 628 | 611 | 152.5 |
| D | 2 | 250 | 357068 | 2337.38 | 628 | 611 | 152.5 |
| D | 14 | 52 | 283335 | 1853.89 | 628 | 611 | 152.5 |

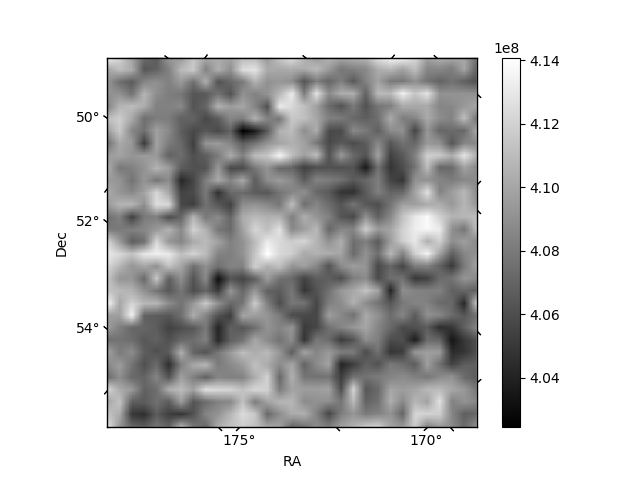

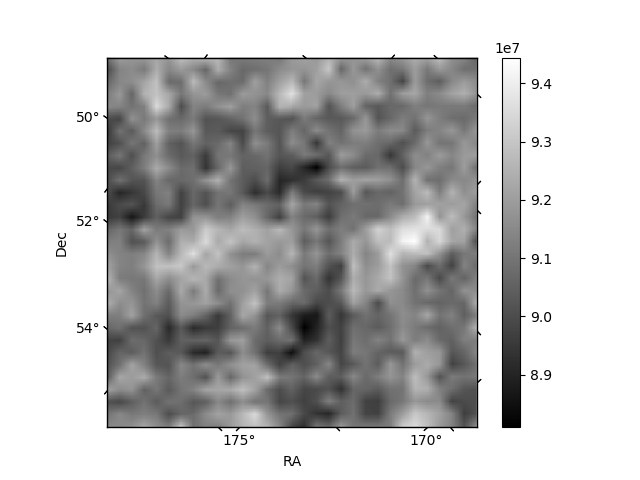

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

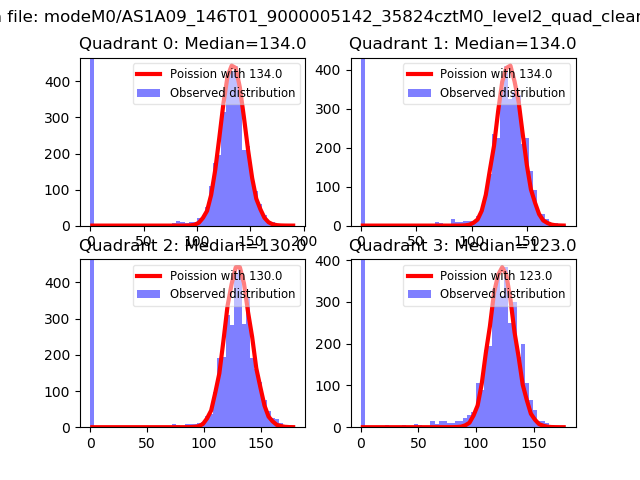

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

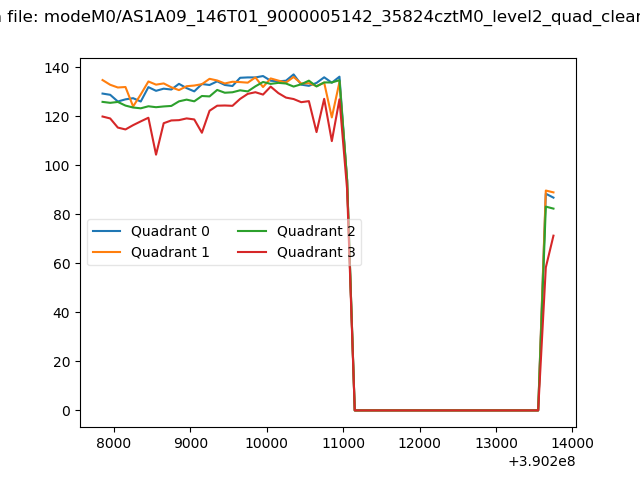

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

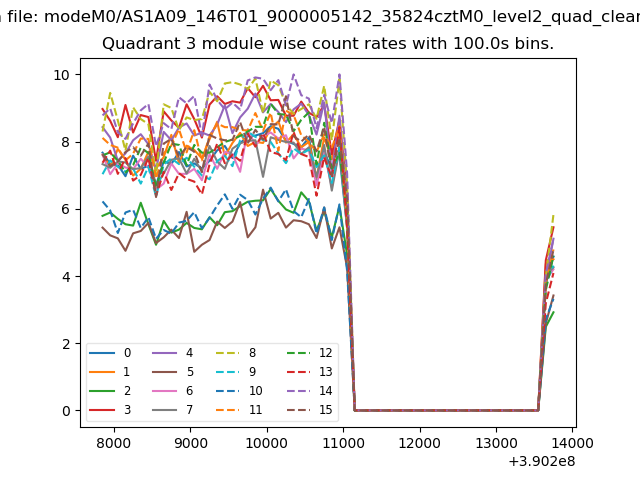

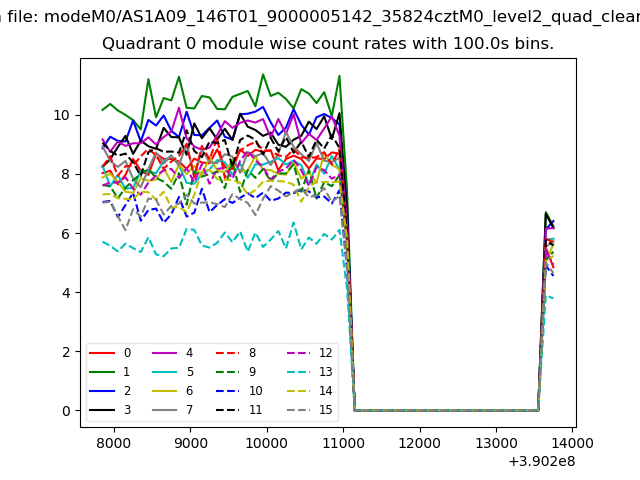

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

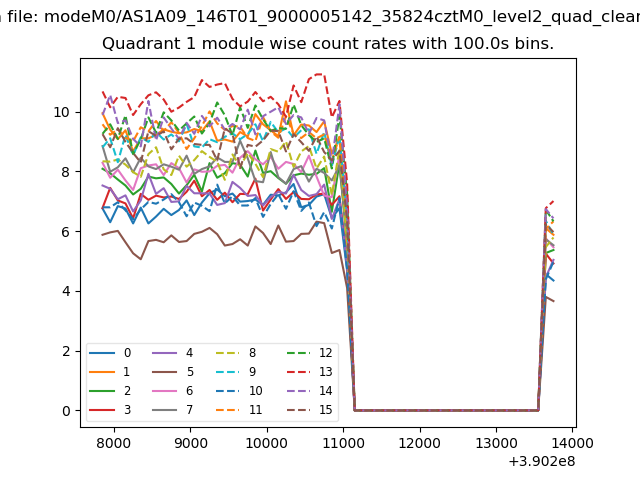

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

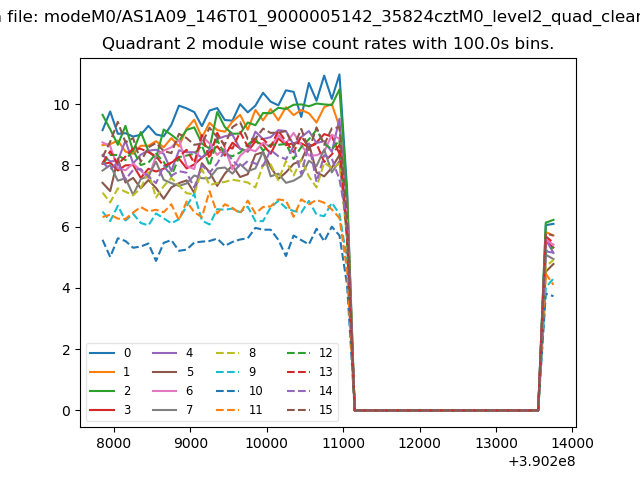

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

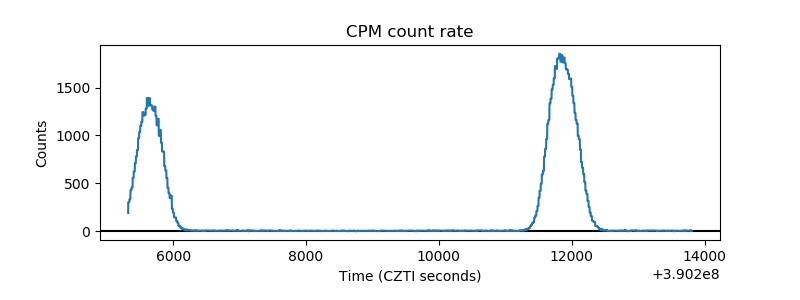

| _CPM_Rate |  |

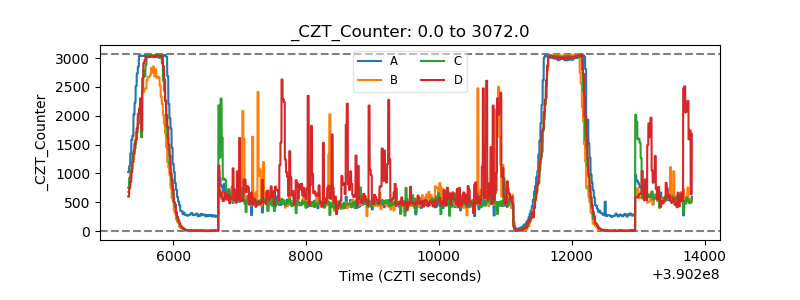

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

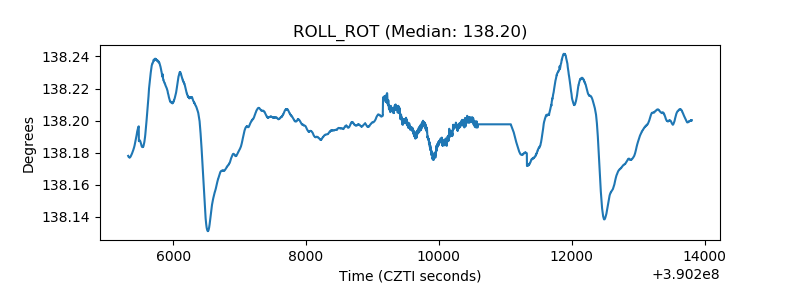

| _ROLL_ROT |  |

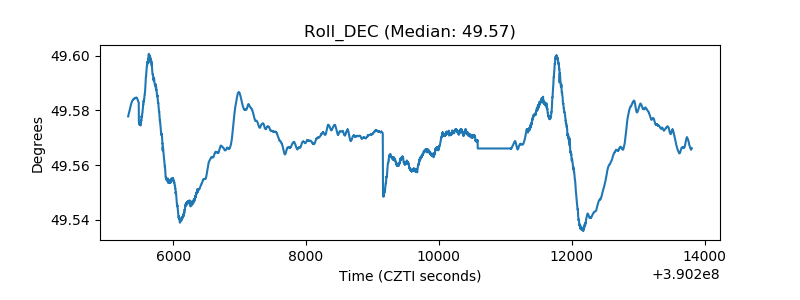

| _Roll_DEC |  |

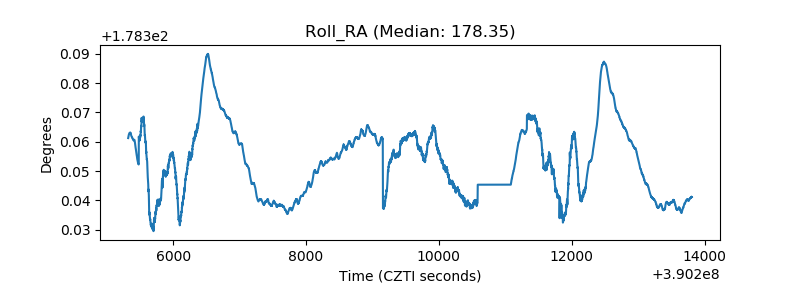

| _Roll_RA |  |

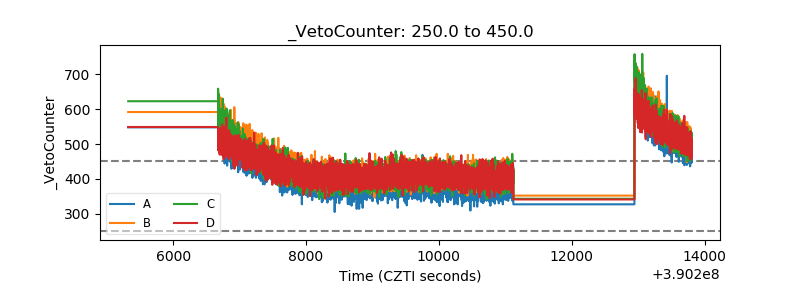

| Veto Counter |  |
