| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_146T01_9000005142_35825cztM0_level2.evt | modeM0/AS1A09_146T01_9000005142_35825cztM0_level2_quad_clean.evt |
| Size (bytes) | 349,793,280 | 66,683,520 |
| Size | 333.6 MB | 63.6 MB |
| Events in quadrant A | 2,168,051 | 450,661 |
| Events in quadrant B | 2,377,827 | 450,197 |
| Events in quadrant C | 2,151,699 | 437,117 |
| Events in quadrant D | 3,627,893 | 403,170 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82 | 0 |
| B | 0 | 82 | 0 |
| C | 0 | 82 | 0 |
| D | 0 | 82 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8762 | 1 |
| B | 0 | 9558 | 1 |
| C | 0 | 8487 | 1 |
| D | 0 | 13335 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3935 | 12 | 0.304956% |
| B | 3935 | 42 | 1.067344% |
| C | 3935 | 54 | 1.372300% |
| D | 3935 | 305 | 7.750953% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5757 | 3934 | 3 | 3 | 0.05% | 0.08% |  |
| B | 5757 | 3934 | 25 | 25 | 0.43% | 0.64% |  |
| C | 5757 | 3935 | 40 | 40 | 0.69% | 1.02% |  |
| D | 5757 | 3935 | 341 | 341 | 5.92% | 8.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 124480 | 1233.24 | 499 | 491 | 100.5 |
| A | 10 | 83 | 97763 | 967.51 | 499 | 491 | 100.5 |
| A | 8 | 144 | 11931 | 113.79 | 499 | 491 | 100.5 |
| B | 4 | 232 | 116713 | 1272.38 | 489 | 478 | 91.4 |
| B | 5 | 255 | 94911 | 1033.72 | 489 | 478 | 91.4 |
| B | 0 | 213 | 93775 | 1021.29 | 489 | 478 | 91.4 |
| C | 15 | 214 | 165199 | 1499.08 | 476 | 479 | 109.9 |
| C | 0 | 10 | 128992 | 1169.57 | 476 | 479 | 109.9 |
| C | 13 | 61 | 3216 | 24.91 | 476 | 479 | 109.9 |
| D | 7 | 223 | 674787 | 5883.61 | 472 | 460 | 114.6 |
| D | 2 | 250 | 613282 | 5346.97 | 472 | 460 | 114.6 |
| D | 13 | 249 | 254319 | 2214.96 | 472 | 460 | 114.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

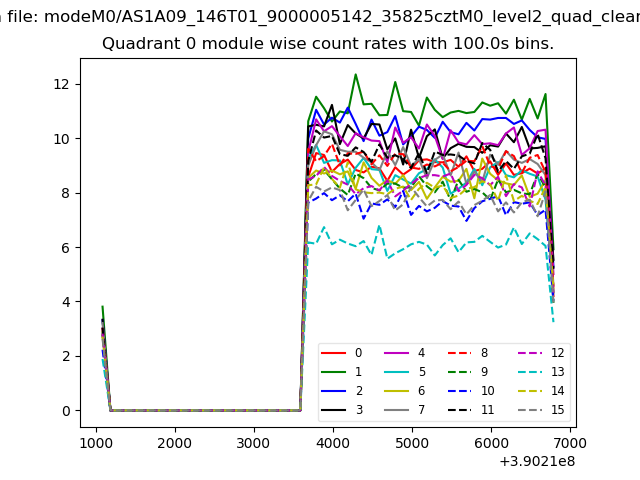

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

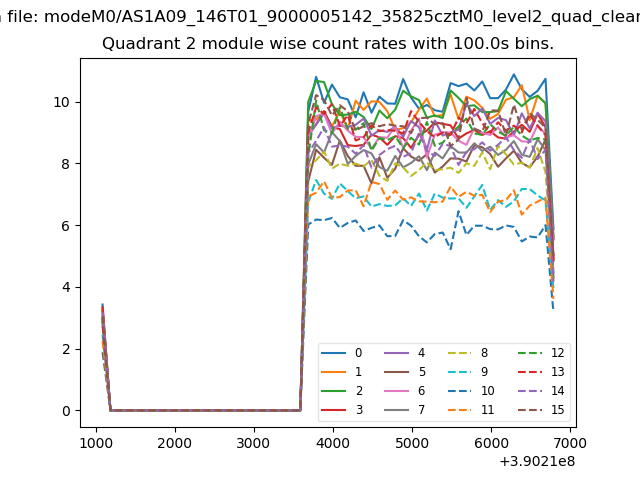

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

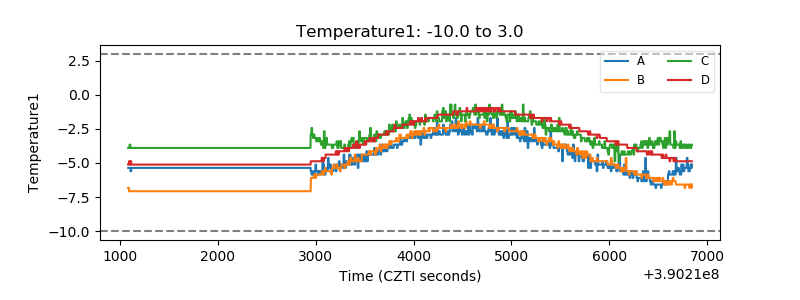

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

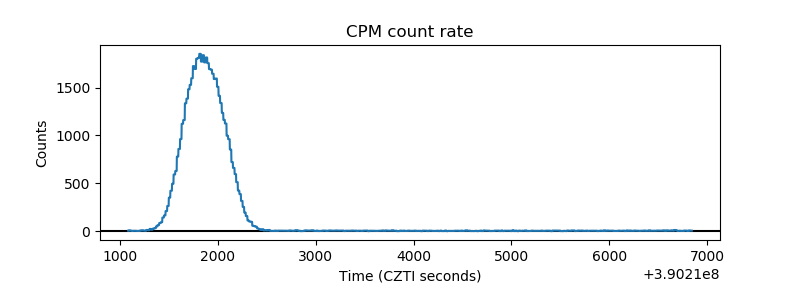

| _CPM_Rate |  |

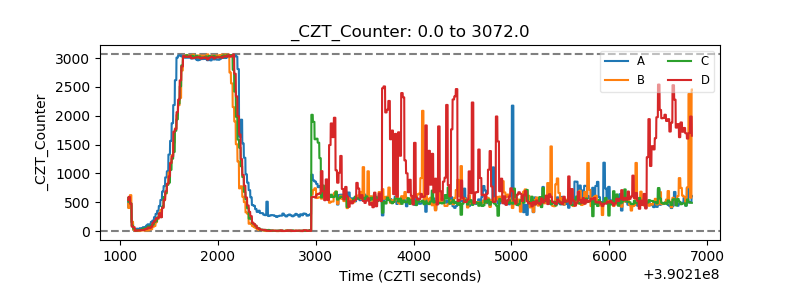

| CZT Counter |  |

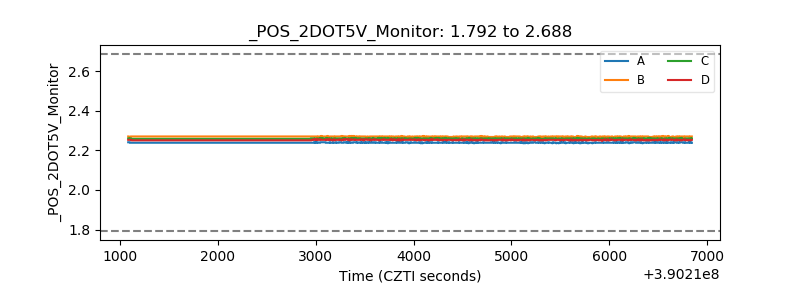

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

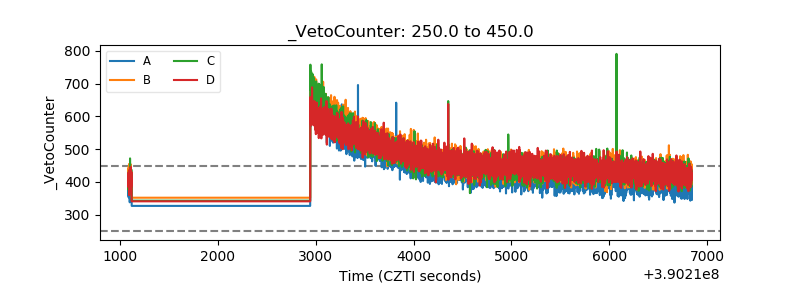

| Veto Counter |  |
