| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T19_9000005144_35826cztM0_level2.evt | modeM0/AS1A10_071T19_9000005144_35826cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,139,520 | 99,336,960 |
| Size | 453.1 MB | 94.7 MB |
| Events in quadrant A | 3,533,296 | 677,078 |
| Events in quadrant B | 3,295,981 | 681,162 |
| Events in quadrant C | 3,187,425 | 657,818 |
| Events in quadrant D | 4,014,222 | 621,653 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13949 | 3 |
| B | 0 | 13163 | 2 |
| C | 0 | 12639 | 2 |
| D | 0 | 15411 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5285 | 98 | 1.854305% |
| B | 5285 | 82 | 1.551561% |
| C | 5285 | 95 | 1.797540% |
| D | 5285 | 216 | 4.087039% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7348 | 5286 | 97 | 97 | 1.32% | 1.84% |  |
| B | 7347 | 5284 | 41 | 41 | 0.56% | 0.78% |  |
| C | 7347 | 5284 | 79 | 79 | 1.08% | 1.50% |  |
| D | 7347 | 5284 | 174 | 174 | 2.37% | 3.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 586448 | 4096.73 | 718 | 708 | 143.0 |
| A | 10 | 83 | 158496 | 1103.59 | 718 | 708 | 143.0 |
| A | 13 | 6 | 12045 | 79.29 | 718 | 708 | 143.0 |
| B | 5 | 172 | 227371 | 1713.86 | 699 | 683 | 132.3 |
| B | 4 | 232 | 113073 | 849.72 | 699 | 683 | 132.3 |
| B | 5 | 255 | 109588 | 823.37 | 699 | 683 | 132.3 |
| C | 15 | 214 | 225397 | 1439.38 | 678 | 684 | 156.1 |
| C | 0 | 10 | 206390 | 1317.64 | 678 | 684 | 156.1 |
| C | 0 | 207 | 108682 | 691.77 | 678 | 684 | 156.1 |
| D | 13 | 249 | 438109 | 2618.11 | 684 | 667 | 167.1 |
| D | 7 | 223 | 307305 | 1835.25 | 684 | 667 | 167.1 |
| D | 13 | 13 | 255360 | 1524.35 | 684 | 667 | 167.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

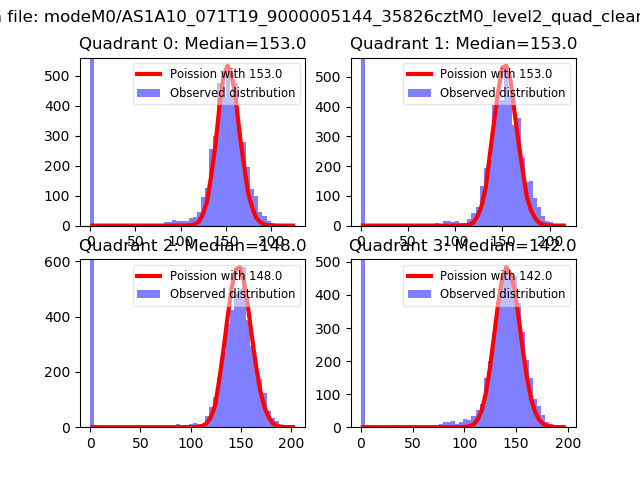

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

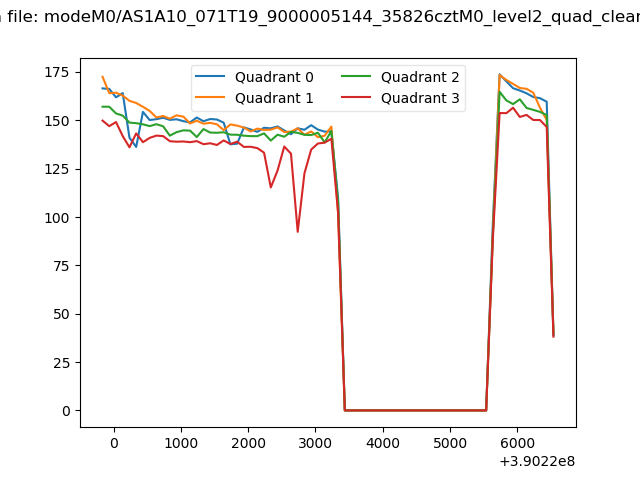

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

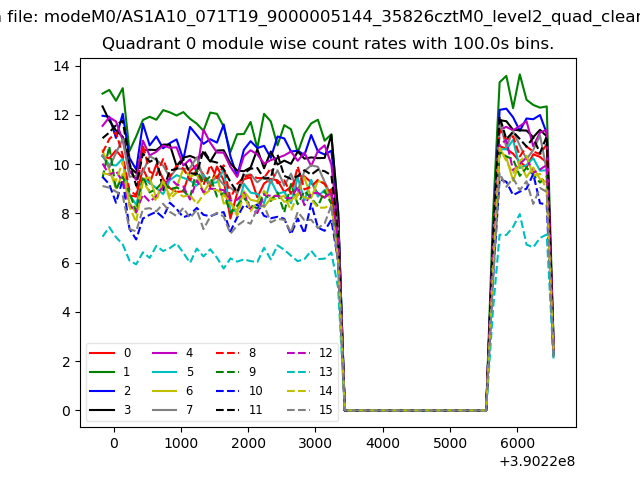

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

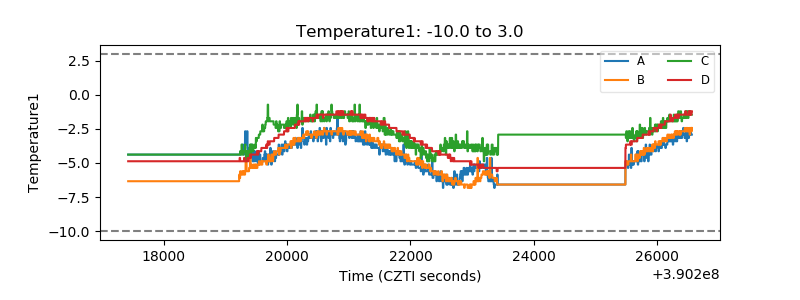

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

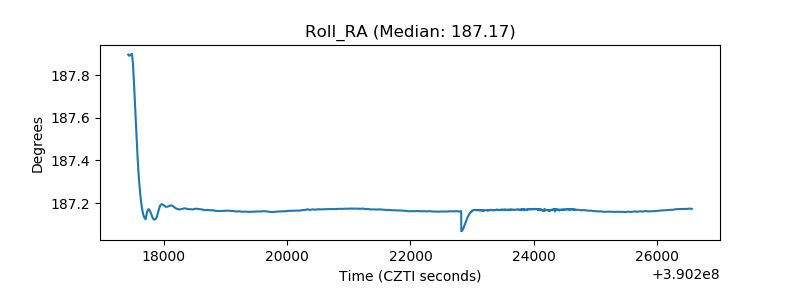

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
