| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T19_9000005144_35831cztM0_level2.evt | modeM0/AS1A10_071T19_9000005144_35831cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,993,920 | 64,926,720 |
| Size | 562.7 MB | 61.9 MB |
| Events in quadrant A | 5,929,620 | 365,357 |
| Events in quadrant B | 2,970,319 | 436,909 |
| Events in quadrant C | 2,947,376 | 429,921 |
| Events in quadrant D | 5,630,551 | 329,805 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21539 | 3 |
| B | 0 | 12554 | 2 |
| C | 0 | 12309 | 2 |
| D | 0 | 20602 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5755 | 1269 | 22.050391% |
| B | 5755 | 79 | 1.372719% |
| C | 5755 | 64 | 1.112076% |
| D | 5755 | 1130 | 19.635100% |

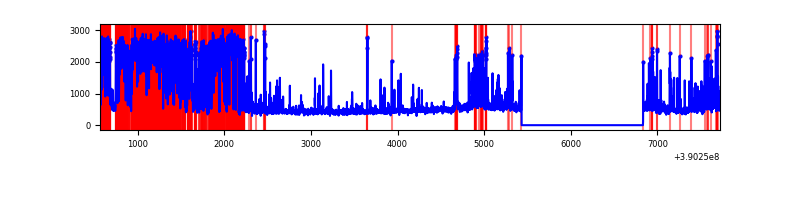

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7158 | 5756 | 1278 | 1278 | 17.85% | 22.20% |  |
| B | 7158 | 5756 | 56 | 56 | 0.78% | 0.97% |  |
| C | 7158 | 5756 | 59 | 59 | 0.82% | 1.03% |  |
| D | 7158 | 5756 | 1114 | 1114 | 15.56% | 19.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 3404188 | 27508.19 | 611 | 601 | 123.7 |
| A | 10 | 83 | 140714 | 1132.41 | 611 | 601 | 123.7 |
| A | 13 | 6 | 14274 | 110.51 | 611 | 601 | 123.7 |
| B | 5 | 252 | 121094 | 951.82 | 655 | 638 | 126.6 |
| B | 5 | 172 | 119631 | 940.26 | 655 | 638 | 126.6 |
| B | 5 | 255 | 68715 | 537.93 | 655 | 638 | 126.6 |
| C | 15 | 214 | 241056 | 1598.43 | 641 | 644 | 150.4 |
| C | 0 | 10 | 195373 | 1294.7 | 641 | 644 | 150.4 |
| C | 0 | 207 | 13029 | 82.34 | 641 | 644 | 150.4 |
| D | 2 | 250 | 2632674 | 18347.01 | 574 | 557 | 143.5 |
| D | 7 | 223 | 392675 | 2733.23 | 574 | 557 | 143.5 |
| D | 13 | 249 | 144702 | 1004.75 | 574 | 557 | 143.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

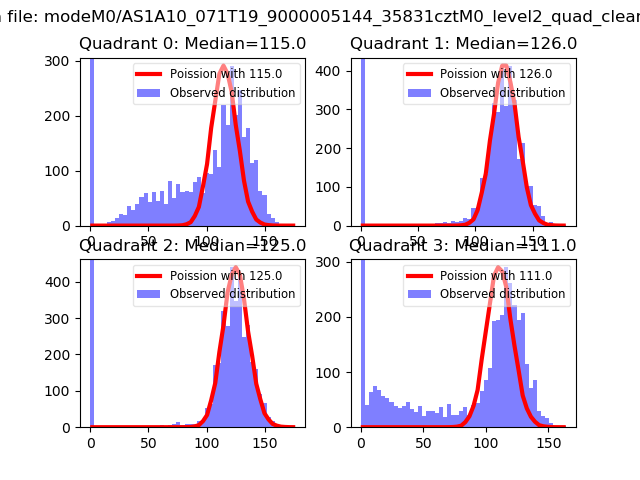

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

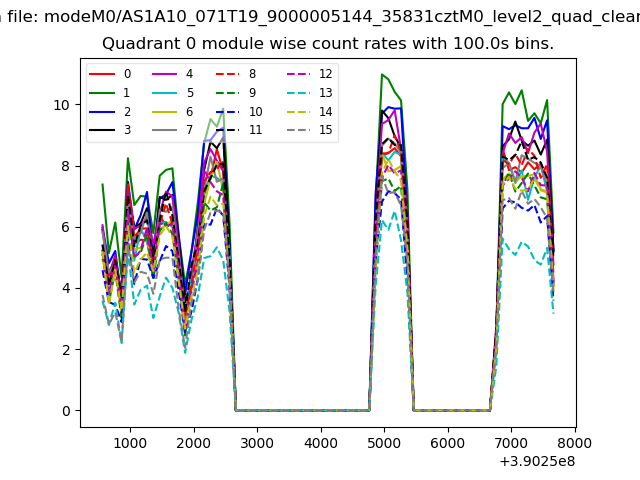

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

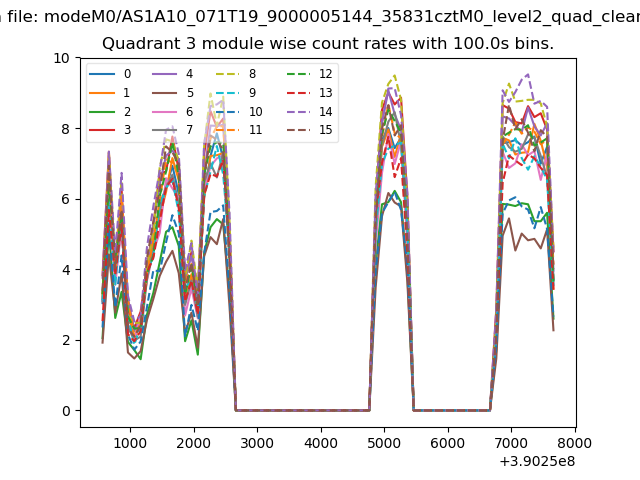

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

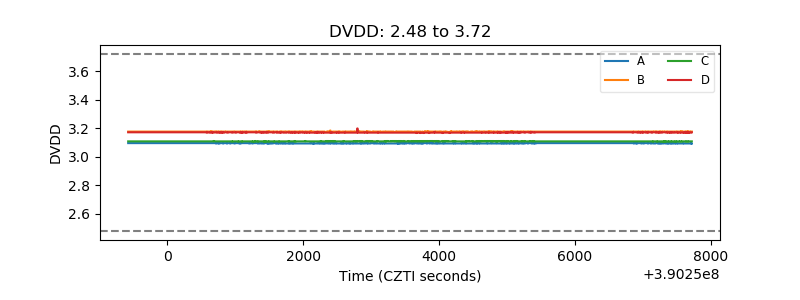

| D_VDD |  |

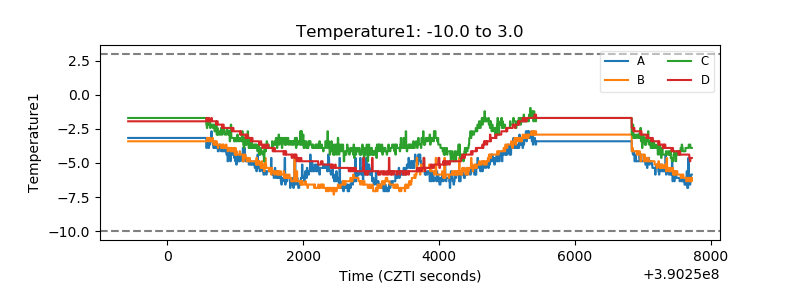

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

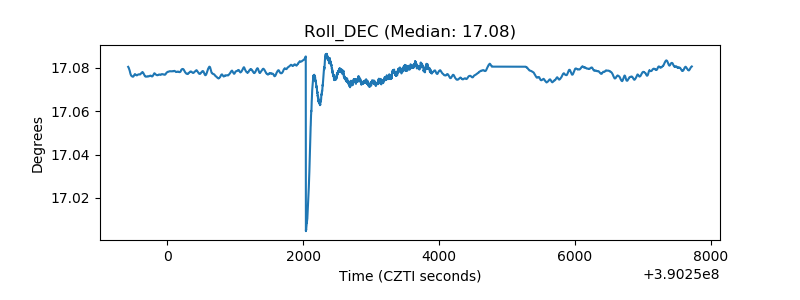

| _Roll_DEC |  |
| _Roll_RA |  |

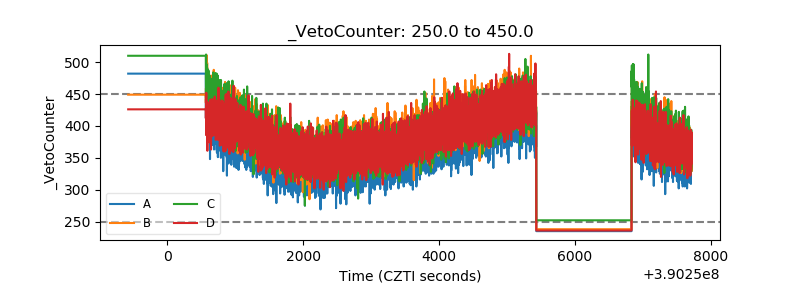

| Veto Counter |  |
