| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T19_9000005144_35832cztM0_level2.evt | modeM0/AS1A10_071T19_9000005144_35832cztM0_level2_quad_clean.evt |
| Size (bytes) | 581,849,280 | 72,434,880 |
| Size | 554.9 MB | 69.1 MB |
| Events in quadrant A | 6,814,374 | 392,031 |
| Events in quadrant B | 3,284,183 | 469,258 |
| Events in quadrant C | 3,201,411 | 464,658 |
| Events in quadrant D | 3,910,940 | 443,938 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24484 | 3 |
| B | 0 | 13667 | 3 |
| C | 0 | 13250 | 2 |
| D | 0 | 15707 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6053 | 1679 | 27.738312% |
| B | 6052 | 114 | 1.883675% |
| C | 6053 | 97 | 1.602511% |
| D | 6052 | 198 | 3.271646% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8769 | 6055 | 1433 | 1433 | 16.34% | 23.67% |  |
| B | 8769 | 6055 | 101 | 101 | 1.15% | 1.67% |  |
| C | 8769 | 6055 | 83 | 83 | 0.95% | 1.37% |  |
| D | 8769 | 6055 | 162 | 162 | 1.85% | 2.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 4318163 | 35693.93 | 596 | 585 | 121.0 |
| A | 10 | 83 | 144201 | 1187.29 | 596 | 585 | 121.0 |
| A | 10 | 248 | 25471 | 205.74 | 596 | 585 | 121.0 |
| B | 5 | 172 | 199348 | 1489.71 | 687 | 668 | 133.4 |
| B | 5 | 252 | 122160 | 910.95 | 687 | 668 | 133.4 |
| B | 5 | 255 | 92993 | 692.26 | 687 | 668 | 133.4 |
| C | 15 | 214 | 252724 | 1596.74 | 673 | 677 | 157.9 |
| C | 0 | 10 | 249047 | 1573.45 | 673 | 677 | 157.9 |
| C | 0 | 207 | 61106 | 382.82 | 673 | 677 | 157.9 |
| D | 2 | 250 | 435057 | 2633.47 | 670 | 651 | 165.0 |
| D | 13 | 249 | 369390 | 2235.38 | 670 | 651 | 165.0 |
| D | 7 | 223 | 157068 | 948.24 | 670 | 651 | 165.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

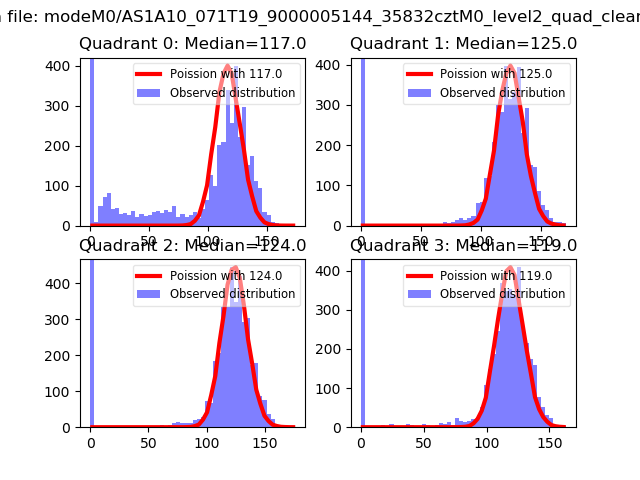

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

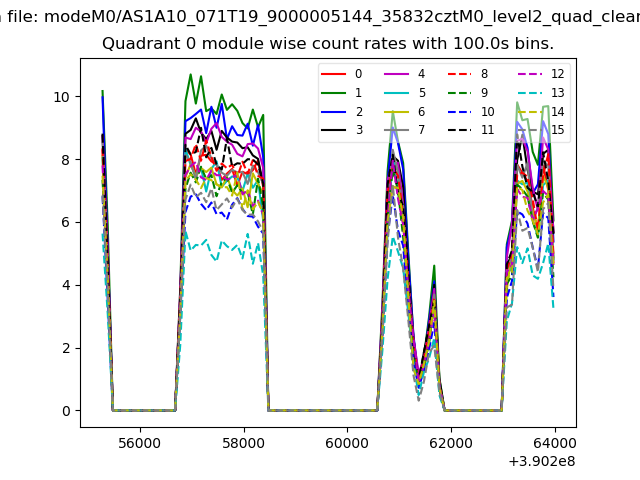

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

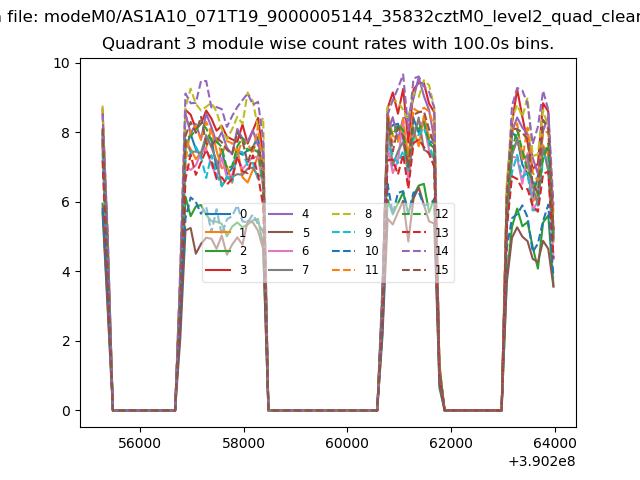

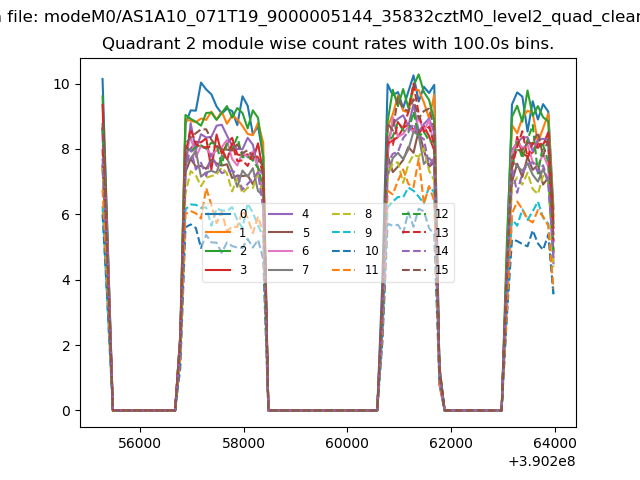

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

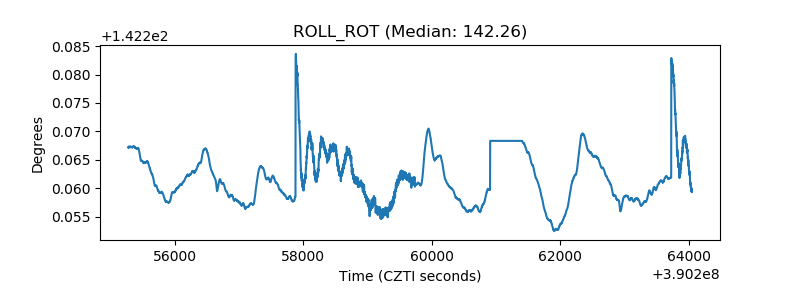

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
