| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T01_9000005146_35846cztM0_level2.evt | modeM0/AS1A11_080T01_9000005146_35846cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,220,800 | 101,301,120 |
| Size | 409.3 MB | 96.6 MB |
| Events in quadrant A | 2,864,727 | 678,585 |
| Events in quadrant B | 3,356,037 | 677,157 |
| Events in quadrant C | 3,220,770 | 664,934 |
| Events in quadrant D | 3,162,611 | 641,342 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12048 | 3 |
| B | 0 | 13628 | 2 |
| C | 0 | 12828 | 2 |
| D | 0 | 13159 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5802 | 10 | 0.172354% |
| B | 5802 | 120 | 2.068252% |
| C | 5802 | 125 | 2.154430% |
| D | 5802 | 61 | 1.051362% |

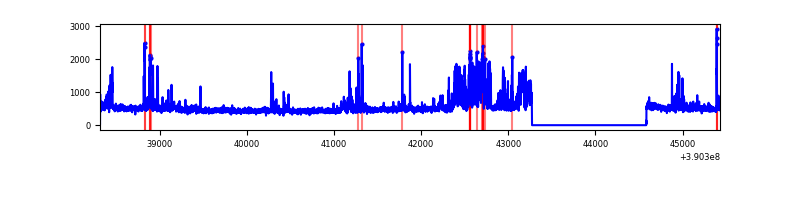

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7115 | 5803 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7115 | 5803 | 27 | 27 | 0.38% | 0.47% |  |
| C | 7115 | 5803 | 100 | 100 | 1.41% | 1.72% |  |
| D | 7115 | 5803 | 52 | 52 | 0.73% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 163919 | 1137.51 | 696 | 685 | 143.5 |
| A | 13 | 254 | 8659 | 55.57 | 696 | 685 | 143.5 |
| A | 13 | 6 | 8203 | 52.39 | 696 | 685 | 143.5 |
| B | 5 | 172 | 301446 | 2264.53 | 687 | 671 | 132.8 |
| B | 4 | 232 | 216682 | 1626.34 | 687 | 671 | 132.8 |
| B | 0 | 214 | 52240 | 388.26 | 687 | 671 | 132.8 |
| C | 0 | 10 | 273727 | 1743.78 | 670 | 678 | 156.6 |
| C | 15 | 214 | 240463 | 1531.35 | 670 | 678 | 156.6 |
| C | 0 | 207 | 70330 | 444.82 | 670 | 678 | 156.6 |
| D | 7 | 223 | 128901 | 765.29 | 675 | 658 | 167.6 |
| D | 13 | 249 | 123884 | 735.35 | 675 | 658 | 167.6 |
| D | 10 | 118 | 85383 | 505.6 | 675 | 658 | 167.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

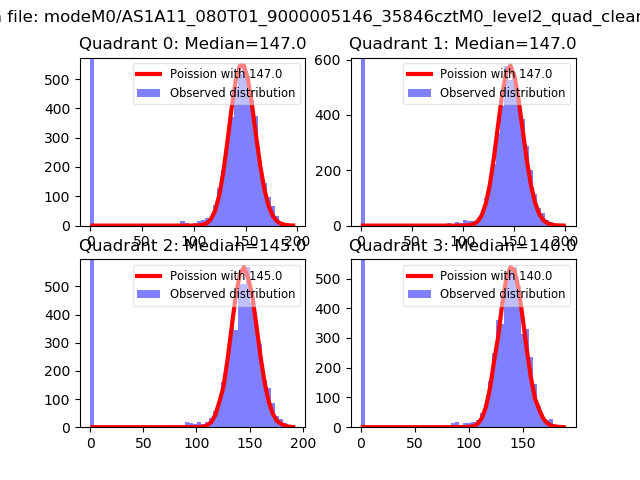

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

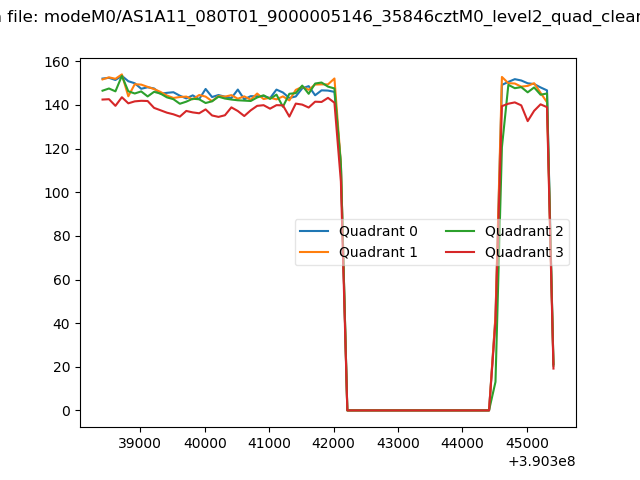

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

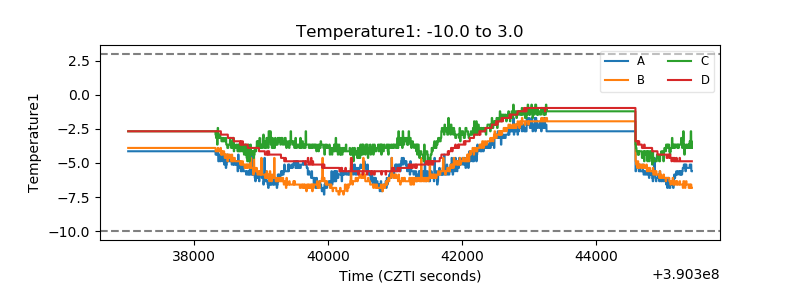

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

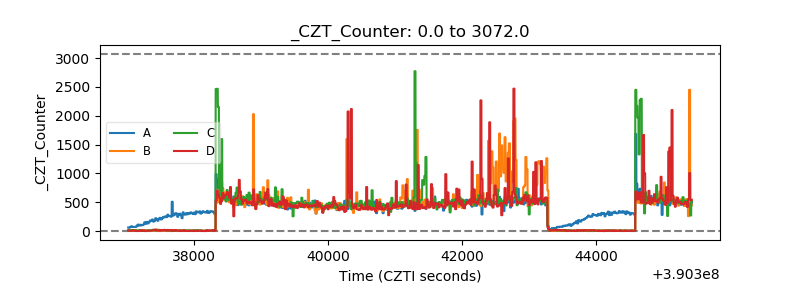

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

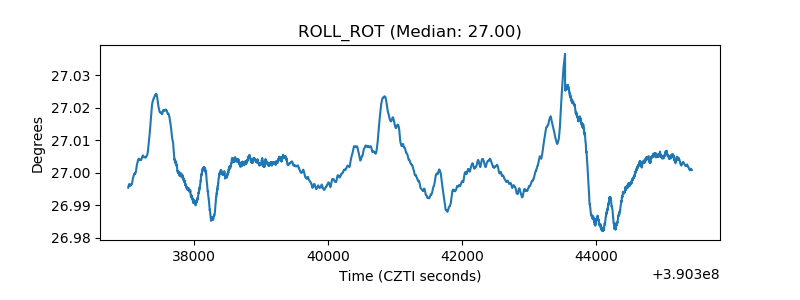

| _ROLL_ROT |  |
| _Roll_DEC |  |

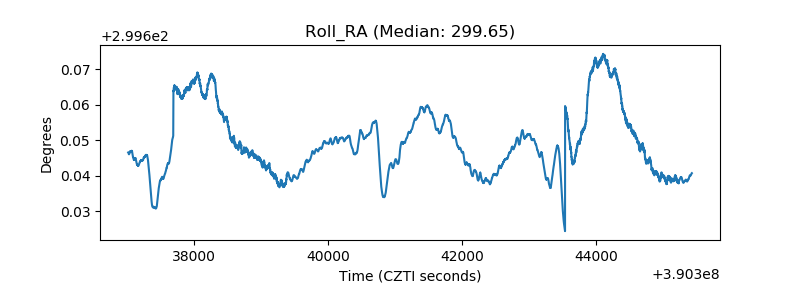

| _Roll_RA |  |
| Veto Counter |  |
