| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T01_9000005146_35851cztM0_level2.evt | modeM0/AS1A11_080T01_9000005146_35851cztM0_level2_quad_clean.evt |
| Size (bytes) | 218,969,280 | 40,020,480 |
| Size | 208.8 MB | 38.2 MB |
| Events in quadrant A | 1,559,143 | 260,040 |
| Events in quadrant B | 1,561,649 | 258,935 |
| Events in quadrant C | 1,638,105 | 251,758 |
| Events in quadrant D | 1,680,799 | 241,327 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 1 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 89 | 31 |
| B | 0 | 90 | 31 |
| C | 0 | 97 | 37 |
| D | 0 | 96 | 34 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9904 | 3681 |
| B | 0 | 10253 | 3974 |
| C | 0 | 9962 | 3518 |
| D | 0 | 10815 | 4109 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2783 | 5 | 0.179662% |
| B | 2778 | 18 | 0.647948% |
| C | 2824 | 58 | 2.053824% |
| D | 2761 | 48 | 1.738501% |

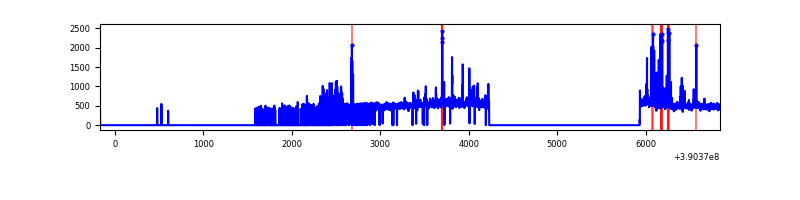

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6569 | 3011 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7007 | 3003 | 16 | 16 | 0.23% | 0.53% |  |
| C | 6343 | 3042 | 51 | 51 | 0.80% | 1.68% |  |
| D | 6426 | 2988 | 48 | 48 | 0.75% | 1.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 97400 | 1335.38 | 350 | 344 | 72.7 |
| A | 10 | 83 | 83709 | 1147.01 | 350 | 344 | 72.7 |
| A | 8 | 144 | 12644 | 169.23 | 350 | 344 | 72.7 |
| B | 0 | 213 | 81319 | 1198.02 | 345 | 338 | 67.6 |
| B | 5 | 172 | 72720 | 1070.81 | 345 | 338 | 67.6 |
| B | 4 | 81 | 19548 | 284.19 | 345 | 338 | 67.6 |
| C | 15 | 214 | 118800 | 1476.7 | 341 | 345 | 80.2 |
| C | 0 | 10 | 100863 | 1253.09 | 341 | 345 | 80.2 |
| C | 9 | 69 | 78922 | 979.57 | 341 | 345 | 80.2 |
| D | 7 | 223 | 214939 | 2565.54 | 336 | 326 | 83.7 |
| D | 8 | 195 | 81379 | 968.93 | 336 | 326 | 83.7 |
| D | 13 | 153 | 20808 | 244.85 | 336 | 326 | 83.7 |

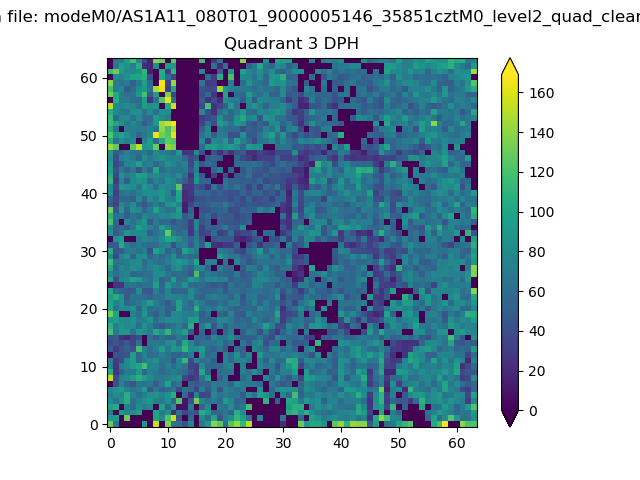

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

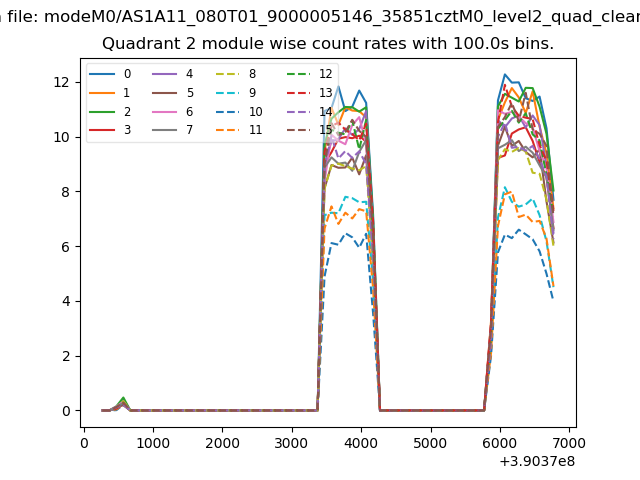

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

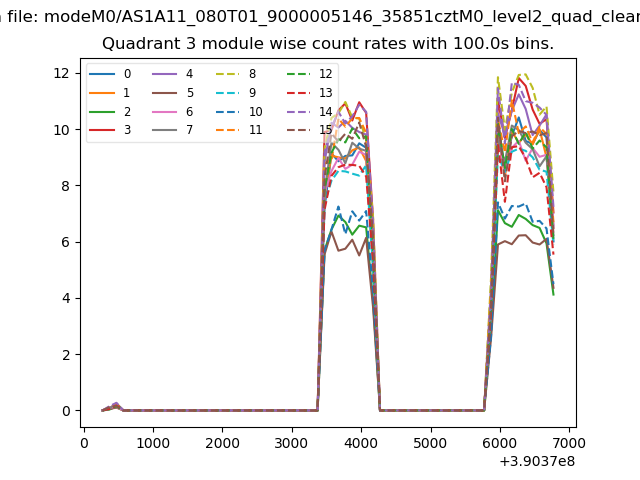

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

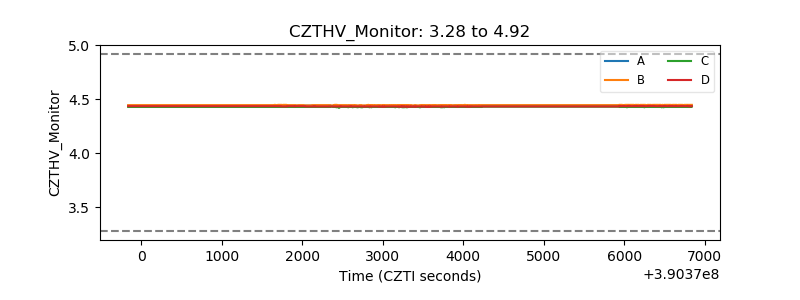

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

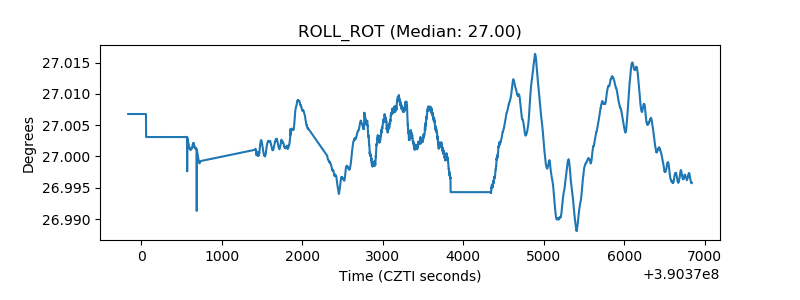

| _ROLL_ROT |  |

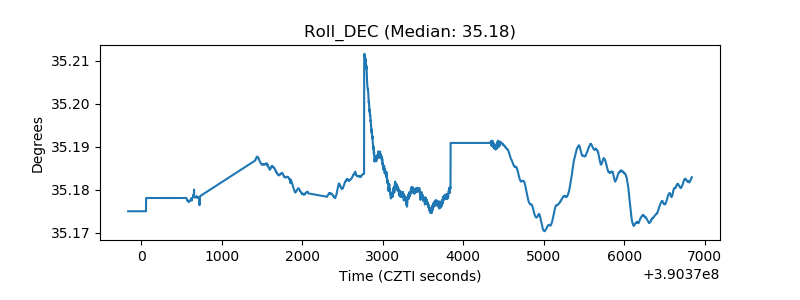

| _Roll_DEC |  |

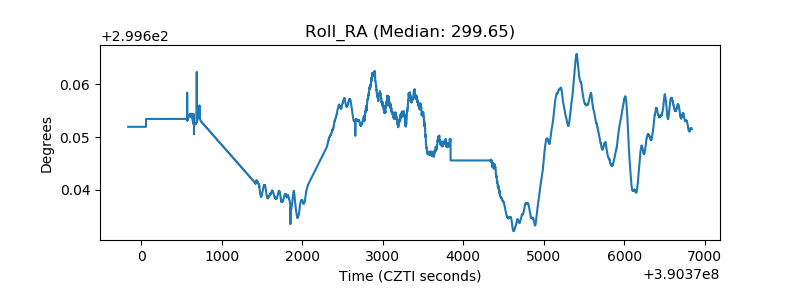

| _Roll_RA |  |
| Veto Counter |  |
