| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T01_9000005146_35870cztM0_level2.evt | modeM0/AS1A11_080T01_9000005146_35870cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,888,640 | 58,331,520 |
| Size | 483.4 MB | 55.6 MB |
| Events in quadrant A | 4,082,230 | 367,197 |
| Events in quadrant B | 3,437,656 | 357,441 |
| Events in quadrant C | 3,314,269 | 353,535 |
| Events in quadrant D | 4,163,741 | 322,332 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15944 | 3 |
| B | 0 | 13340 | 2 |
| C | 0 | 12942 | 2 |
| D | 0 | 15639 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5225 | 174 | 3.330144% |
| B | 5225 | 171 | 3.272727% |
| C | 5225 | 122 | 2.334928% |
| D | 5225 | 523 | 10.009569% |

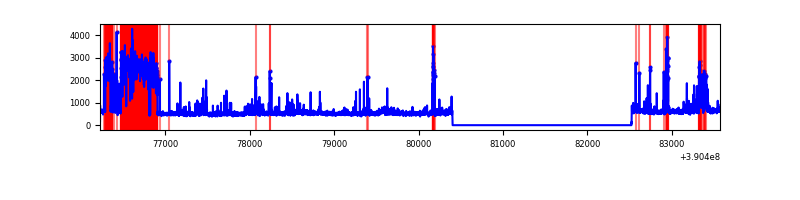

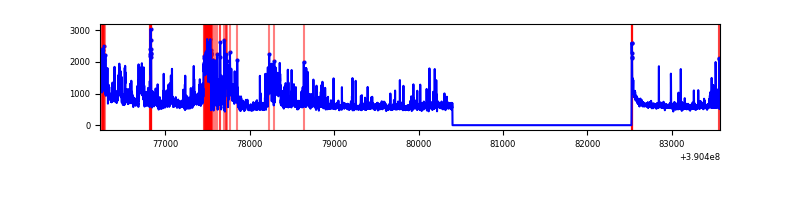

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7348 | 5226 | 96 | 96 | 1.31% | 1.84% |  |
| B | 7348 | 5226 | 146 | 146 | 1.99% | 2.79% |  |
| C | 7348 | 5226 | 100 | 100 | 1.36% | 1.91% |  |
| D | 7348 | 5226 | 499 | 499 | 6.79% | 9.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 986769 | 7077.57 | 701 | 693 | 139.3 |
| A | 7 | 48 | 197169 | 1410.21 | 701 | 693 | 139.3 |
| A | 10 | 83 | 156623 | 1119.19 | 701 | 693 | 139.3 |
| B | 5 | 172 | 613588 | 4776.13 | 683 | 669 | 128.3 |
| B | 5 | 255 | 53286 | 410.01 | 683 | 669 | 128.3 |
| B | 0 | 190 | 23163 | 175.28 | 683 | 669 | 128.3 |
| C | 0 | 10 | 269369 | 1761.61 | 666 | 672 | 152.5 |
| C | 1 | 23 | 227980 | 1490.26 | 666 | 672 | 152.5 |
| C | 15 | 214 | 219018 | 1431.5 | 666 | 672 | 152.5 |
| D | 8 | 230 | 995811 | 6258.17 | 650 | 633 | 159.0 |
| D | 7 | 223 | 173738 | 1088.57 | 650 | 633 | 159.0 |
| D | 8 | 195 | 172360 | 1079.9 | 650 | 633 | 159.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

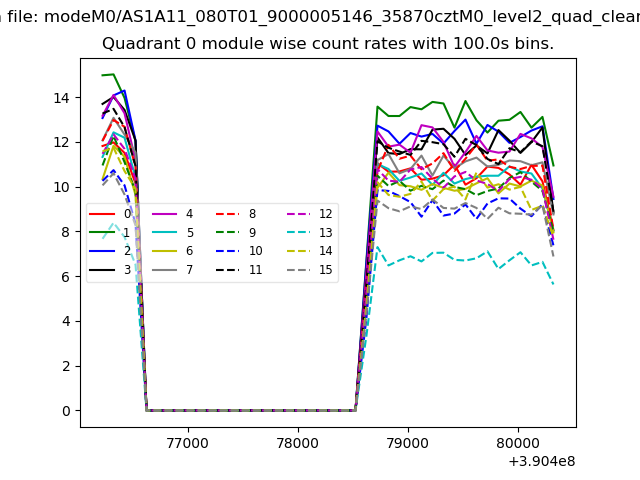

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

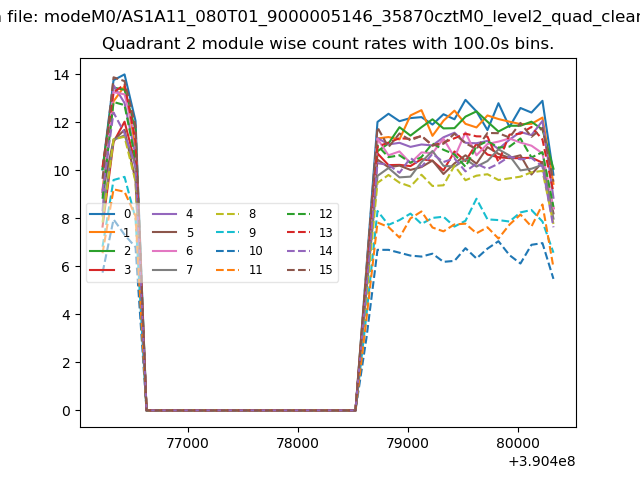

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

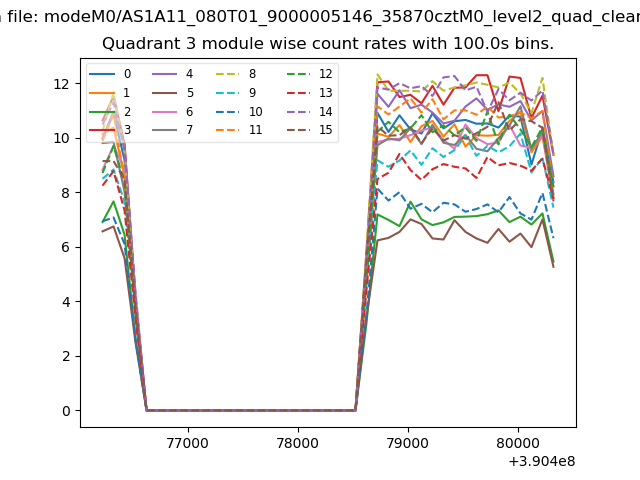

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

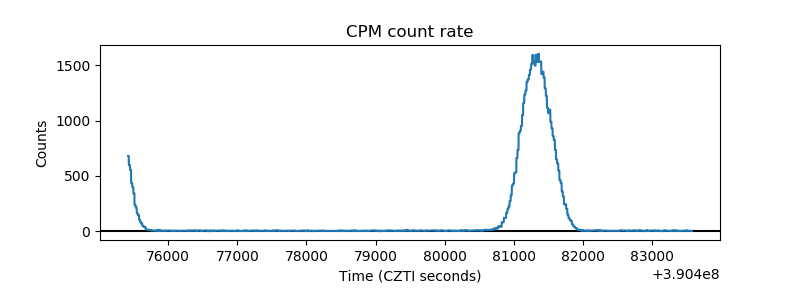

| _CPM_Rate |  |

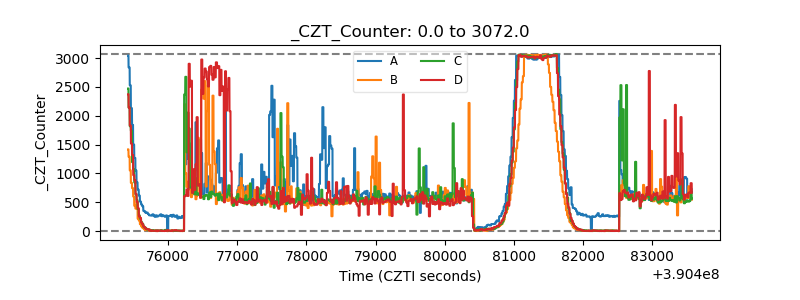

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

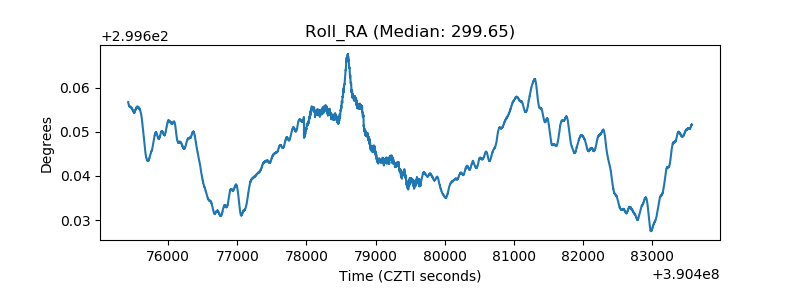

| _Roll_RA |  |
| Veto Counter |  |
