| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T01_9000005146_35889cztM0_level2.evt | modeM0/AS1A11_080T01_9000005146_35889cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,845,760 | 106,709,760 |
| Size | 521.5 MB | 101.8 MB |
| Events in quadrant A | 3,111,389 | 723,899 |
| Events in quadrant B | 5,024,021 | 691,275 |
| Events in quadrant C | 3,471,538 | 708,898 |
| Events in quadrant D | 4,532,866 | 673,732 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12940 | 3 |
| B | 0 | 19001 | 2 |
| C | 0 | 13787 | 2 |
| D | 0 | 17595 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6211 | 13 | 0.209306% |
| B | 6211 | 653 | 10.513605% |
| C | 6211 | 121 | 1.948156% |
| D | 6211 | 180 | 2.898084% |

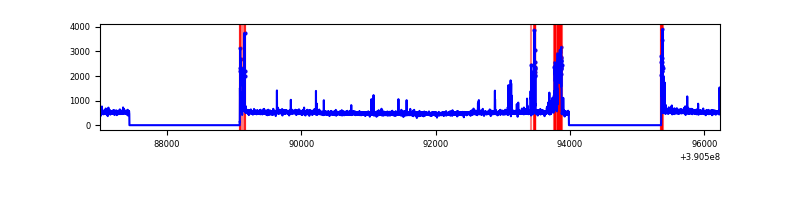

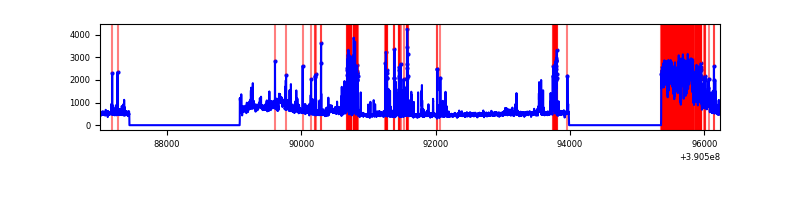

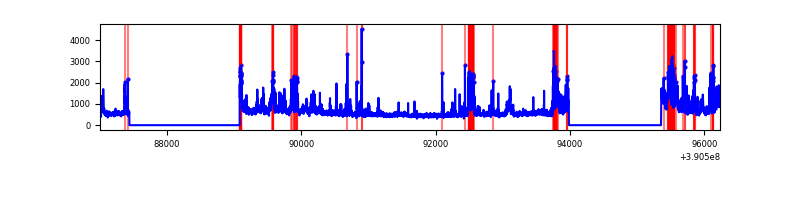

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9227 | 6213 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9227 | 6213 | 502 | 502 | 5.44% | 8.08% |  |
| C | 9227 | 6213 | 99 | 99 | 1.07% | 1.59% |  |
| D | 9227 | 6213 | 151 | 151 | 1.64% | 2.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 176624 | 1125.35 | 755 | 741 | 156.3 |
| A | 13 | 254 | 11302 | 67.57 | 755 | 741 | 156.3 |
| A | 13 | 6 | 9785 | 57.87 | 755 | 741 | 156.3 |
| B | 5 | 63 | 1476378 | 10663.47 | 717 | 701 | 138.4 |
| B | 5 | 172 | 516122 | 3724.51 | 717 | 701 | 138.4 |
| B | 5 | 255 | 113823 | 817.44 | 717 | 701 | 138.4 |
| C | 15 | 214 | 259386 | 1520.41 | 726 | 734 | 170.1 |
| C | 15 | 208 | 207154 | 1213.38 | 726 | 734 | 170.1 |
| C | 0 | 10 | 118319 | 691.19 | 726 | 734 | 170.1 |
| D | 12 | 227 | 792093 | 4407.62 | 724 | 707 | 179.5 |
| D | 8 | 195 | 456709 | 2539.7 | 724 | 707 | 179.5 |
| D | 13 | 249 | 207913 | 1154.03 | 724 | 707 | 179.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

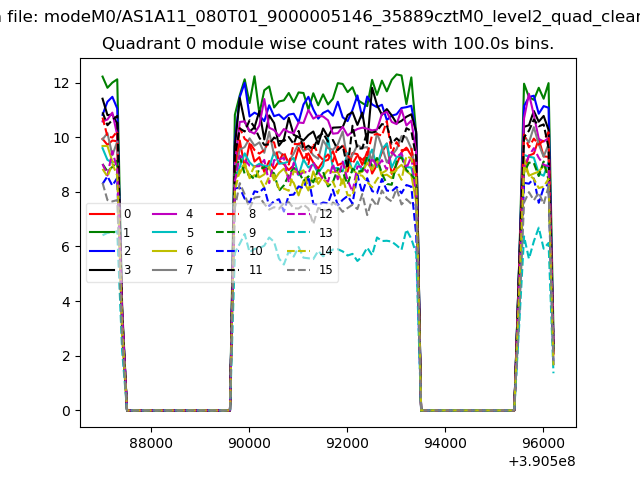

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

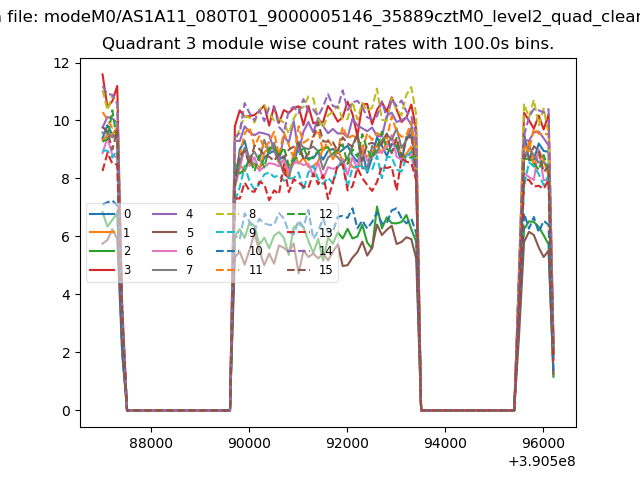

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

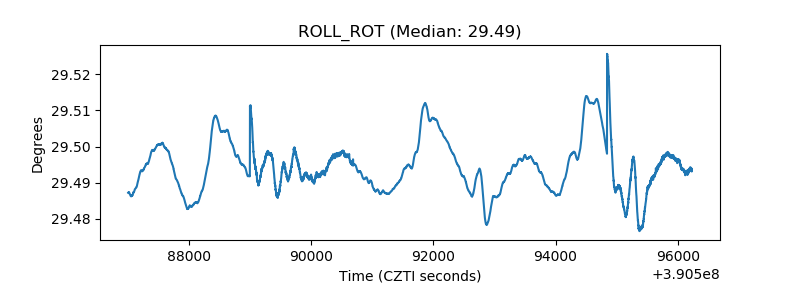

| _ROLL_ROT |  |
| _Roll_DEC |  |

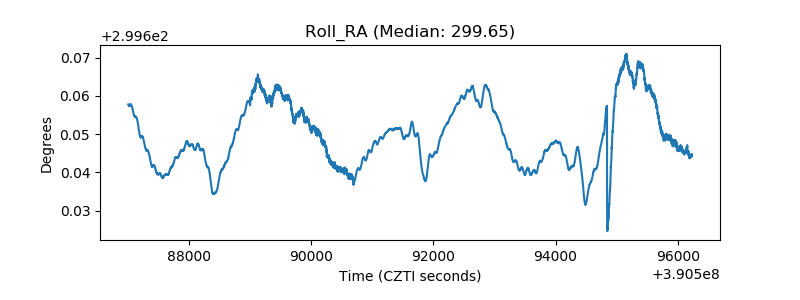

| _Roll_RA |  |

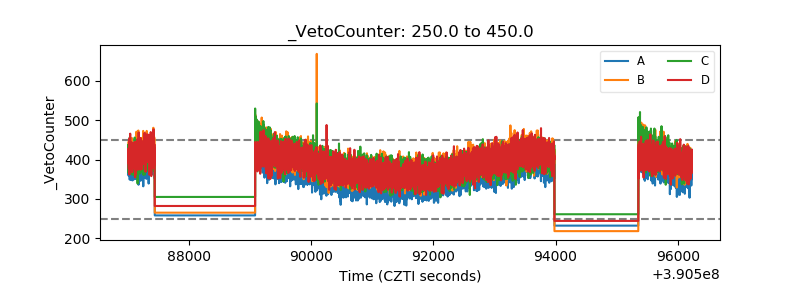

| Veto Counter |  |
