| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T01_9000005146_35901cztM0_level2.evt | modeM0/AS1A11_080T01_9000005146_35901cztM0_level2_quad_clean.evt |
| Size (bytes) | 421,099,200 | 61,148,160 |
| Size | 401.6 MB | 58.3 MB |
| Events in quadrant A | 2,723,268 | 386,999 |
| Events in quadrant B | 3,184,418 | 371,646 |
| Events in quadrant C | 2,857,181 | 375,612 |
| Events in quadrant D | 3,641,197 | 359,149 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10949 | 3 |
| B | 0 | 12460 | 2 |
| C | 0 | 11140 | 2 |
| D | 0 | 14447 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5108 | 11 | 0.215348% |
| B | 5108 | 172 | 3.367267% |
| C | 5108 | 70 | 1.370399% |
| D | 5108 | 107 | 2.094753% |

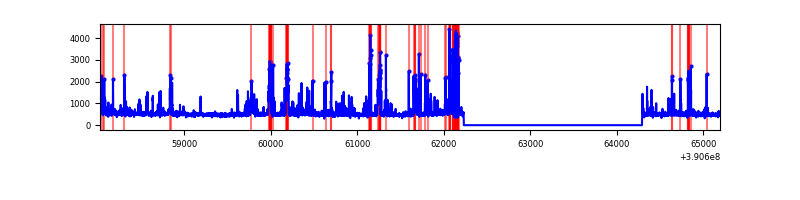

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7171 | 5109 | 4 | 4 | 0.06% | 0.08% |  |
| B | 7171 | 5109 | 113 | 113 | 1.58% | 2.21% |  |
| C | 7171 | 5109 | 49 | 49 | 0.68% | 0.96% |  |
| D | 7171 | 5109 | 79 | 79 | 1.10% | 1.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 162285 | 1240.81 | 643 | 633 | 130.3 |
| A | 15 | 169 | 43141 | 326.28 | 643 | 633 | 130.3 |
| A | 7 | 3 | 16882 | 124.72 | 643 | 633 | 130.3 |
| B | 5 | 172 | 448014 | 3782.24 | 626 | 613 | 118.3 |
| B | 5 | 255 | 223961 | 1888.14 | 626 | 613 | 118.3 |
| B | 0 | 213 | 23942 | 197.22 | 626 | 613 | 118.3 |
| C | 0 | 10 | 224403 | 1570.93 | 618 | 625 | 142.4 |
| C | 15 | 214 | 215543 | 1508.73 | 618 | 625 | 142.4 |
| C | 6 | 255 | 8802 | 57.4 | 618 | 625 | 142.4 |
| D | 8 | 195 | 409249 | 2757.5 | 616 | 602 | 148.2 |
| D | 13 | 153 | 203114 | 1366.53 | 616 | 602 | 148.2 |
| D | 2 | 250 | 133160 | 894.49 | 616 | 602 | 148.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

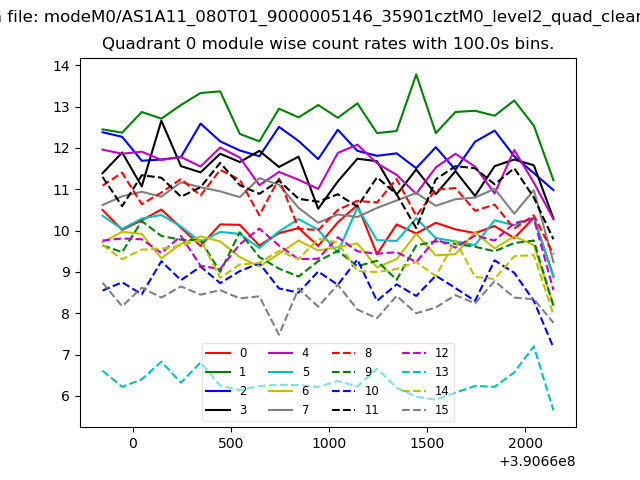

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

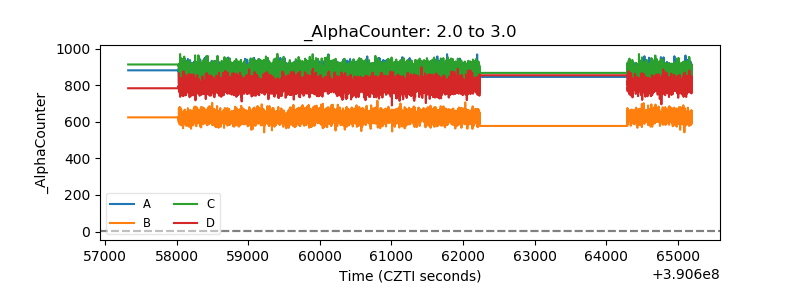

| Alpha Counter |  |

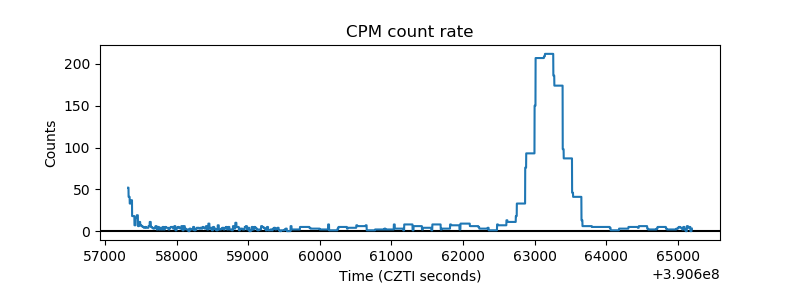

| _CPM_Rate |  |

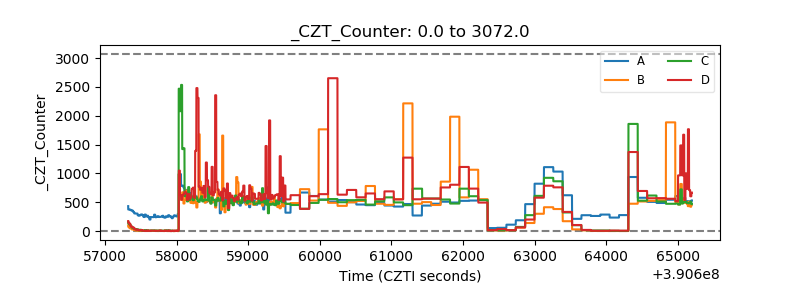

| CZT Counter |  |

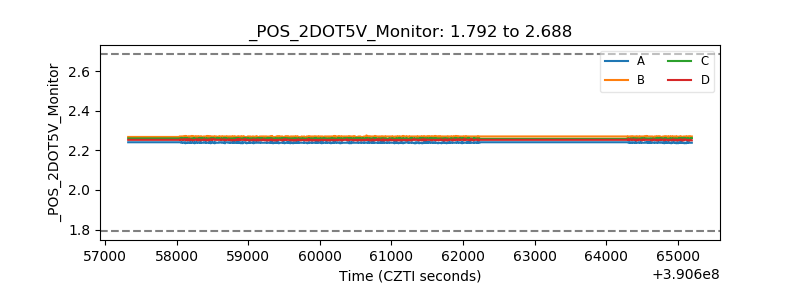

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

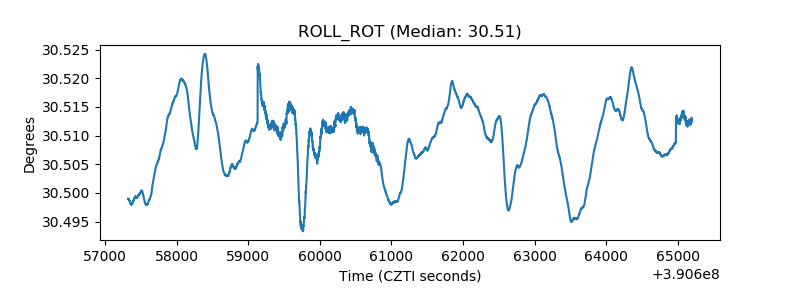

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

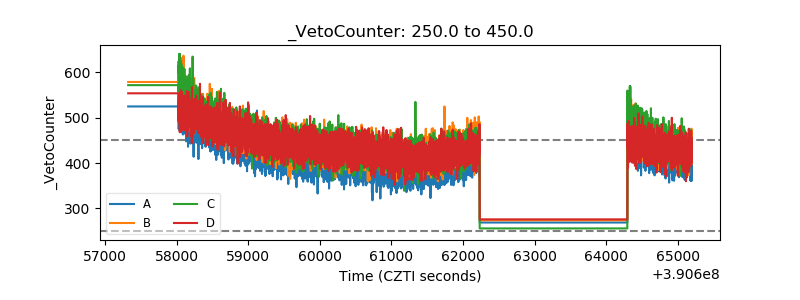

| Veto Counter |  |
