| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T01_9000005146_35937cztM0_level2.evt | modeM0/AS1A11_080T01_9000005146_35937cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,147,200 | 82,321,920 |
| Size | 424.5 MB | 78.5 MB |
| Events in quadrant A | 2,707,262 | 542,605 |
| Events in quadrant B | 4,129,233 | 514,363 |
| Events in quadrant C | 2,919,215 | 535,326 |
| Events in quadrant D | 3,343,983 | 507,611 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11600 | 3 |
| B | 0 | 15925 | 2 |
| C | 0 | 12049 | 2 |
| D | 0 | 13763 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5618 | 7 | 0.124600% |
| B | 5618 | 461 | 8.205767% |
| C | 5618 | 38 | 0.676397% |
| D | 5618 | 62 | 1.103596% |

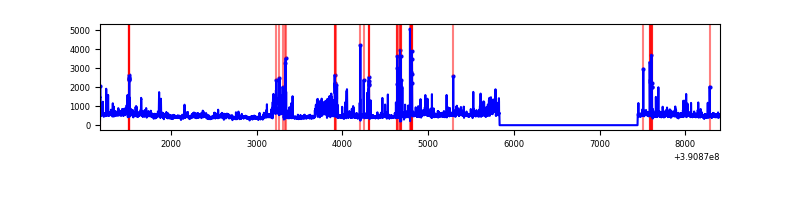

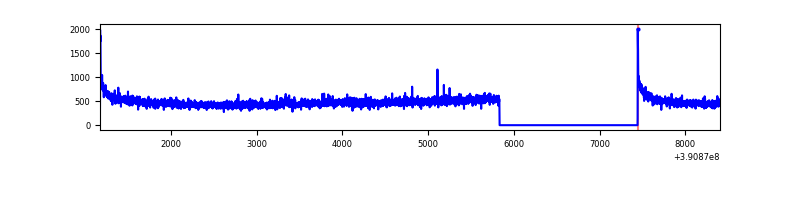

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7229 | 5619 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7229 | 5619 | 341 | 341 | 4.72% | 6.07% |  |
| C | 7229 | 5619 | 25 | 25 | 0.35% | 0.44% |  |
| D | 7229 | 5619 | 49 | 49 | 0.68% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 168620 | 1272.02 | 647 | 635 | 132.1 |
| A | 15 | 169 | 17474 | 127.51 | 647 | 635 | 132.1 |
| A | 13 | 6 | 9416 | 66.49 | 647 | 635 | 132.1 |
| B | 5 | 172 | 1495509 | 12603.04 | 620 | 605 | 118.6 |
| B | 4 | 81 | 75173 | 628.66 | 620 | 605 | 118.6 |
| B | 4 | 171 | 45166 | 375.68 | 620 | 605 | 118.6 |
| C | 15 | 214 | 234493 | 1591.84 | 628 | 633 | 146.9 |
| C | 0 | 207 | 125400 | 849.26 | 628 | 633 | 146.9 |
| C | 0 | 10 | 108585 | 734.81 | 628 | 633 | 146.9 |
| D | 8 | 195 | 308669 | 1996.63 | 622 | 604 | 154.3 |
| D | 13 | 249 | 302051 | 1953.74 | 622 | 604 | 154.3 |
| D | 10 | 118 | 123718 | 797.93 | 622 | 604 | 154.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

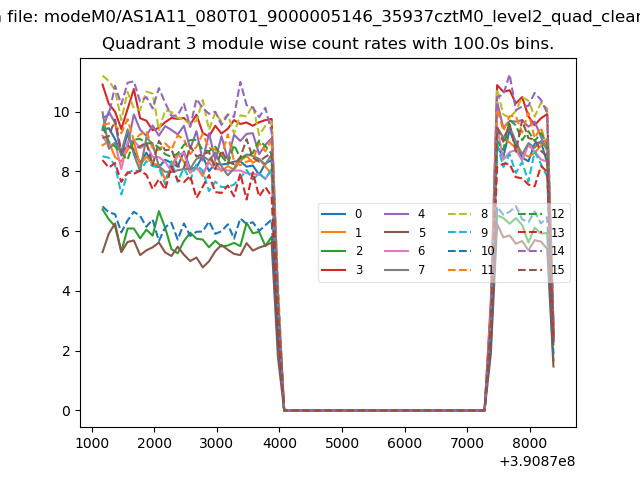

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

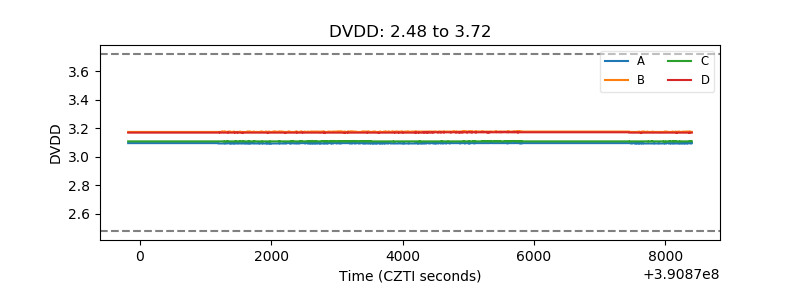

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

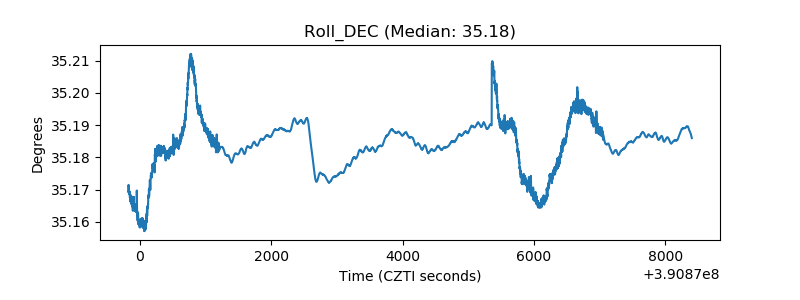

| _Roll_DEC |  |

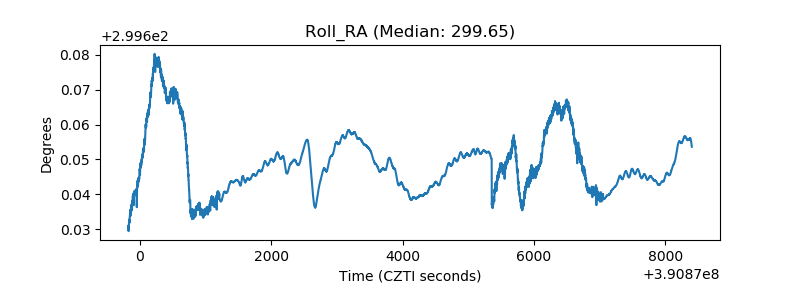

| _Roll_RA |  |

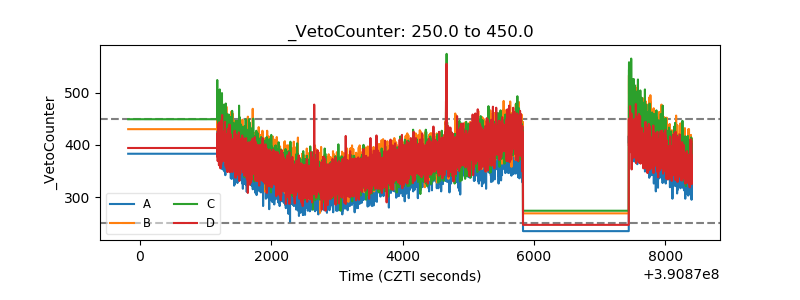

| Veto Counter |  |
