| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T01_9000005146_35938cztM0_level2.evt | modeM0/AS1A11_080T01_9000005146_35938cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,166,720 | 74,842,560 |
| Size | 425.5 MB | 71.4 MB |
| Events in quadrant A | 2,645,094 | 493,199 |
| Events in quadrant B | 4,336,809 | 452,572 |
| Events in quadrant C | 2,960,117 | 481,235 |
| Events in quadrant D | 3,202,457 | 460,200 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11301 | 3 |
| B | 0 | 16359 | 2 |
| C | 0 | 12113 | 2 |
| D | 0 | 13162 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5412 | 9 | 0.166297% |
| B | 5412 | 653 | 12.065780% |
| C | 5412 | 92 | 1.699926% |
| D | 5412 | 71 | 1.311899% |

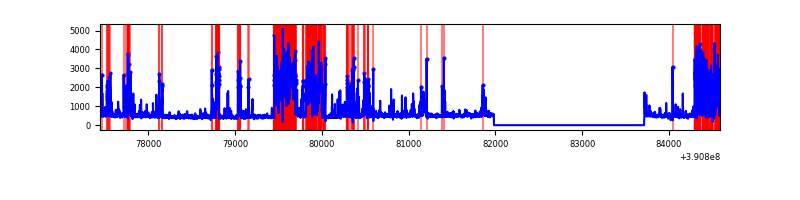

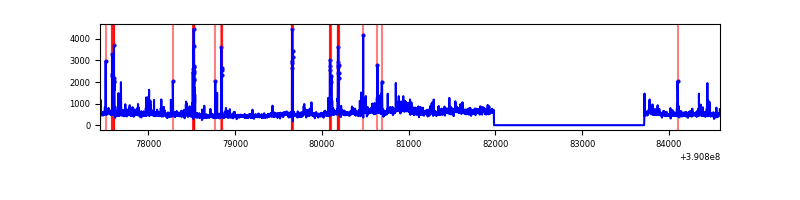

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7144 | 5413 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7144 | 5413 | 522 | 522 | 7.31% | 9.64% |  |
| C | 7144 | 5413 | 72 | 72 | 1.01% | 1.33% |  |
| D | 7144 | 5413 | 47 | 47 | 0.66% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 166839 | 1283.67 | 632 | 622 | 129.5 |
| A | 8 | 144 | 17818 | 132.8 | 632 | 622 | 129.5 |
| A | 7 | 3 | 8746 | 62.74 | 632 | 622 | 129.5 |
| B | 5 | 172 | 1850154 | 16254.39 | 591 | 576 | 113.8 |
| B | 4 | 171 | 74820 | 652.47 | 591 | 576 | 113.8 |
| B | 5 | 255 | 26340 | 226.42 | 591 | 576 | 113.8 |
| C | 15 | 214 | 227031 | 1592.58 | 607 | 612 | 142.2 |
| C | 0 | 207 | 205949 | 1444.3 | 607 | 612 | 142.2 |
| C | 0 | 10 | 154855 | 1084.91 | 607 | 612 | 142.2 |
| D | 8 | 195 | 474107 | 3222.47 | 604 | 590 | 146.9 |
| D | 13 | 249 | 172793 | 1171.91 | 604 | 590 | 146.9 |
| D | 1 | 52 | 75252 | 508.1 | 604 | 590 | 146.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

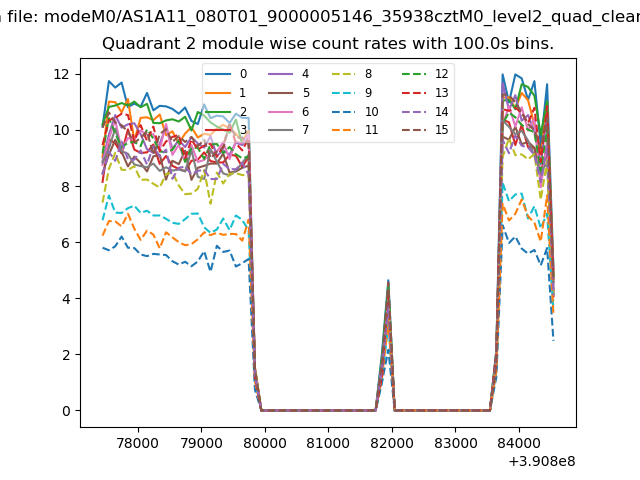

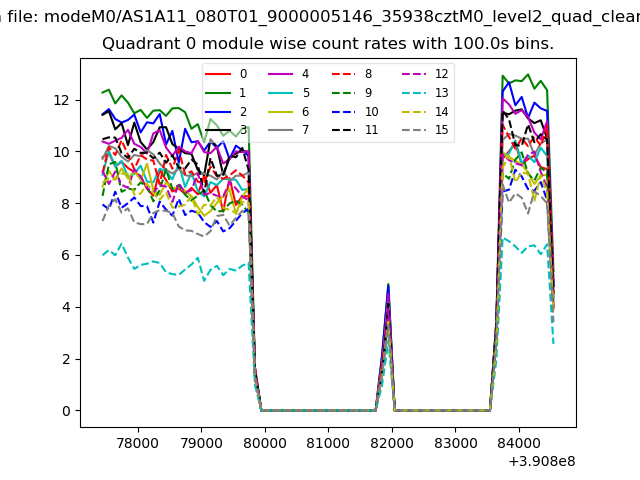

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

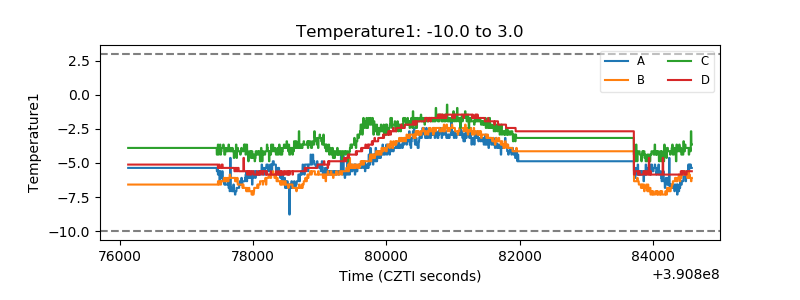

| Temperature 1 |  |
| Veto HV Monitor |  |

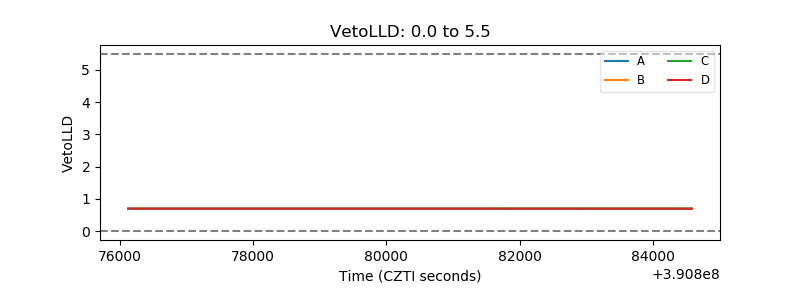

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

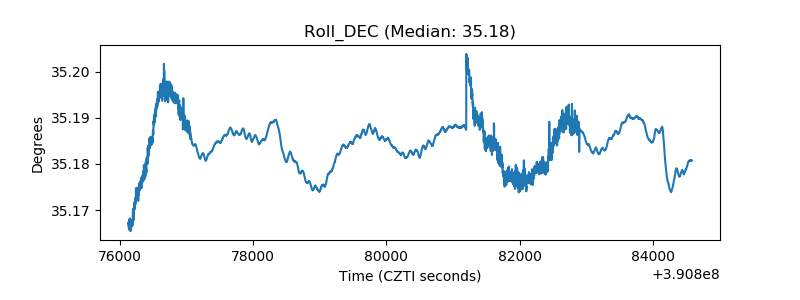

| _Roll_DEC |  |

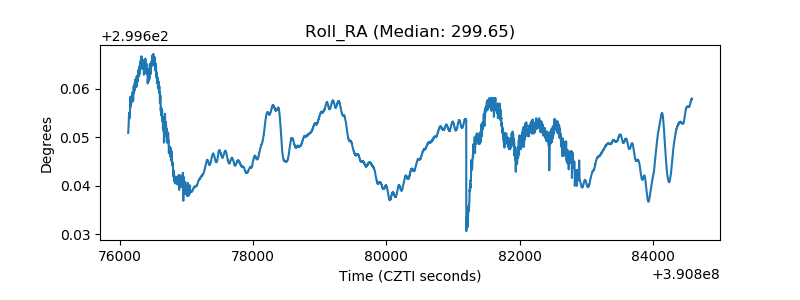

| _Roll_RA |  |
| Veto Counter |  |
