| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_050T19_9000005156_35972cztM0_level2.evt | modeM0/AS1A11_050T19_9000005156_35972cztM0_level2_quad_clean.evt |
| Size (bytes) | 188,392,320 | 23,688,000 |
| Size | 179.7 MB | 22.6 MB |
| Events in quadrant A | 671,923 | 180,442 |
| Events in quadrant B | 2,917,813 | 105,063 |
| Events in quadrant C | 1,088,904 | 168,682 |
| Events in quadrant D | 939,288 | 167,956 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2724 | 2 |
| B | 0 | 9527 | 1 |
| C | 0 | 4041 | 1 |
| D | 0 | 3632 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1256 | 4 | 0.318471% |
| B | 1256 | 1112 | 88.535032% |
| C | 1256 | 123 | 9.792994% |
| D | 1256 | 45 | 3.582803% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1256 | 1256 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1256 | 1256 | 1008 | 1008 | 80.25% | 80.25% |  |
| C | 1256 | 1256 | 90 | 90 | 7.17% | 7.17% |  |
| D | 1256 | 1256 | 30 | 30 | 2.39% | 2.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 60406 | 1819.46 | 157 | 154 | 33.1 |
| A | 13 | 254 | 1968 | 54.78 | 157 | 154 | 33.1 |
| A | 10 | 67 | 1576 | 42.94 | 157 | 154 | 33.1 |
| B | 5 | 31 | 1665613 | 81221.52 | 98 | 96 | 20.5 |
| B | 5 | 15 | 701808 | 34220.08 | 98 | 96 | 20.5 |
| B | 5 | 172 | 58975 | 2871.33 | 98 | 96 | 20.5 |
| C | 9 | 187 | 348106 | 9950.2 | 146 | 147 | 35.0 |
| C | 0 | 10 | 107955 | 3082.87 | 146 | 147 | 35.0 |
| C | 15 | 214 | 54386 | 1551.01 | 146 | 147 | 35.0 |
| D | 8 | 195 | 116415 | 3007.18 | 153 | 148 | 38.7 |
| D | 2 | 250 | 112062 | 2894.59 | 153 | 148 | 38.7 |
| D | 10 | 118 | 57562 | 1484.98 | 153 | 148 | 38.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

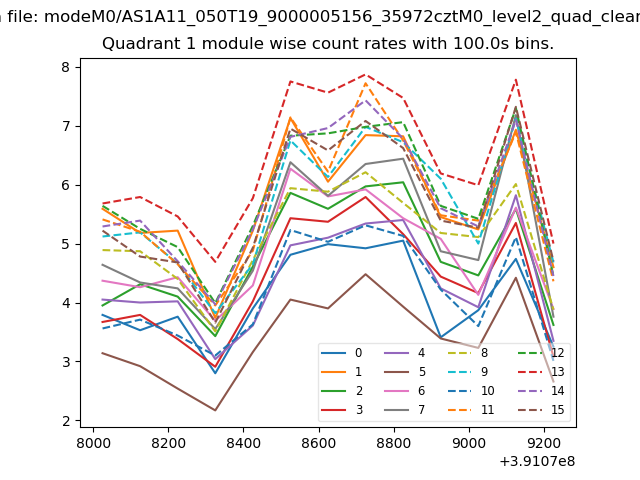

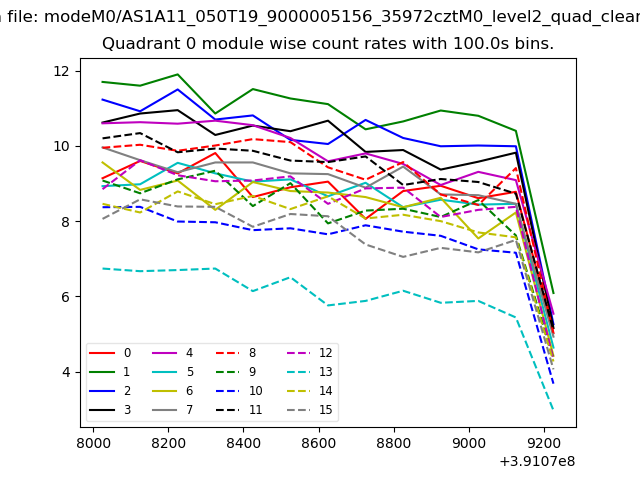

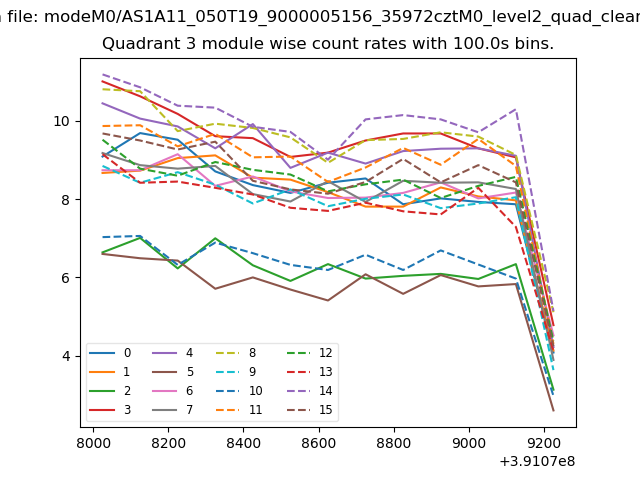

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
