| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_050T19_9000005156_35977cztM0_level2.evt | modeM0/AS1A11_050T19_9000005156_35977cztM0_level2_quad_clean.evt |
| Size (bytes) | 932,307,840 | 88,162,560 |
| Size | 889.1 MB | 84.1 MB |
| Events in quadrant A | 2,754,173 | 721,856 |
| Events in quadrant B | 15,439,396 | 206,656 |
| Events in quadrant C | 3,740,817 | 690,474 |
| Events in quadrant D | 5,906,309 | 638,944 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11999 | 2 |
| B | 0 | 49849 | 1 |
| C | 0 | 14909 | 1 |
| D | 0 | 21578 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5845 | 6 | 0.102652% |
| B | 5845 | 5845 | 100.000000% |
| C | 5845 | 205 | 3.507271% |
| D | 5845 | 720 | 12.318221% |

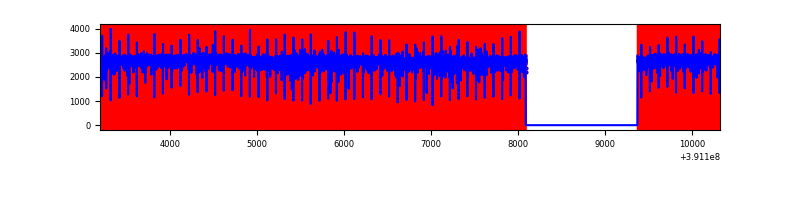

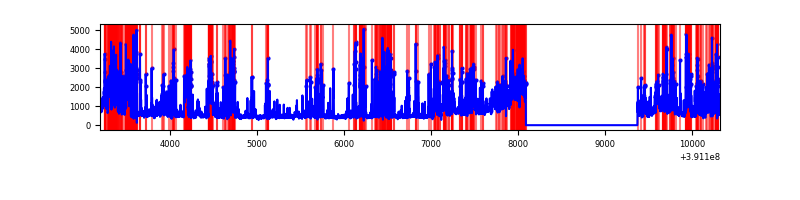

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7129 | 5846 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7128 | 5844 | 5736 | 5736 | 80.47% | 98.15% |  |
| C | 7129 | 5846 | 146 | 146 | 2.05% | 2.50% |  |
| D | 7129 | 5846 | 655 | 655 | 9.19% | 11.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 155503 | 1176.88 | 657 | 644 | 131.6 |
| A | 15 | 169 | 35198 | 262.6 | 657 | 644 | 131.6 |
| A | 7 | 3 | 14992 | 109.04 | 657 | 644 | 131.6 |
| B | 5 | 31 | 7029793 | 157463.42 | 225 | 219 | 44.6 |
| B | 5 | 15 | 5771839 | 129285.08 | 225 | 219 | 44.6 |
| B | 5 | 14 | 1332629 | 29846.17 | 225 | 219 | 44.6 |
| C | 9 | 187 | 839190 | 5770.73 | 624 | 625 | 145.3 |
| C | 15 | 214 | 238411 | 1636.36 | 624 | 625 | 145.3 |
| C | 0 | 207 | 140919 | 965.46 | 624 | 625 | 145.3 |
| D | 1 | 52 | 1601204 | 10686.91 | 609 | 591 | 149.8 |
| D | 12 | 17 | 1372157 | 9157.62 | 609 | 591 | 149.8 |
| D | 8 | 195 | 177104 | 1178.53 | 609 | 591 | 149.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

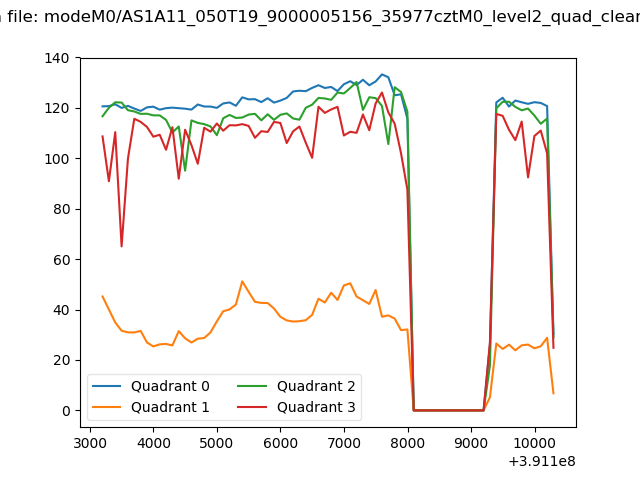

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

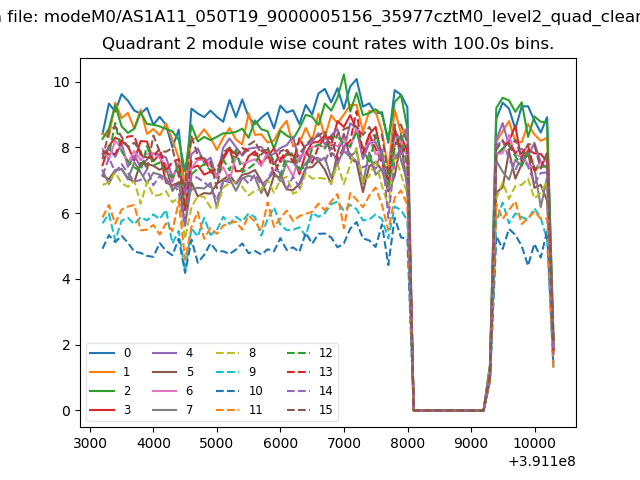

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

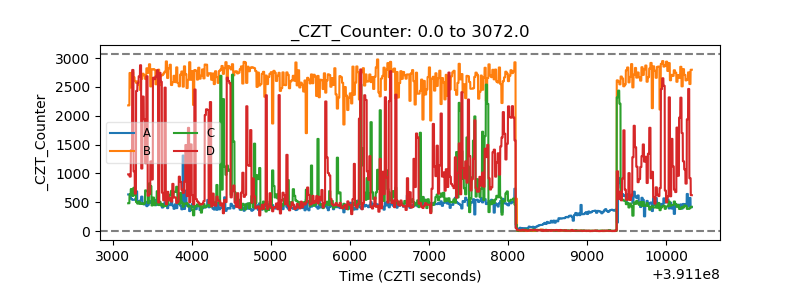

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

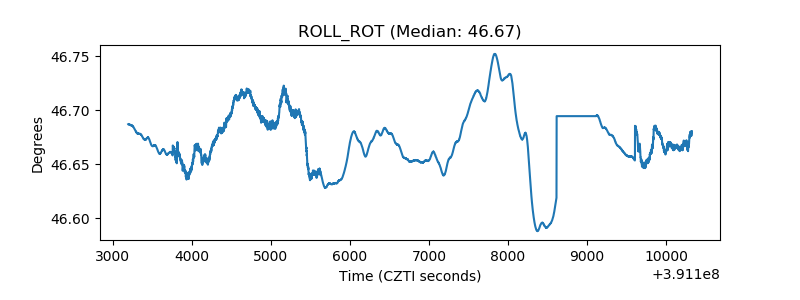

| _ROLL_ROT |  |

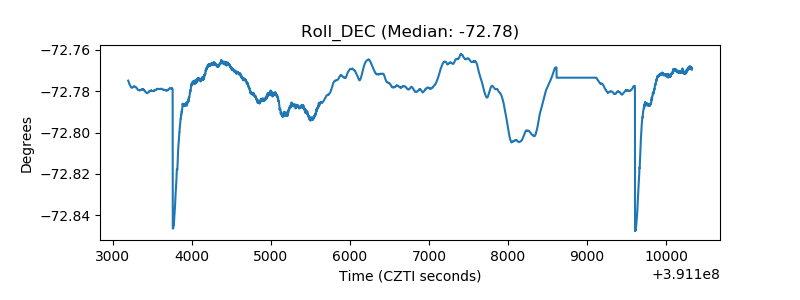

| _Roll_DEC |  |
| _Roll_RA |  |

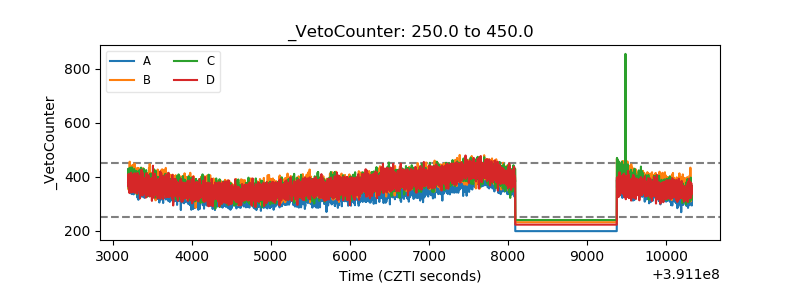

| Veto Counter |  |
