| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_050T19_9000005156_35986cztM0_level2.evt | modeM0/AS1A11_050T19_9000005156_35986cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,617,600 | 34,853,760 |
| Size | 505.1 MB | 33.2 MB |
| Events in quadrant A | 1,210,912 | 343,173 |
| Events in quadrant B | 6,318,814 | 80,159 |
| Events in quadrant C | 5,444,123 | 147,033 |
| Events in quadrant D | 2,903,264 | 309,564 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5223 | 200 |
| B | 0 | 21596 | 1230 |
| C | 0 | 18773 | 962 |
| D | 0 | 10605 | 274 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 52 | 2 |
| B | 0 | 52 | 2 |
| C | 0 | 50 | 0 |
| D | 0 | 52 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 1 |
| B | 0 | 20 | 0 |
| C | 0 | 21 | 2 |
| D | 0 | 22 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2430 | 4 | 0.164609% |
| B | 2370 | 2370 | 100.000000% |
| C | 2382 | 1919 | 80.562552% |
| D | 2422 | 413 | 17.052023% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6942 | 2456 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6941 | 2378 | 2331 | 2331 | 33.58% | 98.02% |  |
| C | 6941 | 2405 | 1796 | 1796 | 25.88% | 74.68% |  |
| D | 6943 | 2454 | 225 | 225 | 3.24% | 9.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 53424 | 865.77 | 299 | 293 | 61.4 |
| A | 13 | 254 | 3986 | 60.18 | 299 | 293 | 61.4 |
| A | 3 | 137 | 2912 | 42.68 | 299 | 293 | 61.4 |
| B | 5 | 31 | 2362606 | 131173.75 | 84 | 82 | 18.0 |
| B | 5 | 15 | 2192516 | 121729.89 | 84 | 82 | 18.0 |
| B | 5 | 14 | 1160113 | 64408.07 | 84 | 82 | 18.0 |
| C | 9 | 187 | 4793607 | 139363.44 | 141 | 142 | 34.4 |
| C | 15 | 214 | 51598 | 1496.01 | 141 | 142 | 34.4 |
| C | 0 | 207 | 39430 | 1142.24 | 141 | 142 | 34.4 |
| D | 1 | 52 | 1534942 | 22153.17 | 278 | 270 | 69.3 |
| D | 8 | 195 | 111566 | 1606.57 | 278 | 270 | 69.3 |
| D | 13 | 249 | 52390 | 752.36 | 278 | 270 | 69.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

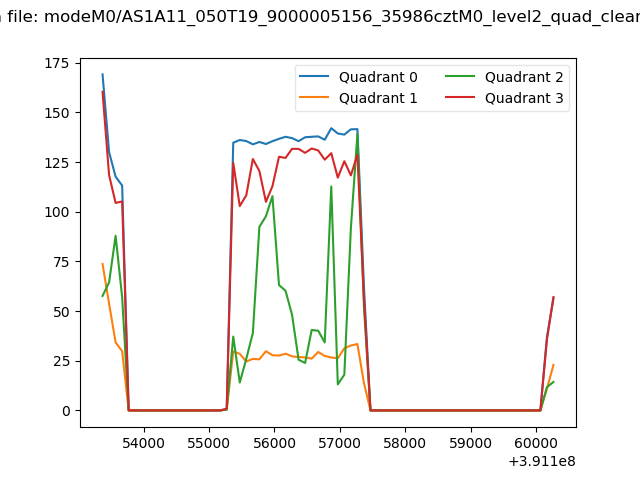

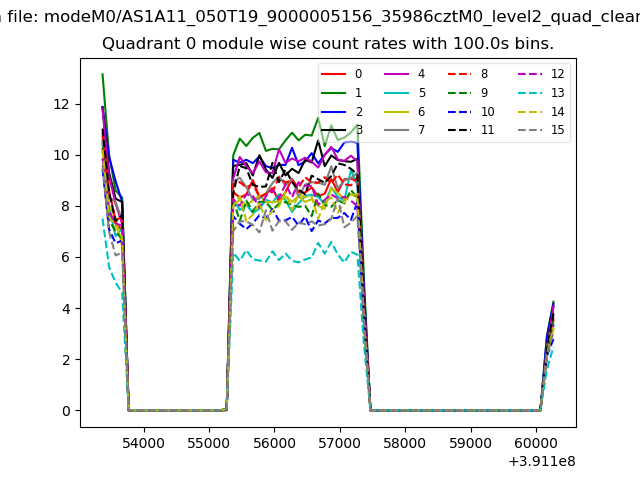

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

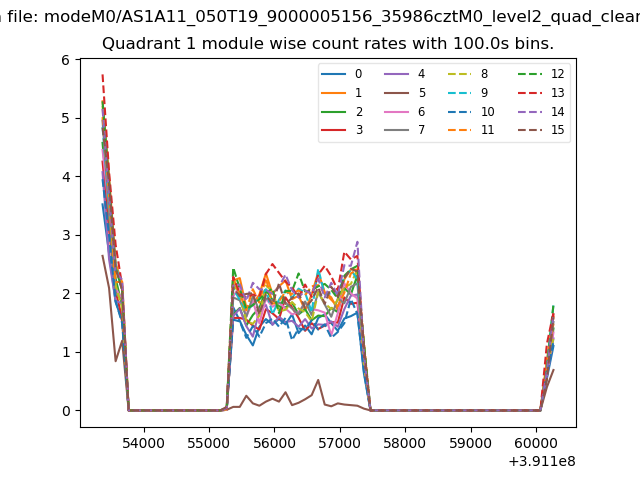

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

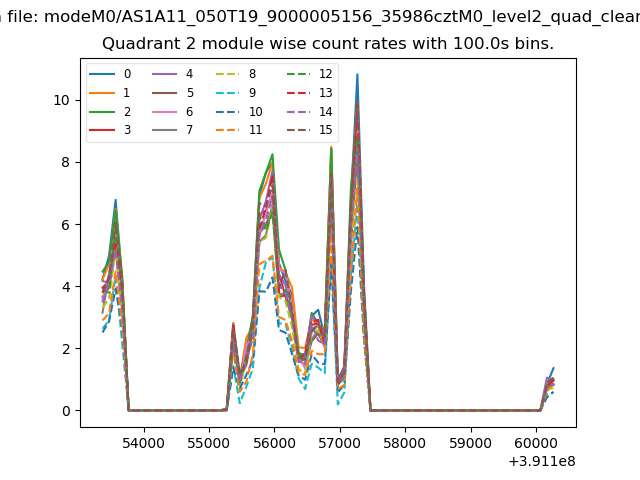

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

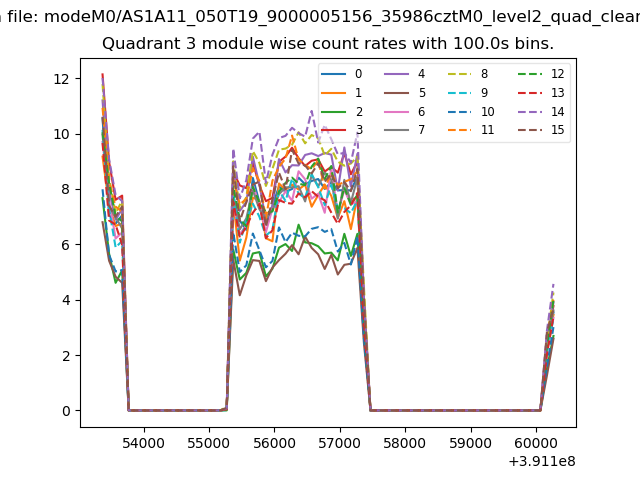

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

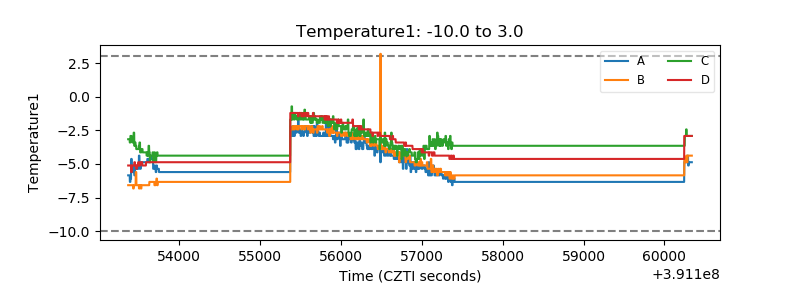

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

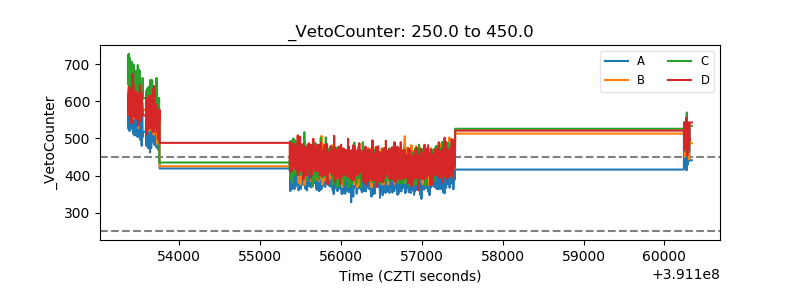

| Veto Counter |  |
