| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_050T19_9000005156_35987cztM0_level2.evt | modeM0/AS1A11_050T19_9000005156_35987cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,667,390,400 | 135,694,080 |
| Size | 1.6 GB | 129.4 MB |
| Events in quadrant A | 4,243,906 | 1,200,865 |
| Events in quadrant B | 22,986,691 | 341,991 |
| Events in quadrant C | 13,633,795 | 850,399 |
| Events in quadrant D | 9,053,478 | 1,108,316 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17764 | 3 |
| B | 0 | 74210 | 7 |
| C | 0 | 46240 | 2 |
| D | 0 | 33021 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 178 | 0 |
| B | 0 | 178 | 0 |
| C | 0 | 178 | 0 |
| D | 0 | 178 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8615 | 9 | 0.104469% |
| B | 8664 | 8658 | 99.930748% |
| C | 8705 | 3878 | 44.549110% |
| D | 8705 | 984 | 11.303848% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13004 | 8618 | 0 | 0 | 0.00% | 0.00% |  |
| B | 12962 | 8663 | 8521 | 8521 | 65.74% | 98.36% |  |
| C | 13004 | 8707 | 3644 | 3644 | 28.02% | 41.85% |  |
| D | 13004 | 8707 | 613 | 613 | 4.71% | 7.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 209176 | 1010.13 | 1042 | 1024 | 206.1 |
| A | 13 | 254 | 14036 | 63.15 | 1042 | 1024 | 206.1 |
| A | 3 | 137 | 10053 | 43.82 | 1042 | 1024 | 206.1 |
| B | 5 | 31 | 9335934 | 143935.11 | 347 | 339 | 64.9 |
| B | 5 | 15 | 8320467 | 128278.76 | 347 | 339 | 64.9 |
| B | 5 | 14 | 3263638 | 50313.16 | 347 | 339 | 64.9 |
| C | 9 | 187 | 10116767 | 59241.56 | 751 | 759 | 170.8 |
| C | 15 | 214 | 271728 | 1586.85 | 751 | 759 | 170.8 |
| C | 0 | 207 | 217667 | 1270.26 | 751 | 759 | 170.8 |
| D | 1 | 52 | 3587590 | 14806.82 | 999 | 971 | 242.2 |
| D | 8 | 195 | 356119 | 1466.17 | 999 | 971 | 242.2 |
| D | 13 | 249 | 343064 | 1412.28 | 999 | 971 | 242.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

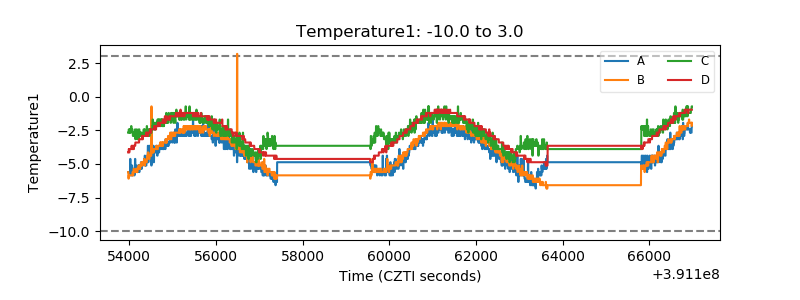

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

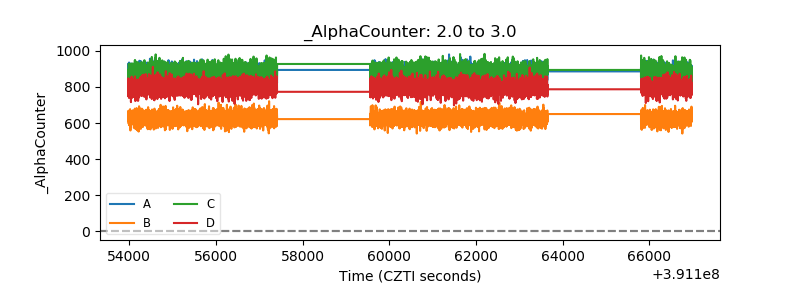

| Alpha Counter |  |
| _CPM_Rate |  |

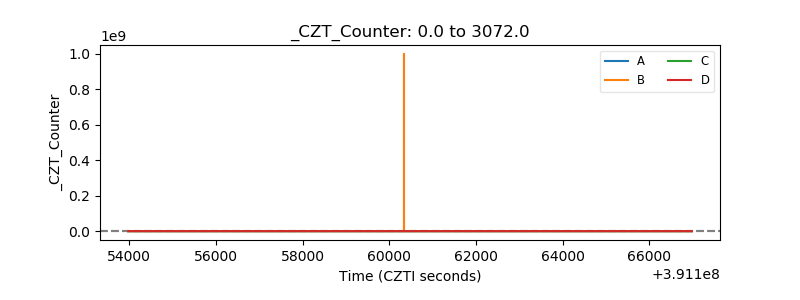

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

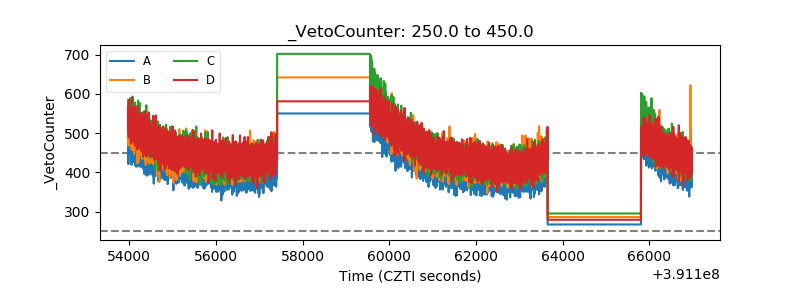

| Veto Counter |  |
