| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_050T19_9000005156_36000cztM0_level2.evt | modeM0/AS1A11_050T19_9000005156_36000cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,104,320 | 101,229,120 |
| Size | 428.3 MB | 96.5 MB |
| Events in quadrant A | 2,455,381 | 696,174 |
| Events in quadrant B | 2,830,789 | 701,602 |
| Events in quadrant C | 4,286,149 | 674,065 |
| Events in quadrant D | 3,700,768 | 654,574 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10118 | 2 |
| B | 0 | 11332 | 1 |
| C | 0 | 15792 | 1 |
| D | 0 | 13948 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4828 | 9 | 0.186413% |
| B | 4828 | 63 | 1.304888% |
| C | 4828 | 463 | 9.589892% |
| D | 4828 | 353 | 7.311516% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6921 | 4829 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6921 | 4829 | 41 | 41 | 0.59% | 0.85% |  |
| C | 6921 | 4829 | 431 | 431 | 6.23% | 8.93% |  |
| D | 6921 | 4829 | 299 | 299 | 4.32% | 6.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 131712 | 1099.05 | 598 | 588 | 119.3 |
| A | 13 | 6 | 7843 | 60.81 | 598 | 588 | 119.3 |
| A | 13 | 254 | 7420 | 57.26 | 598 | 588 | 119.3 |
| B | 5 | 172 | 227509 | 2058.86 | 588 | 572 | 110.2 |
| B | 4 | 171 | 116481 | 1051.57 | 588 | 572 | 110.2 |
| B | 0 | 190 | 55206 | 495.66 | 588 | 572 | 110.2 |
| C | 9 | 187 | 1364908 | 10444.96 | 570 | 576 | 130.6 |
| C | 0 | 207 | 422577 | 3230.73 | 570 | 576 | 130.6 |
| C | 15 | 214 | 197867 | 1510.41 | 570 | 576 | 130.6 |
| D | 12 | 227 | 330115 | 2366.07 | 579 | 565 | 139.3 |
| D | 12 | 6 | 328367 | 2353.52 | 579 | 565 | 139.3 |
| D | 10 | 118 | 316134 | 2265.69 | 579 | 565 | 139.3 |

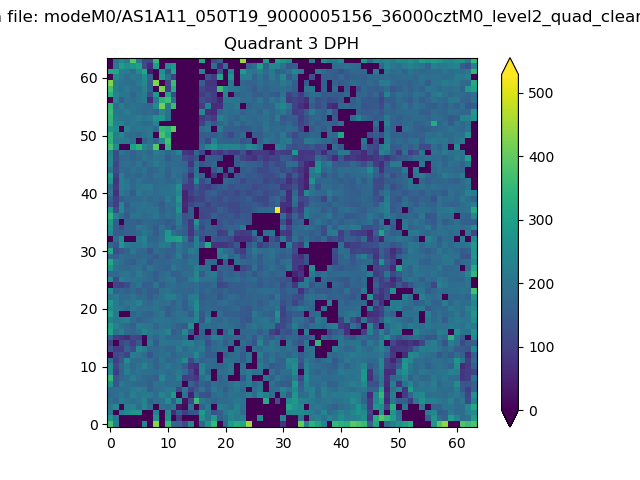

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

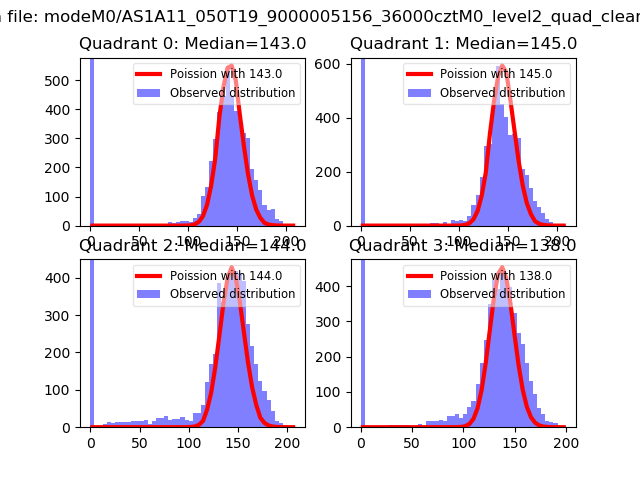

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

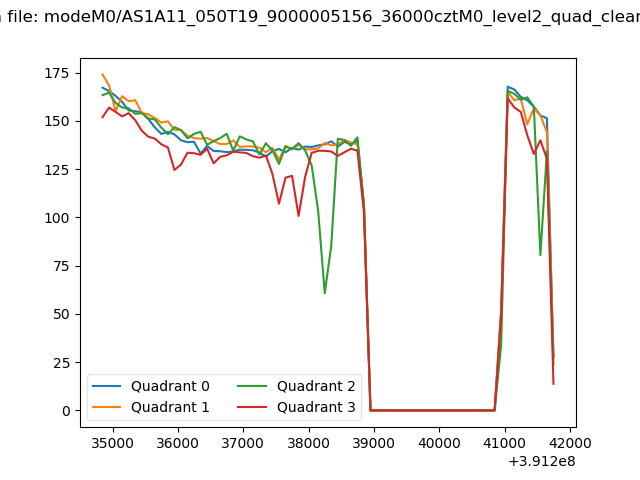

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

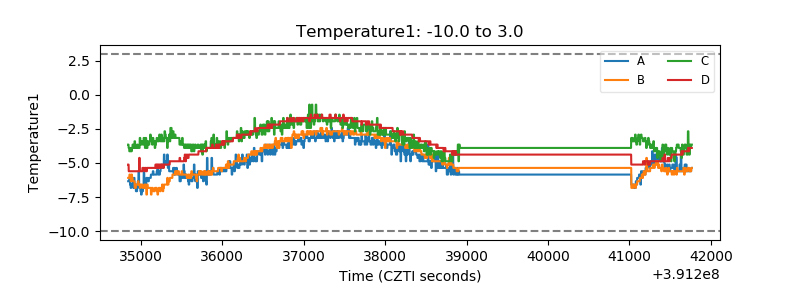

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

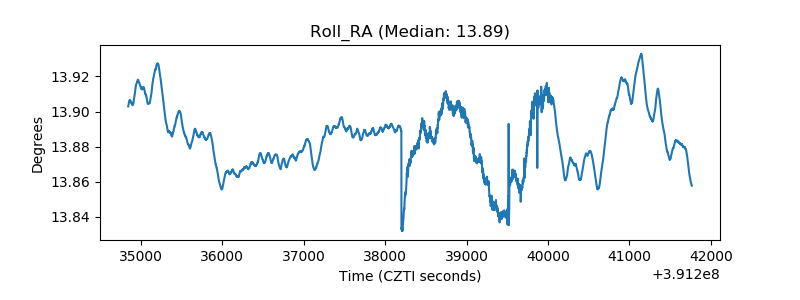

| _Roll_RA |  |

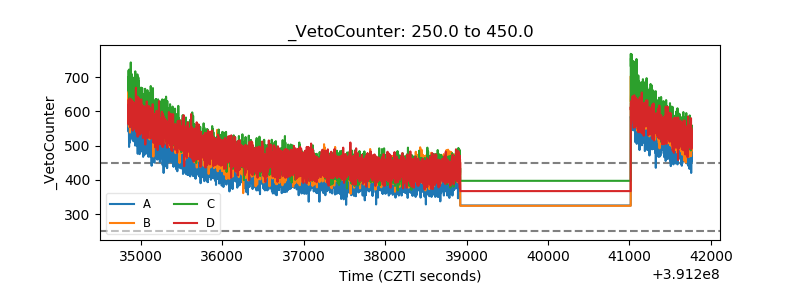

| Veto Counter |  |
