| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_069T01_9000005158_36010cztM0_level2.evt | modeM0/AS1T04_069T01_9000005158_36010cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,964,800 | 66,251,520 |
| Size | 464.4 MB | 63.2 MB |
| Events in quadrant A | 2,622,330 | 422,892 |
| Events in quadrant B | 2,816,371 | 421,793 |
| Events in quadrant C | 2,820,522 | 408,228 |
| Events in quadrant D | 6,118,688 | 370,862 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11299 | 3 |
| B | 0 | 11844 | 2 |
| C | 0 | 11658 | 2 |
| D | 0 | 22044 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5454 | 7 | 0.128346% |
| B | 5454 | 36 | 0.660066% |
| C | 5454 | 58 | 1.063440% |
| D | 5454 | 484 | 8.874221% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7127 | 5455 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7127 | 5455 | 22 | 22 | 0.31% | 0.40% |  |
| C | 7127 | 5455 | 37 | 37 | 0.52% | 0.68% |  |
| D | 7127 | 5455 | 494 | 494 | 6.93% | 9.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 166326 | 1296.32 | 630 | 617 | 127.8 |
| A | 13 | 6 | 8901 | 64.8 | 630 | 617 | 127.8 |
| A | 13 | 254 | 8573 | 62.23 | 630 | 617 | 127.8 |
| B | 0 | 213 | 105549 | 862.78 | 628 | 613 | 121.6 |
| B | 4 | 171 | 78146 | 637.47 | 628 | 613 | 121.6 |
| B | 5 | 172 | 58620 | 476.93 | 628 | 613 | 121.6 |
| C | 15 | 214 | 228308 | 1594.11 | 608 | 612 | 142.8 |
| C | 0 | 10 | 164991 | 1150.82 | 608 | 612 | 142.8 |
| C | 9 | 187 | 57156 | 395.87 | 608 | 612 | 142.8 |
| D | 12 | 227 | 3331402 | 22436.54 | 593 | 574 | 148.5 |
| D | 12 | 6 | 167461 | 1124.15 | 593 | 574 | 148.5 |
| D | 12 | 235 | 164355 | 1103.23 | 593 | 574 | 148.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

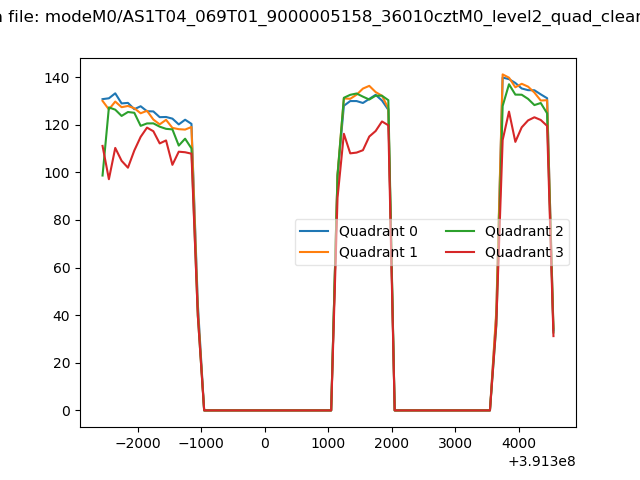

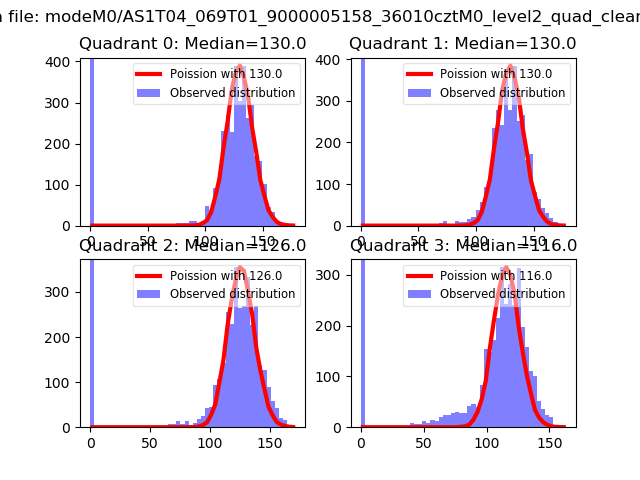

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

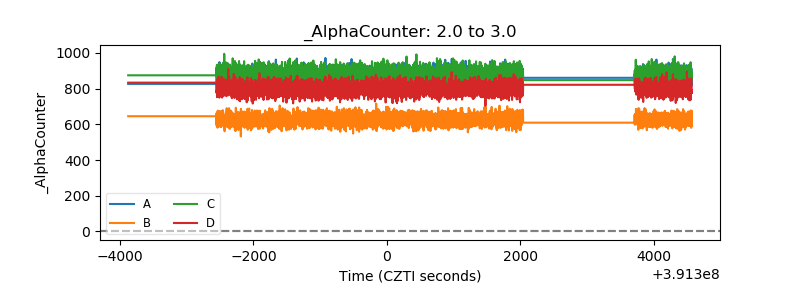

| Alpha Counter |  |

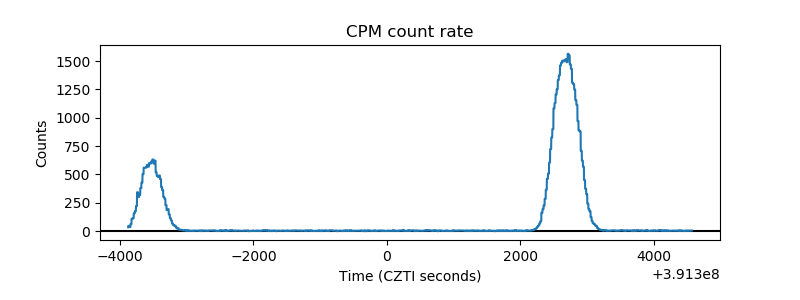

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
