| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_069T01_9000005158_36015cztM0_level2.evt | modeM0/AS1T04_069T01_9000005158_36015cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,811,200 | 49,579,200 |
| Size | 452.8 MB | 47.3 MB |
| Events in quadrant A | 2,712,443 | 296,777 |
| Events in quadrant B | 3,445,087 | 281,188 |
| Events in quadrant C | 3,890,371 | 293,921 |
| Events in quadrant D | 3,984,838 | 270,150 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10830 | 3 |
| B | 0 | 13124 | 2 |
| C | 0 | 14896 | 2 |
| D | 0 | 15119 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5112 | 7 | 0.136933% |
| B | 5112 | 255 | 4.988263% |
| C | 5112 | 223 | 4.362285% |
| D | 5112 | 219 | 4.284038% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7235 | 5113 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7235 | 5113 | 199 | 199 | 2.75% | 3.89% |  |
| C | 7234 | 5112 | 189 | 189 | 2.61% | 3.70% |  |
| D | 7235 | 5113 | 178 | 178 | 2.46% | 3.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 163680 | 1233.75 | 656 | 645 | 132.1 |
| A | 13 | 254 | 8638 | 60.49 | 656 | 645 | 132.1 |
| A | 13 | 6 | 7928 | 55.11 | 656 | 645 | 132.1 |
| B | 5 | 172 | 655791 | 5449.62 | 641 | 626 | 120.2 |
| B | 4 | 171 | 153958 | 1275.41 | 641 | 626 | 120.2 |
| B | 15 | 32 | 43163 | 353.82 | 641 | 626 | 120.2 |
| C | 9 | 187 | 1074541 | 7466.72 | 628 | 634 | 143.8 |
| C | 15 | 214 | 211828 | 1468.4 | 628 | 634 | 143.8 |
| C | 0 | 10 | 114944 | 794.78 | 628 | 634 | 143.8 |
| D | 12 | 227 | 838369 | 5428.49 | 632 | 617 | 154.3 |
| D | 12 | 6 | 388085 | 2510.72 | 632 | 617 | 154.3 |
| D | 12 | 17 | 67826 | 435.5 | 632 | 617 | 154.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

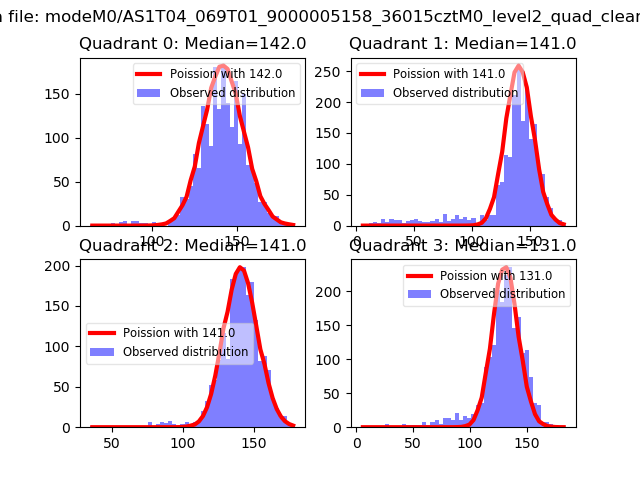

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

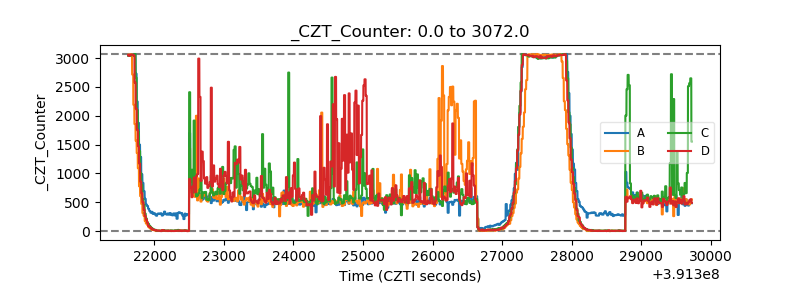

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

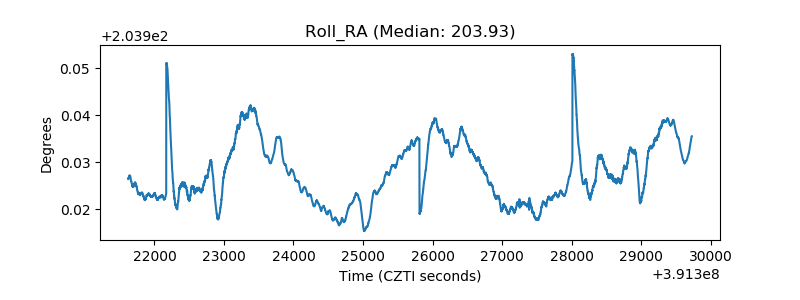

| _Roll_RA |  |

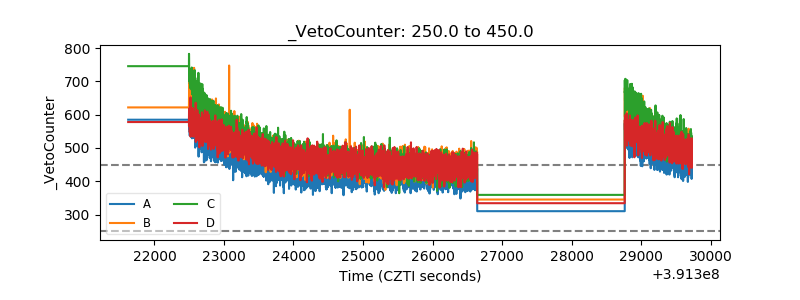

| Veto Counter |  |
