| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_069T01_9000005158_36047cztM0_level2.evt | modeM0/AS1T04_069T01_9000005158_36047cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,160,320 | 89,104,320 |
| Size | 503.7 MB | 85.0 MB |
| Events in quadrant A | 2,943,108 | 588,367 |
| Events in quadrant B | 3,392,740 | 584,910 |
| Events in quadrant C | 3,669,631 | 576,150 |
| Events in quadrant D | 5,578,567 | 525,118 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12467 | 3 |
| B | 0 | 13860 | 2 |
| C | 0 | 14585 | 2 |
| D | 0 | 20597 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6071 | 11 | 0.181189% |
| B | 6071 | 110 | 1.811893% |
| C | 6071 | 232 | 3.821446% |
| D | 6071 | 611 | 10.064240% |

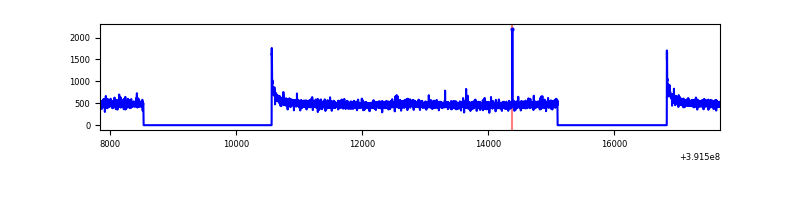

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9838 | 6073 | 1 | 1 | 0.01% | 0.02% |  |
| B | 9838 | 6073 | 75 | 75 | 0.76% | 1.23% |  |
| C | 9838 | 6073 | 171 | 171 | 1.74% | 2.82% |  |
| D | 9838 | 6073 | 639 | 639 | 6.50% | 10.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 183661 | 1268.71 | 707 | 694 | 144.2 |
| A | 13 | 6 | 13740 | 90.46 | 707 | 694 | 144.2 |
| A | 13 | 254 | 9726 | 62.63 | 707 | 694 | 144.2 |
| B | 5 | 236 | 230260 | 1719.17 | 696 | 676 | 133.5 |
| B | 0 | 190 | 173292 | 1292.58 | 696 | 676 | 133.5 |
| B | 5 | 255 | 120967 | 900.76 | 696 | 676 | 133.5 |
| C | 9 | 187 | 589435 | 3766.79 | 670 | 674 | 156.3 |
| C | 15 | 214 | 246790 | 1574.61 | 670 | 674 | 156.3 |
| C | 0 | 10 | 207933 | 1326.01 | 670 | 674 | 156.3 |
| D | 12 | 235 | 2539166 | 15560.57 | 663 | 643 | 163.1 |
| D | 12 | 17 | 96505 | 587.61 | 663 | 643 | 163.1 |
| D | 12 | 128 | 60241 | 365.32 | 663 | 643 | 163.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

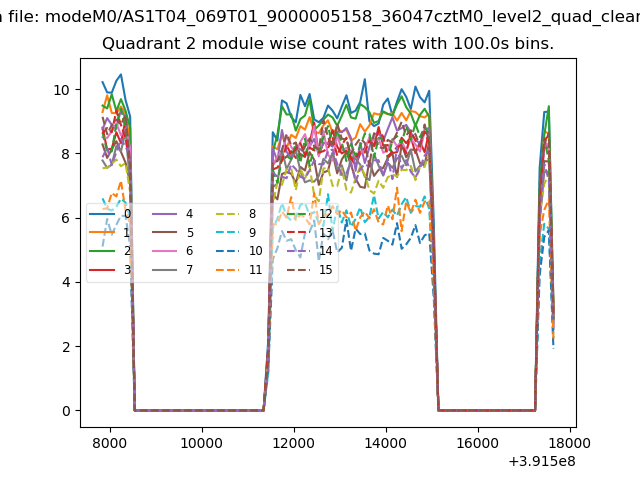

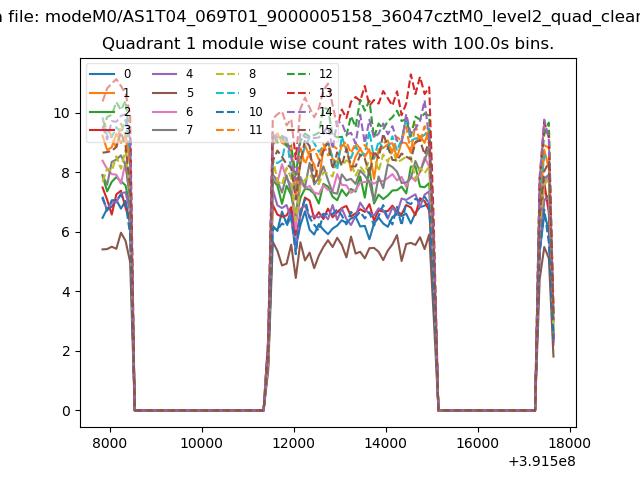

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
