| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_069T01_9000005158_36058cztM0_level2.evt | modeM0/AS1T04_069T01_9000005158_36058cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,378,560 | 47,381,760 |
| Size | 530.6 MB | 45.2 MB |
| Events in quadrant A | 2,689,073 | 281,795 |
| Events in quadrant B | 4,810,608 | 278,875 |
| Events in quadrant C | 5,398,542 | 255,161 |
| Events in quadrant D | 3,597,822 | 251,807 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10952 | 3 |
| B | 0 | 17726 | 2 |
| C | 0 | 19738 | 2 |
| D | 0 | 14057 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5224 | 5 | 0.095712% |
| B | 5224 | 566 | 10.834609% |
| C | 5224 | 722 | 13.820827% |
| D | 5224 | 251 | 4.804747% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

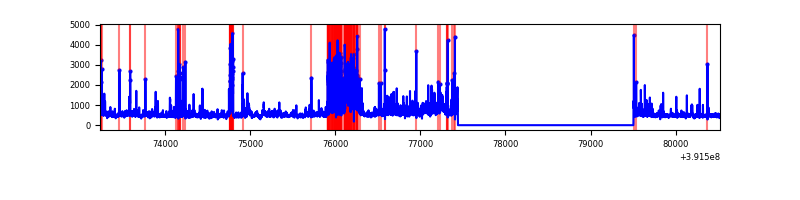

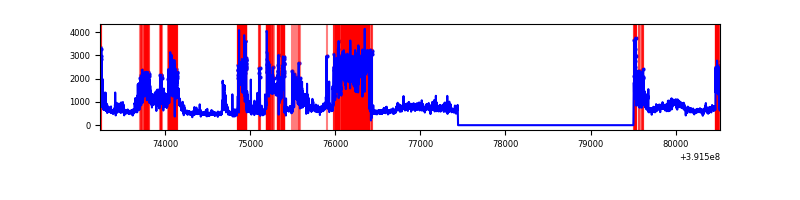

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7287 | 5225 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7287 | 5225 | 432 | 432 | 5.93% | 8.27% |  |
| C | 7287 | 5225 | 610 | 610 | 8.37% | 11.67% |  |
| D | 7287 | 5225 | 195 | 195 | 2.68% | 3.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 164871 | 1264.06 | 645 | 634 | 129.9 |
| A | 13 | 6 | 25933 | 194.72 | 645 | 634 | 129.9 |
| A | 13 | 254 | 8005 | 56.73 | 645 | 634 | 129.9 |
| B | 5 | 236 | 2065147 | 17511.76 | 626 | 611 | 117.9 |
| B | 0 | 213 | 87963 | 740.94 | 626 | 611 | 117.9 |
| B | 5 | 172 | 47326 | 396.24 | 626 | 611 | 117.9 |
| C | 9 | 187 | 2424900 | 17490.83 | 602 | 607 | 138.6 |
| C | 15 | 214 | 211040 | 1518.23 | 602 | 607 | 138.6 |
| C | 0 | 207 | 151124 | 1085.95 | 602 | 607 | 138.6 |
| D | 12 | 6 | 477855 | 3199.83 | 613 | 598 | 149.2 |
| D | 12 | 235 | 283067 | 1893.85 | 613 | 598 | 149.2 |
| D | 12 | 17 | 121420 | 810.07 | 613 | 598 | 149.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

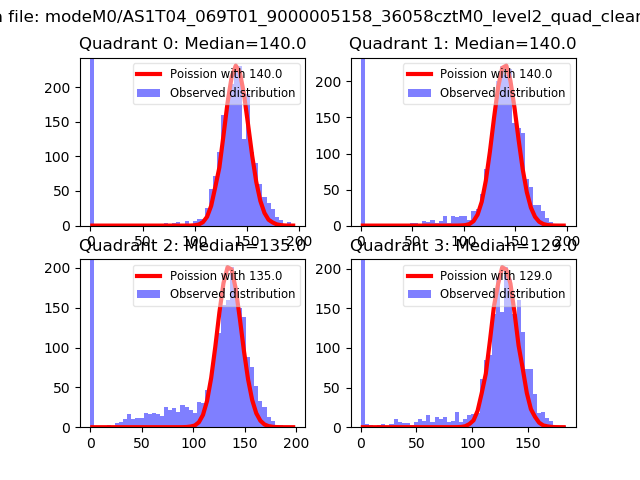

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

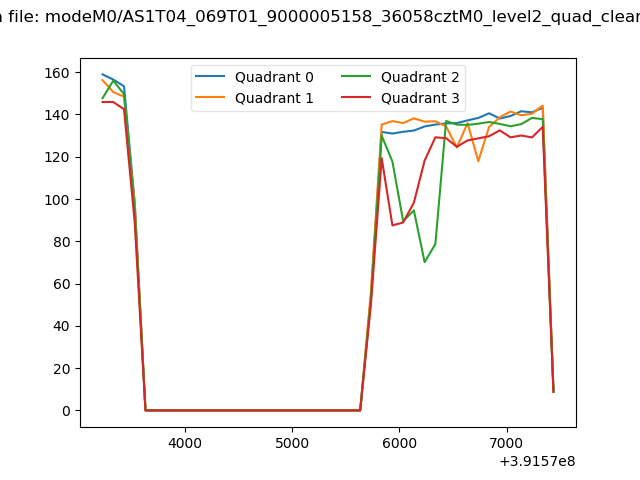

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

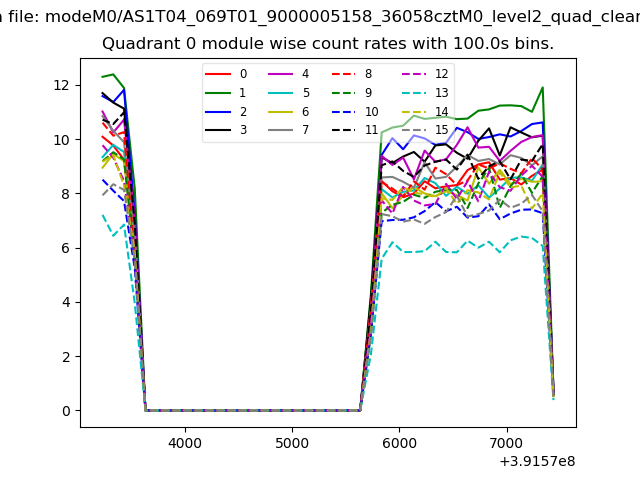

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

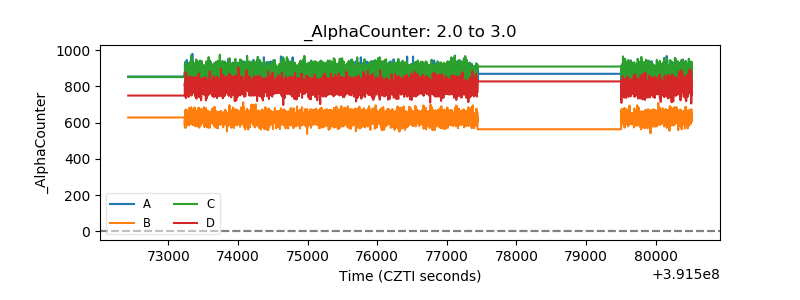

| Alpha Counter |  |

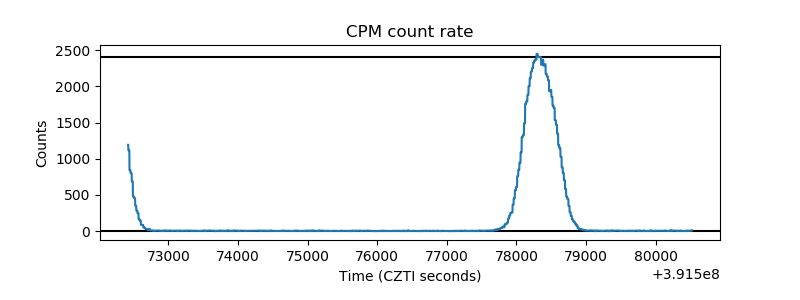

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

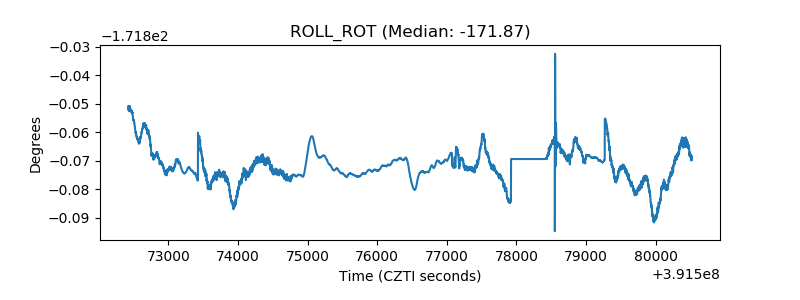

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
