| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_069T01_9000005158_36059cztM0_level2.evt | modeM0/AS1T04_069T01_9000005158_36059cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,539,840 | 46,615,680 |
| Size | 505.0 MB | 44.5 MB |
| Events in quadrant A | 2,606,452 | 274,384 |
| Events in quadrant B | 4,683,179 | 276,722 |
| Events in quadrant C | 4,405,214 | 263,278 |
| Events in quadrant D | 3,996,852 | 238,882 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10631 | 3 |
| B | 0 | 17317 | 2 |
| C | 0 | 16714 | 2 |
| D | 0 | 15159 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5096 | 5 | 0.098116% |
| B | 5096 | 471 | 9.242543% |
| C | 5096 | 325 | 6.377551% |
| D | 5096 | 414 | 8.124019% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

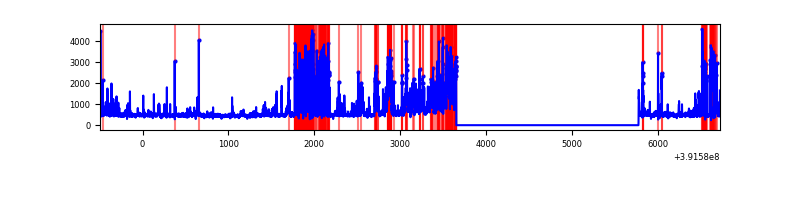

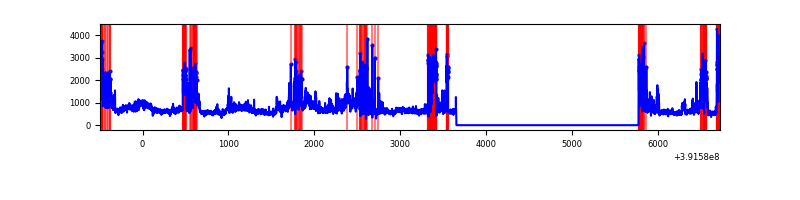

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7218 | 5097 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7218 | 5097 | 313 | 313 | 4.34% | 6.14% |  |
| C | 7217 | 5096 | 246 | 246 | 3.41% | 4.83% |  |
| D | 7218 | 5096 | 350 | 350 | 4.85% | 6.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 167152 | 1313.21 | 627 | 616 | 126.8 |
| A | 13 | 6 | 10147 | 75.16 | 627 | 616 | 126.8 |
| A | 13 | 254 | 7215 | 52.04 | 627 | 616 | 126.8 |
| B | 5 | 236 | 2044115 | 17609.39 | 612 | 595 | 116.0 |
| B | 0 | 213 | 102959 | 882.09 | 612 | 595 | 116.0 |
| B | 0 | 229 | 40268 | 341.87 | 612 | 595 | 116.0 |
| C | 9 | 187 | 1244613 | 9000.31 | 600 | 605 | 138.2 |
| C | 0 | 207 | 250559 | 1808.4 | 600 | 605 | 138.2 |
| C | 15 | 214 | 210984 | 1522.08 | 600 | 605 | 138.2 |
| D | 12 | 235 | 598503 | 4160.68 | 590 | 574 | 143.7 |
| D | 12 | 6 | 466797 | 3244.2 | 590 | 574 | 143.7 |
| D | 12 | 17 | 301824 | 2096.24 | 590 | 574 | 143.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

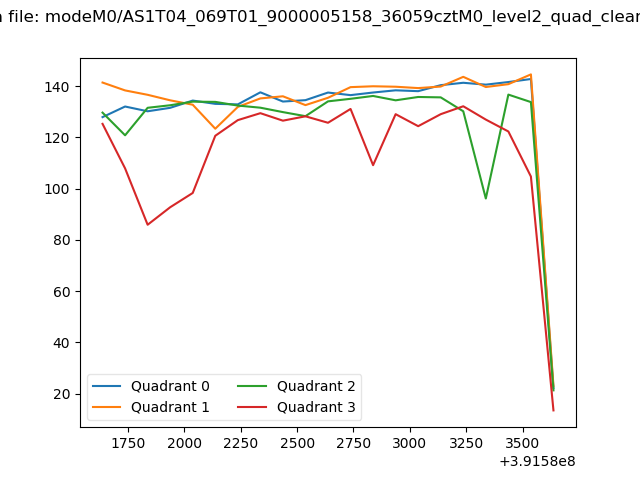

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

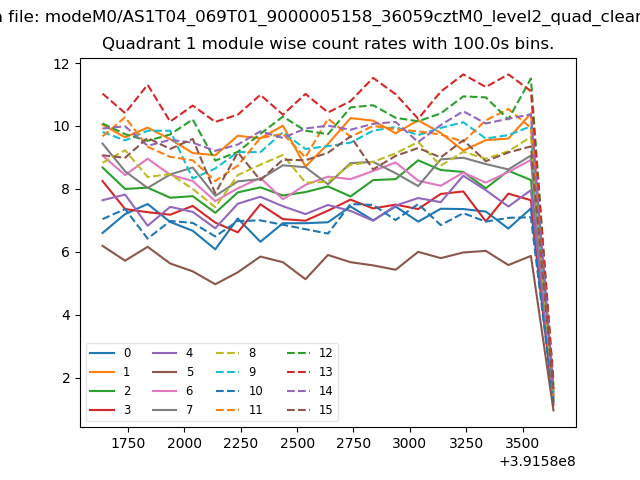

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

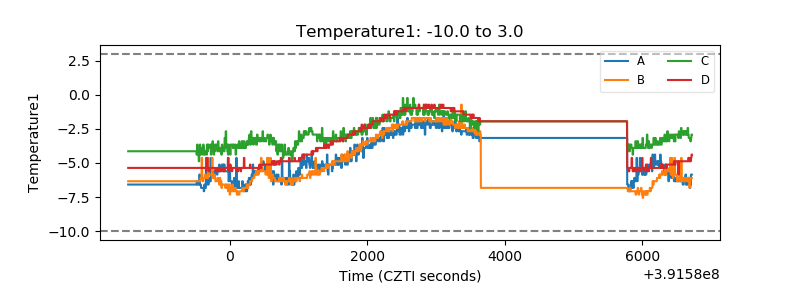

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

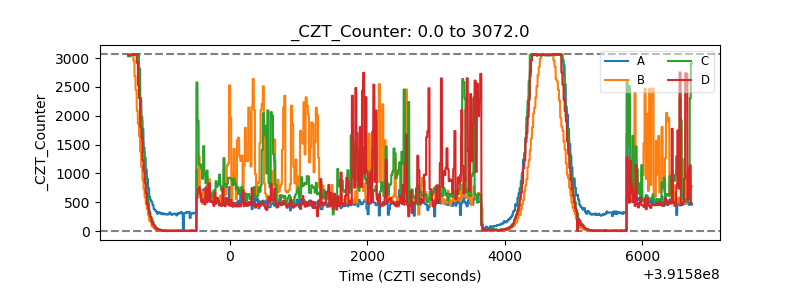

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

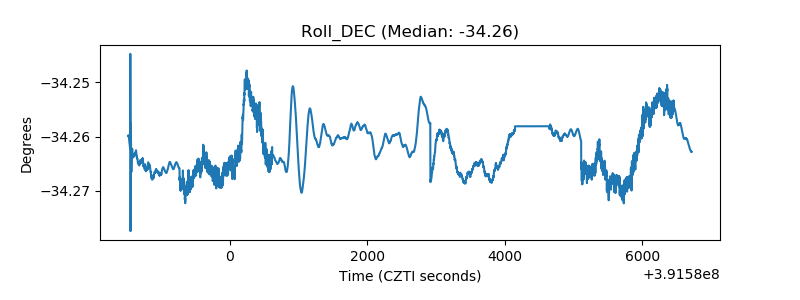

| _Roll_DEC |  |

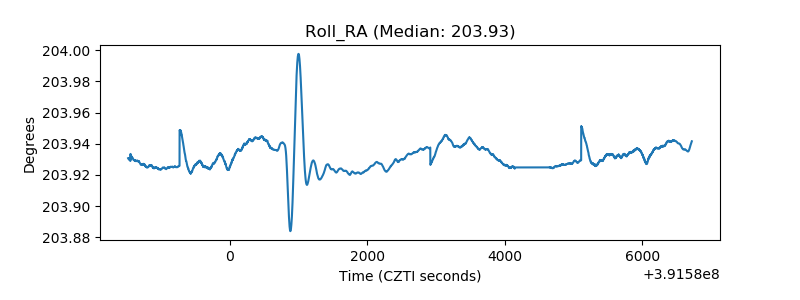

| _Roll_RA |  |
| Veto Counter |  |
