| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_069T01_9000005158_36102cztM0_level2.evt | modeM0/AS1T04_069T01_9000005158_36102cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,191,680 | 46,978,560 |
| Size | 448.4 MB | 44.8 MB |
| Events in quadrant A | 2,759,999 | 276,075 |
| Events in quadrant B | 3,508,000 | 275,995 |
| Events in quadrant C | 3,787,538 | 267,039 |
| Events in quadrant D | 3,834,456 | 241,324 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11235 | 3 |
| B | 0 | 13691 | 2 |
| C | 0 | 14419 | 2 |
| D | 0 | 14791 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 35 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5155 | 10 | 0.193986% |
| B | 5155 | 188 | 3.646945% |
| C | 5155 | 186 | 3.608147% |
| D | 5155 | 438 | 8.496605% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7278 | 5156 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7278 | 5156 | 134 | 134 | 1.84% | 2.60% |  |
| C | 7278 | 5156 | 160 | 160 | 2.20% | 3.10% |  |
| D | 7278 | 5156 | 384 | 384 | 5.28% | 7.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 169350 | 1330.17 | 630 | 618 | 126.9 |
| A | 15 | 223 | 143989 | 1130.24 | 630 | 618 | 126.9 |
| A | 13 | 6 | 10276 | 76.14 | 630 | 618 | 126.9 |
| B | 5 | 172 | 388548 | 3284.7 | 623 | 607 | 118.1 |
| B | 5 | 236 | 289838 | 2448.92 | 623 | 607 | 118.1 |
| B | 5 | 255 | 199507 | 1684.08 | 623 | 607 | 118.1 |
| C | 0 | 207 | 581798 | 4147.9 | 607 | 611 | 140.1 |
| C | 1 | 23 | 376428 | 2682.19 | 607 | 611 | 140.1 |
| C | 15 | 214 | 229851 | 1636.07 | 607 | 611 | 140.1 |
| D | 1 | 52 | 576897 | 4050.31 | 582 | 567 | 142.3 |
| D | 10 | 118 | 421344 | 2957.12 | 582 | 567 | 142.3 |
| D | 12 | 6 | 235670 | 1652.25 | 582 | 567 | 142.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

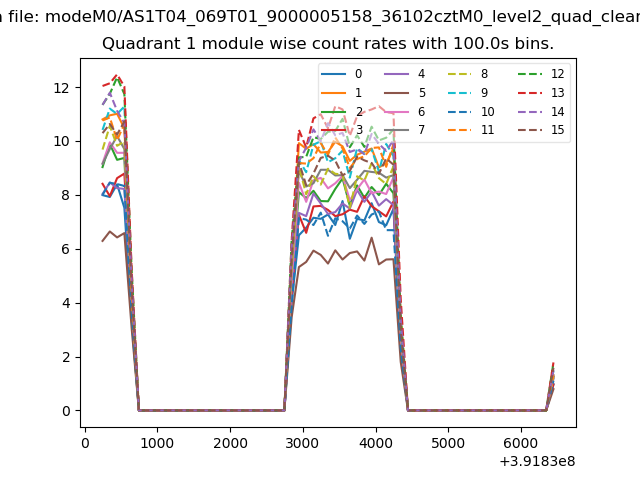

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

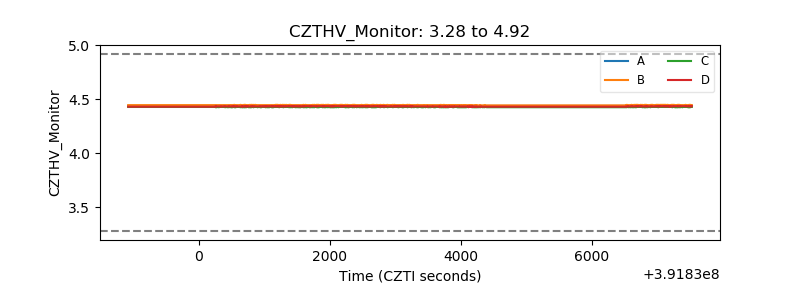

| CZT HV Monitor |  |

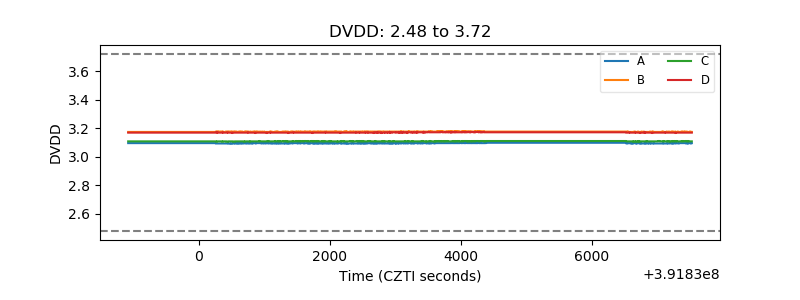

| D_VDD |  |

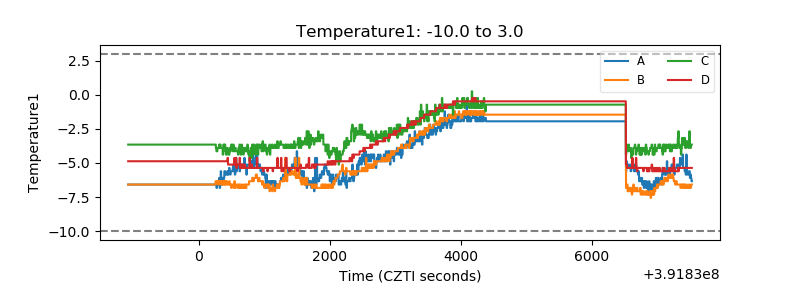

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

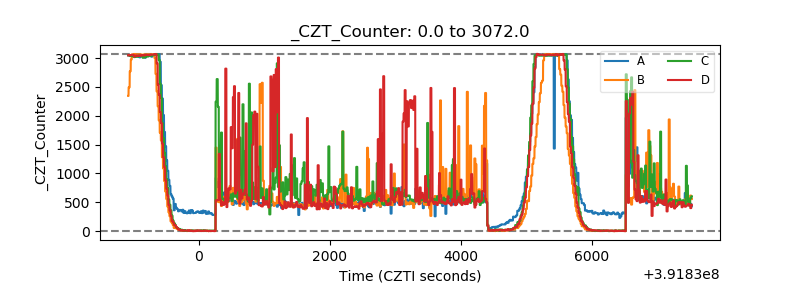

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

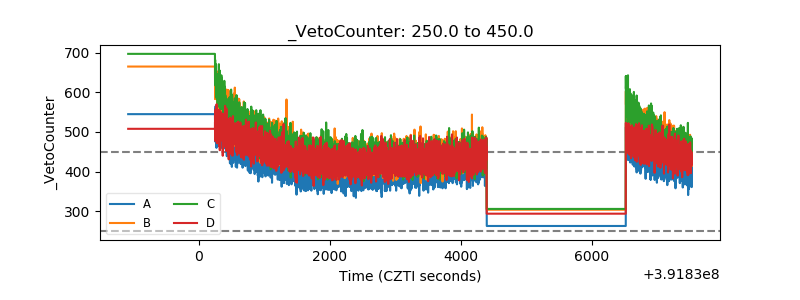

| Veto Counter |  |
