| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_069T01_9000005158_36105cztM0_level2.evt | modeM0/AS1T04_069T01_9000005158_36105cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,798,720 | 68,601,600 |
| Size | 467.1 MB | 65.4 MB |
| Events in quadrant A | 2,735,447 | 438,150 |
| Events in quadrant B | 3,653,467 | 435,286 |
| Events in quadrant C | 3,032,646 | 430,961 |
| Events in quadrant D | 5,027,165 | 376,039 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11614 | 3 |
| B | 0 | 14416 | 2 |
| C | 0 | 12326 | 2 |
| D | 0 | 18765 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 37 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5668 | 5 | 0.088215% |
| B | 5668 | 205 | 3.616796% |
| C | 5668 | 47 | 0.829217% |
| D | 5668 | 773 | 13.637968% |

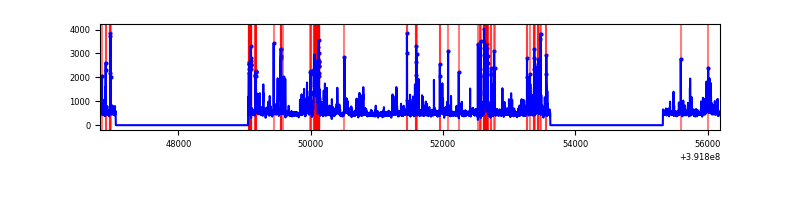

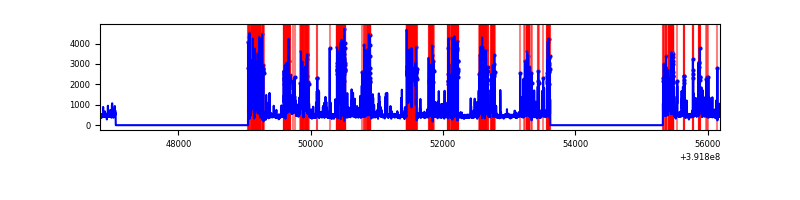

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9373 | 5670 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9373 | 5670 | 122 | 122 | 1.30% | 2.15% |  |
| C | 9373 | 5670 | 31 | 31 | 0.33% | 0.55% |  |
| D | 9373 | 5670 | 674 | 674 | 7.19% | 11.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 187457 | 1408.85 | 654 | 641 | 132.6 |
| A | 8 | 144 | 15639 | 113.11 | 654 | 641 | 132.6 |
| A | 3 | 137 | 6817 | 46.58 | 654 | 641 | 132.6 |
| B | 5 | 236 | 480884 | 3865.5 | 644 | 625 | 124.2 |
| B | 5 | 172 | 439482 | 3532.27 | 644 | 625 | 124.2 |
| B | 0 | 190 | 53676 | 427.0 | 644 | 625 | 124.2 |
| C | 15 | 214 | 257609 | 1740.85 | 633 | 638 | 147.6 |
| C | 0 | 207 | 173822 | 1173.24 | 633 | 638 | 147.6 |
| C | 0 | 10 | 93318 | 627.86 | 633 | 638 | 147.6 |
| D | 1 | 52 | 1622865 | 11092.76 | 592 | 575 | 146.2 |
| D | 2 | 250 | 556843 | 3803.6 | 592 | 575 | 146.2 |
| D | 12 | 6 | 299003 | 2040.57 | 592 | 575 | 146.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

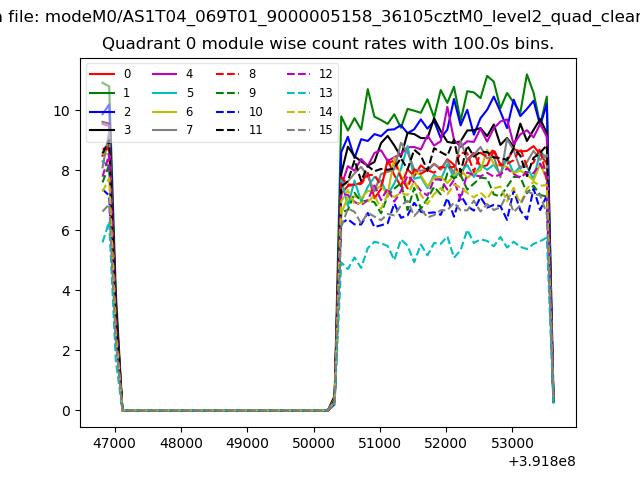

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

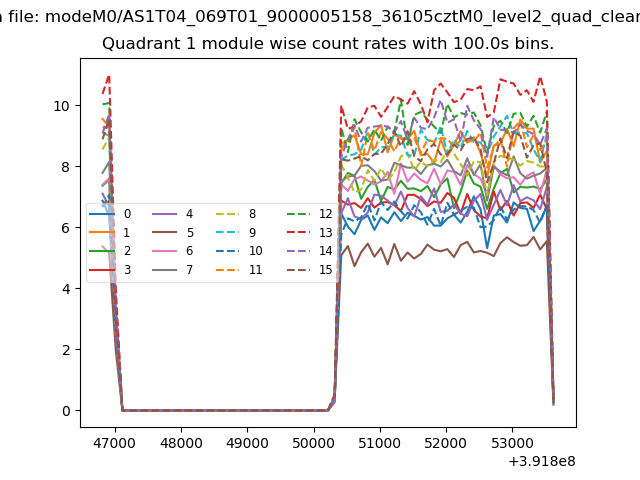

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

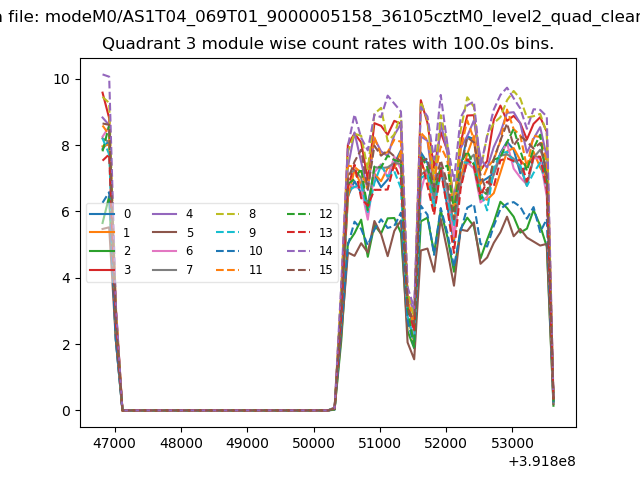

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

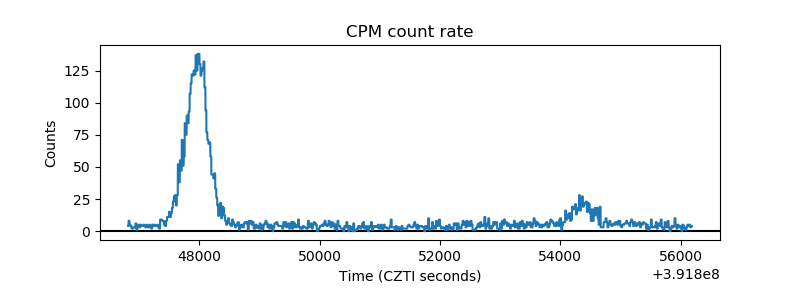

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

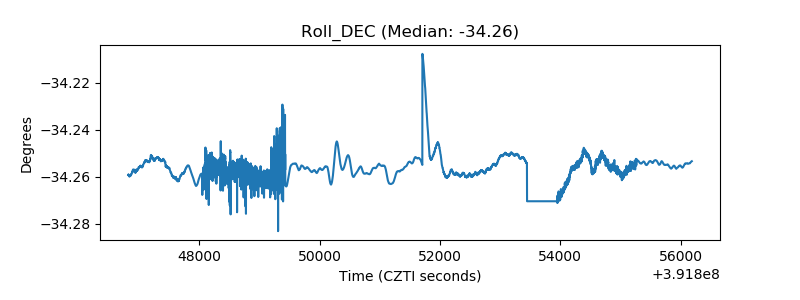

| _Roll_DEC |  |
| _Roll_RA |  |

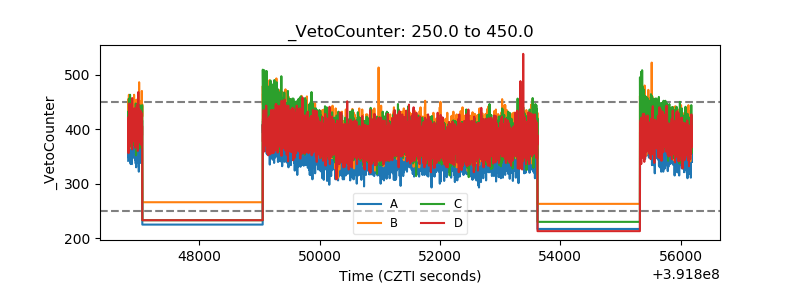

| Veto Counter |  |
